Plan Your Edge Vision Integration

Understand how CamThink hardware and software fit into your system, choose an integration path, and start technical validation.

Open Docs

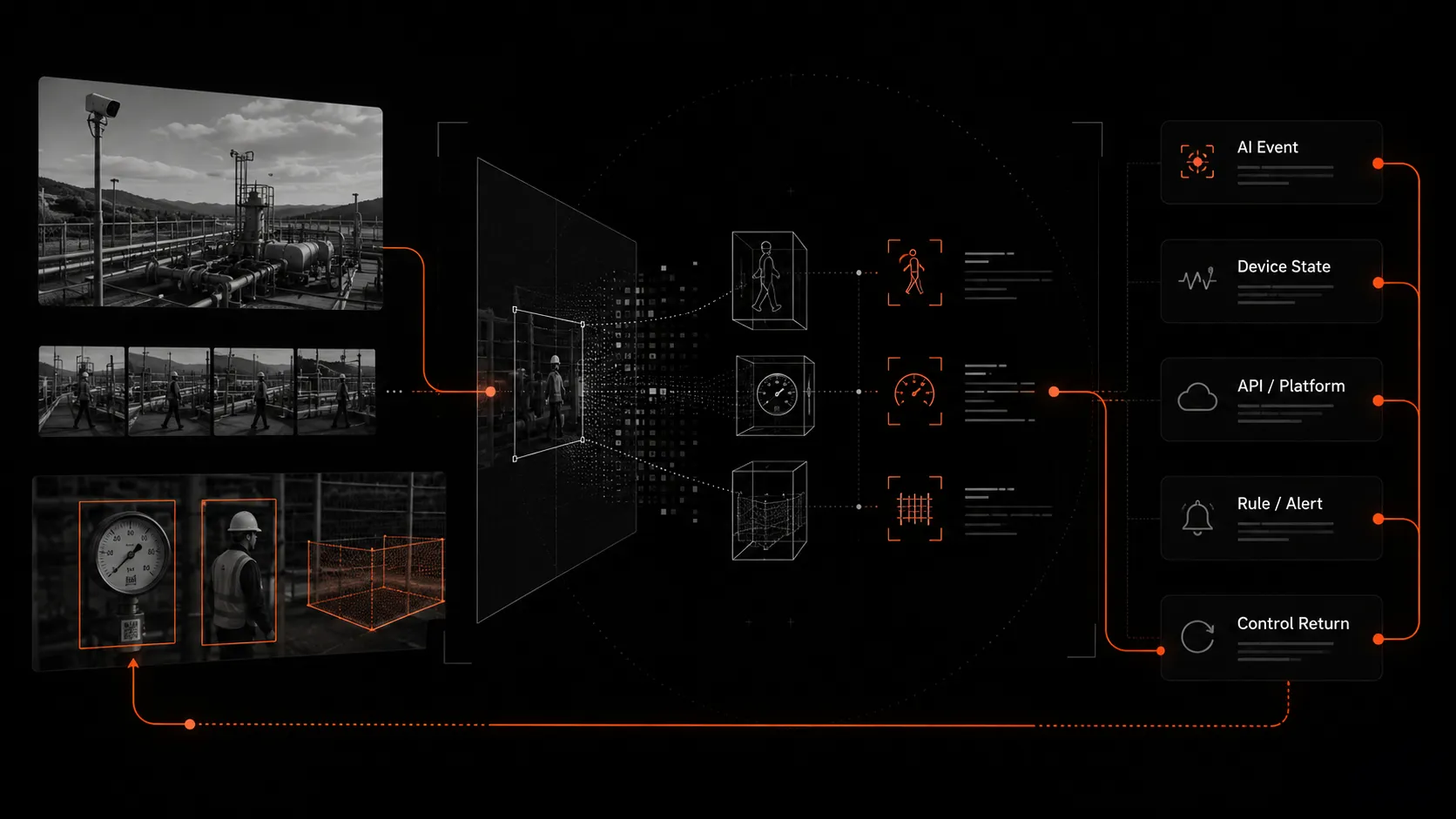

Industrial visual inputs processed at the edge into AI events, device state, platform APIs, alerts, and control actions.

System Architecture

See How the System Fits Together

CamThink products place capture, compute, and software at different points in an edge vision system. Use only the layers your architecture needs.

At the Visual Source

Capture and optional inference happen where the image is created.

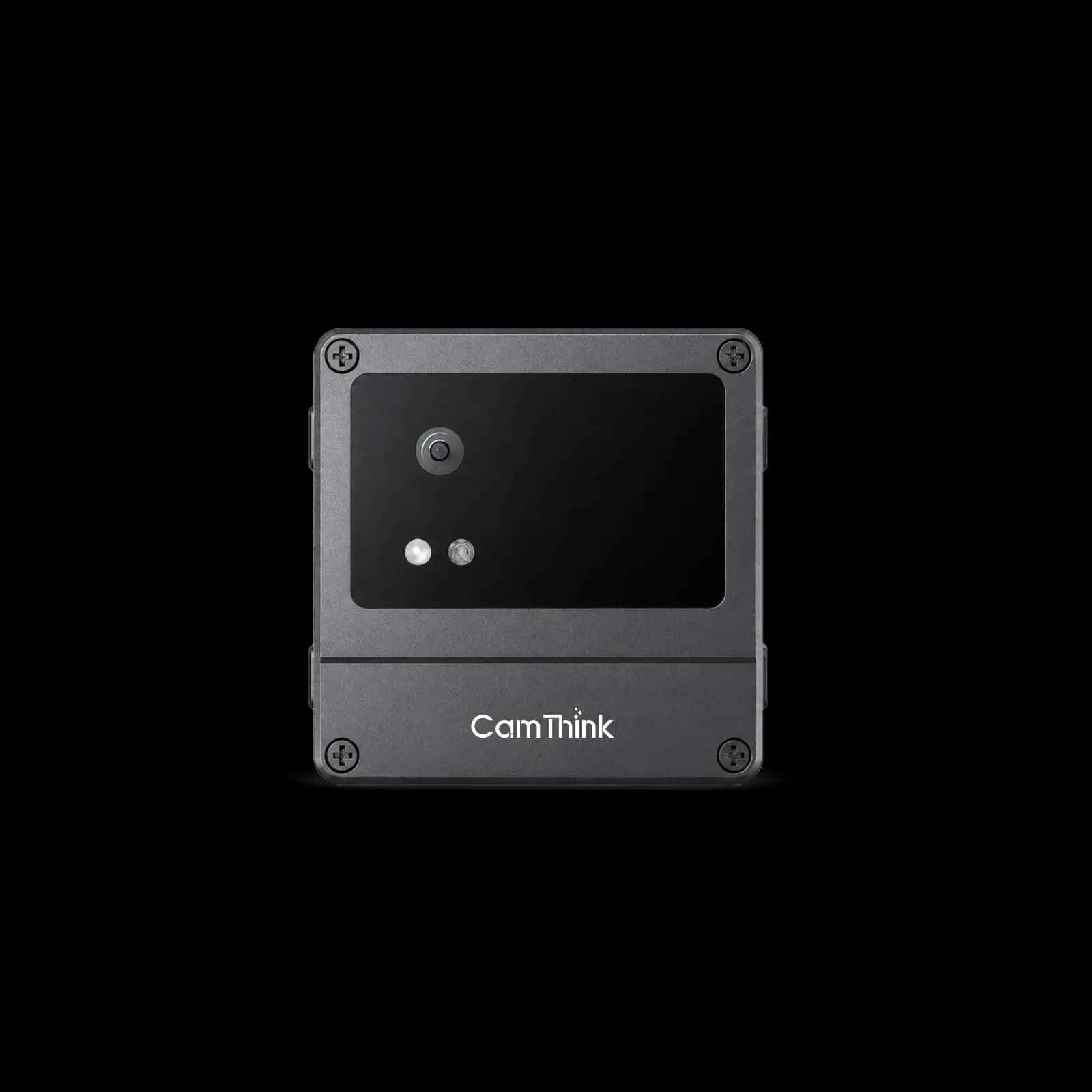

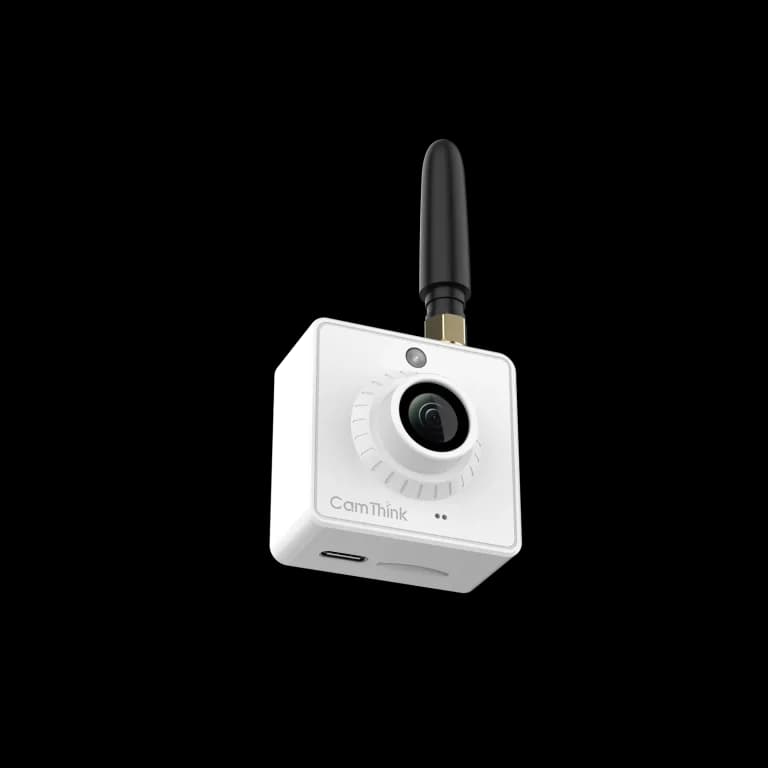

NE101Still-image capture

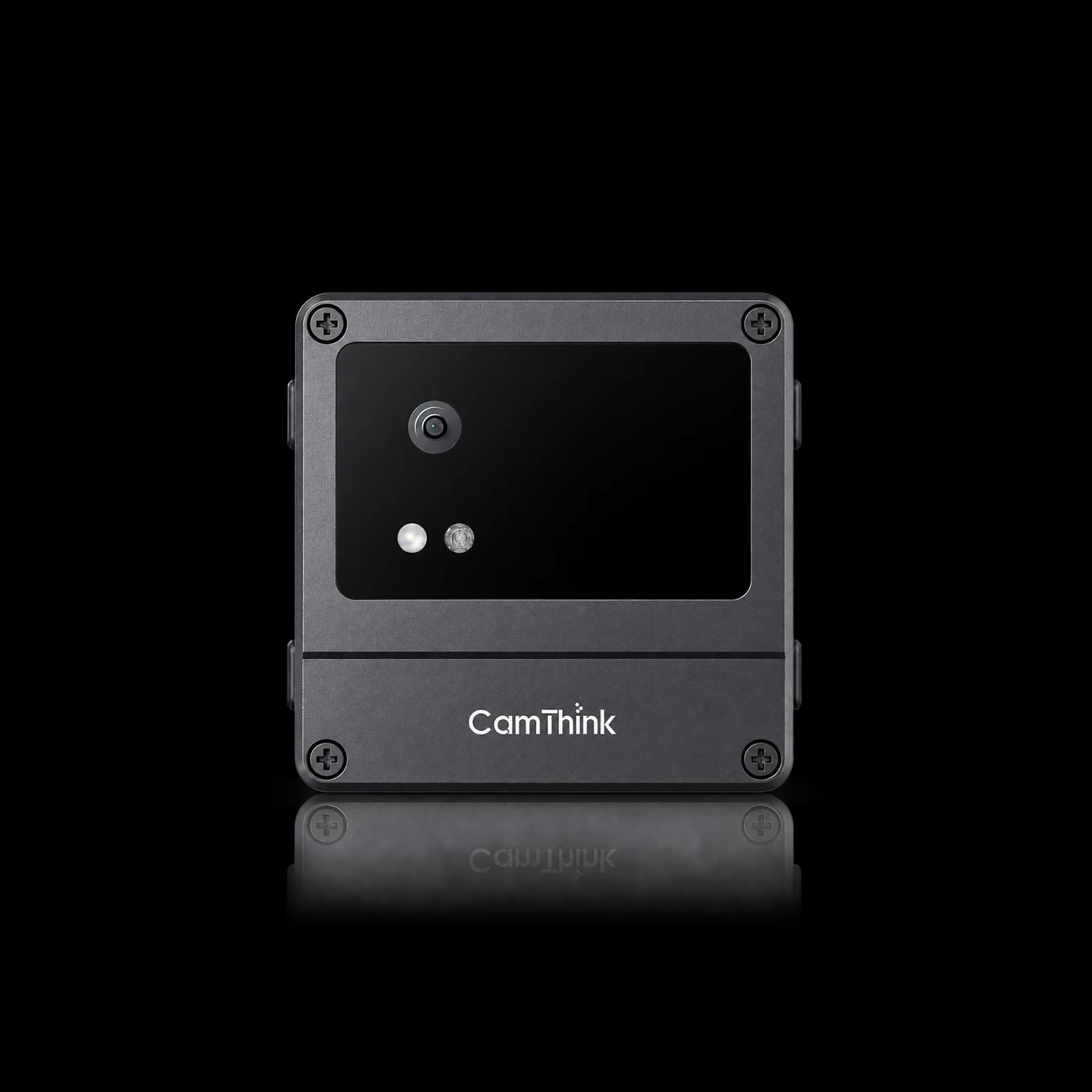

NE301Capture and event inference

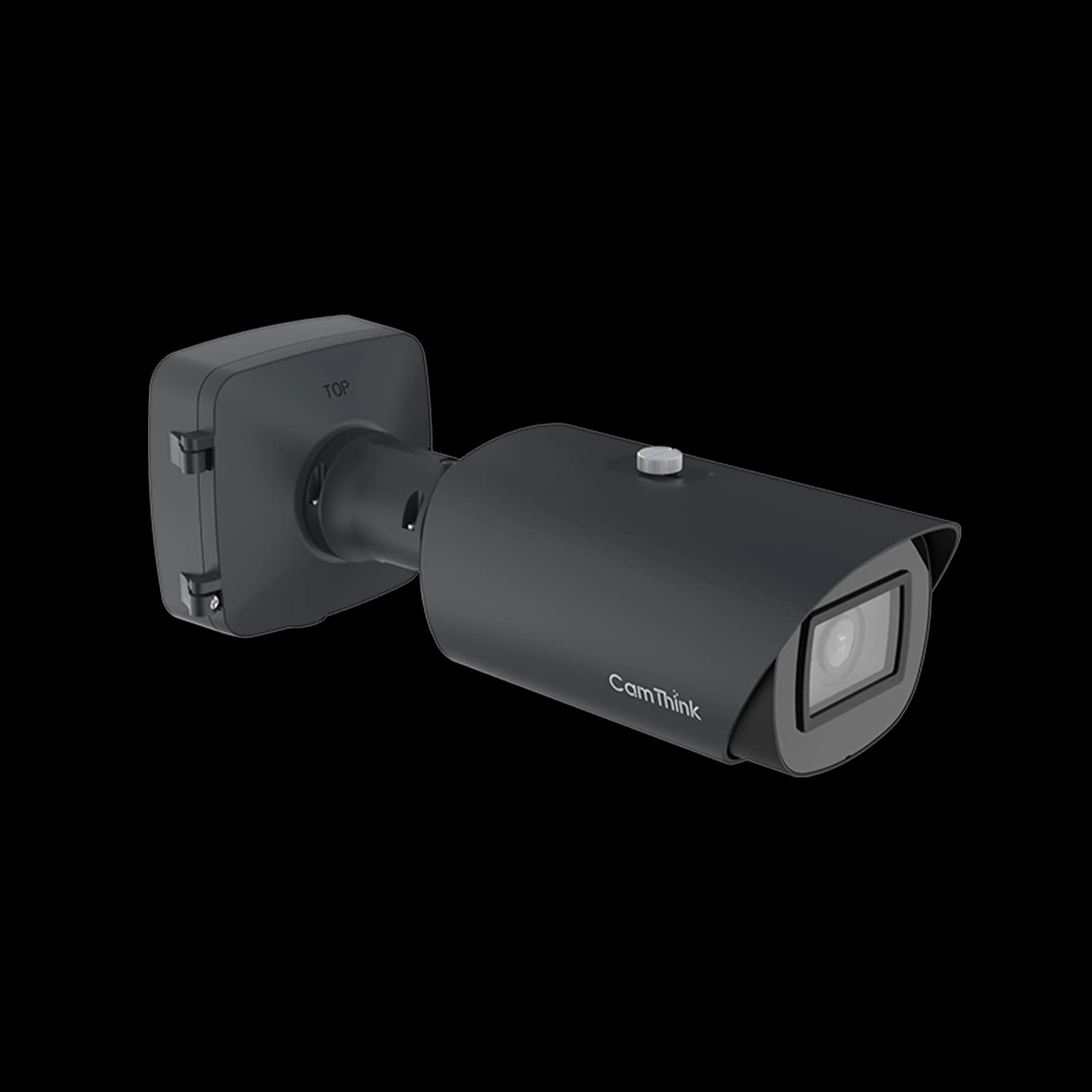

NE503Continuous on-camera video AI

At the Site

Shared compute handles multiple cameras and heavier workloads.

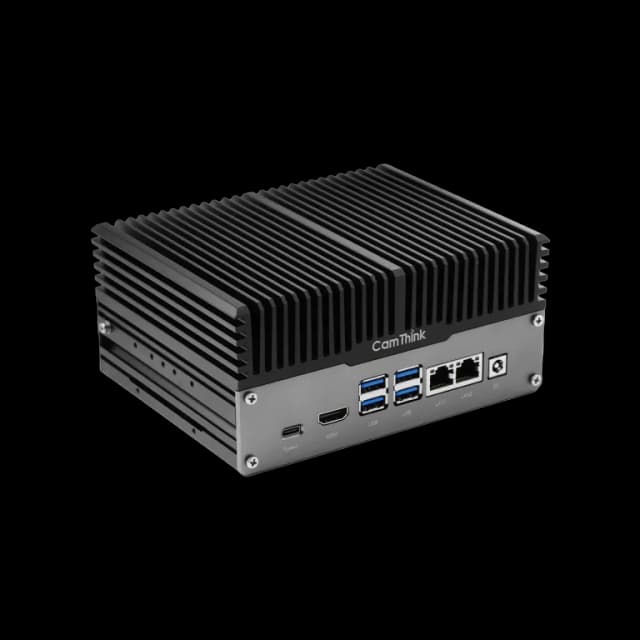

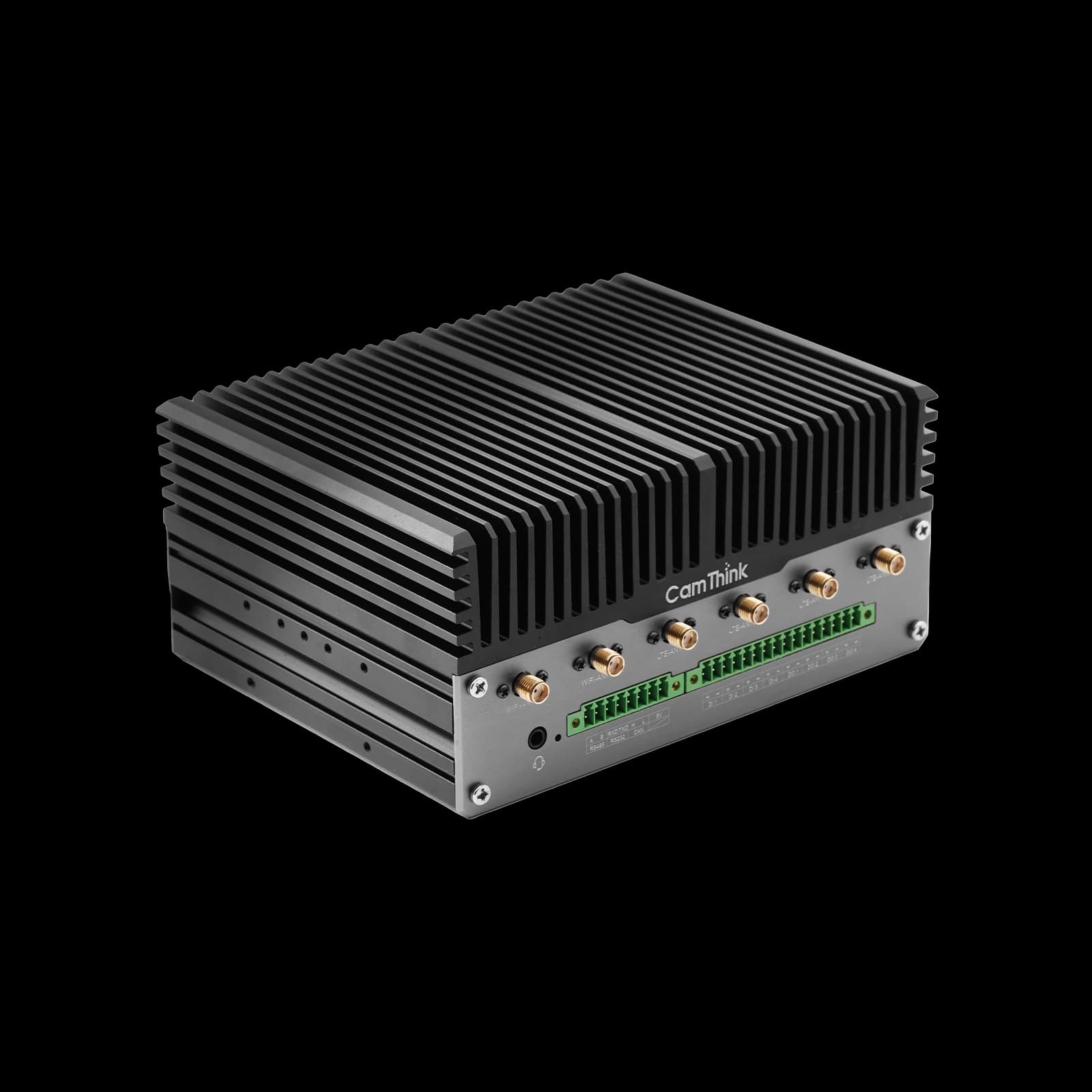

NG4500Multi-camera edge compute

Across the System

Connect devices, rules, APIs, dashboards, and external services.

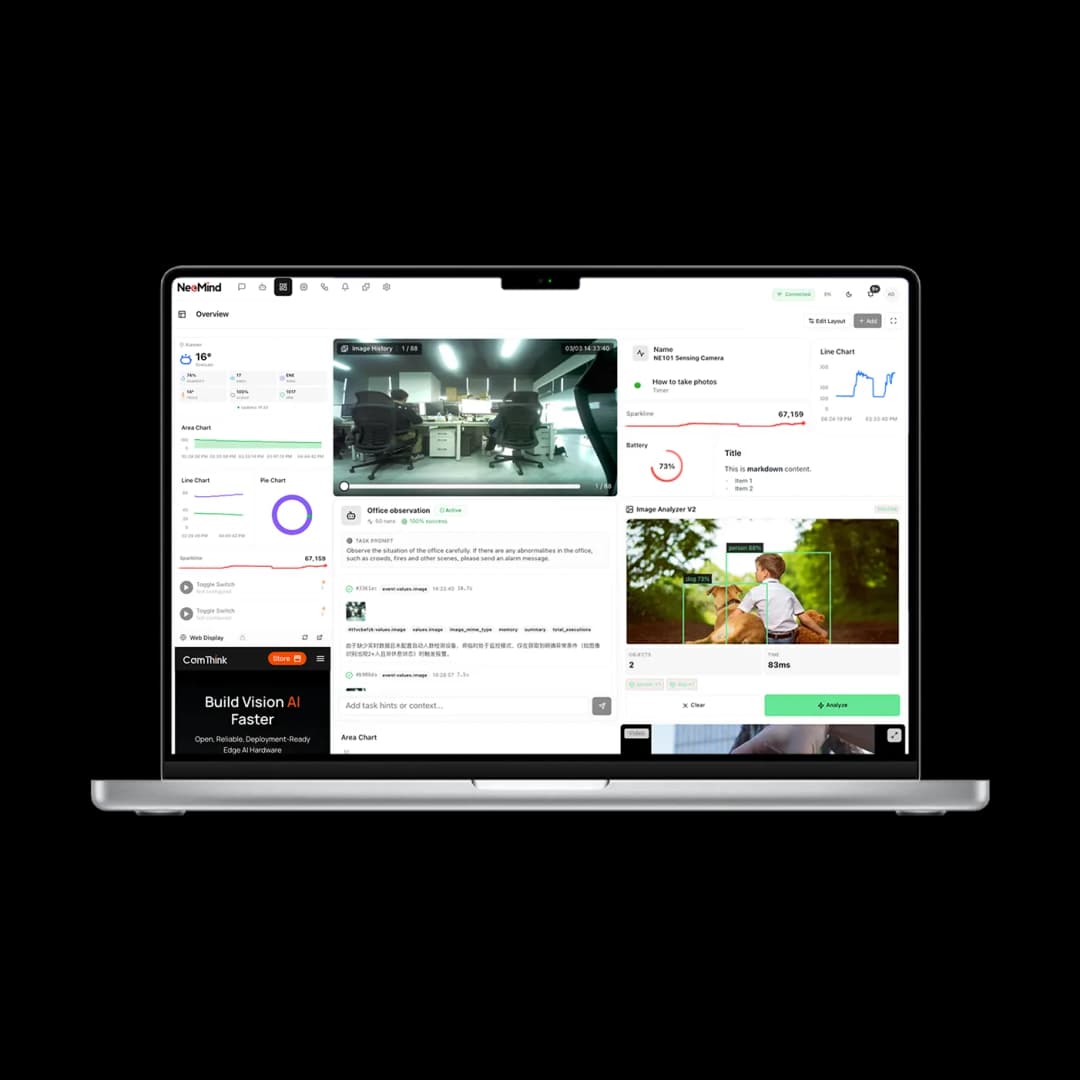

NeoMindRuns on NG4500 or another supported computer

Hardware paths can connect directly to your platform. Add NeoMind when the deployment needs a local software and operational layer.

Imaging Planning

Match the Camera to the Scene

Detection targets, installation distance, field of view, mounting position, and lighting conditions shape the imaging setup for each deployment.

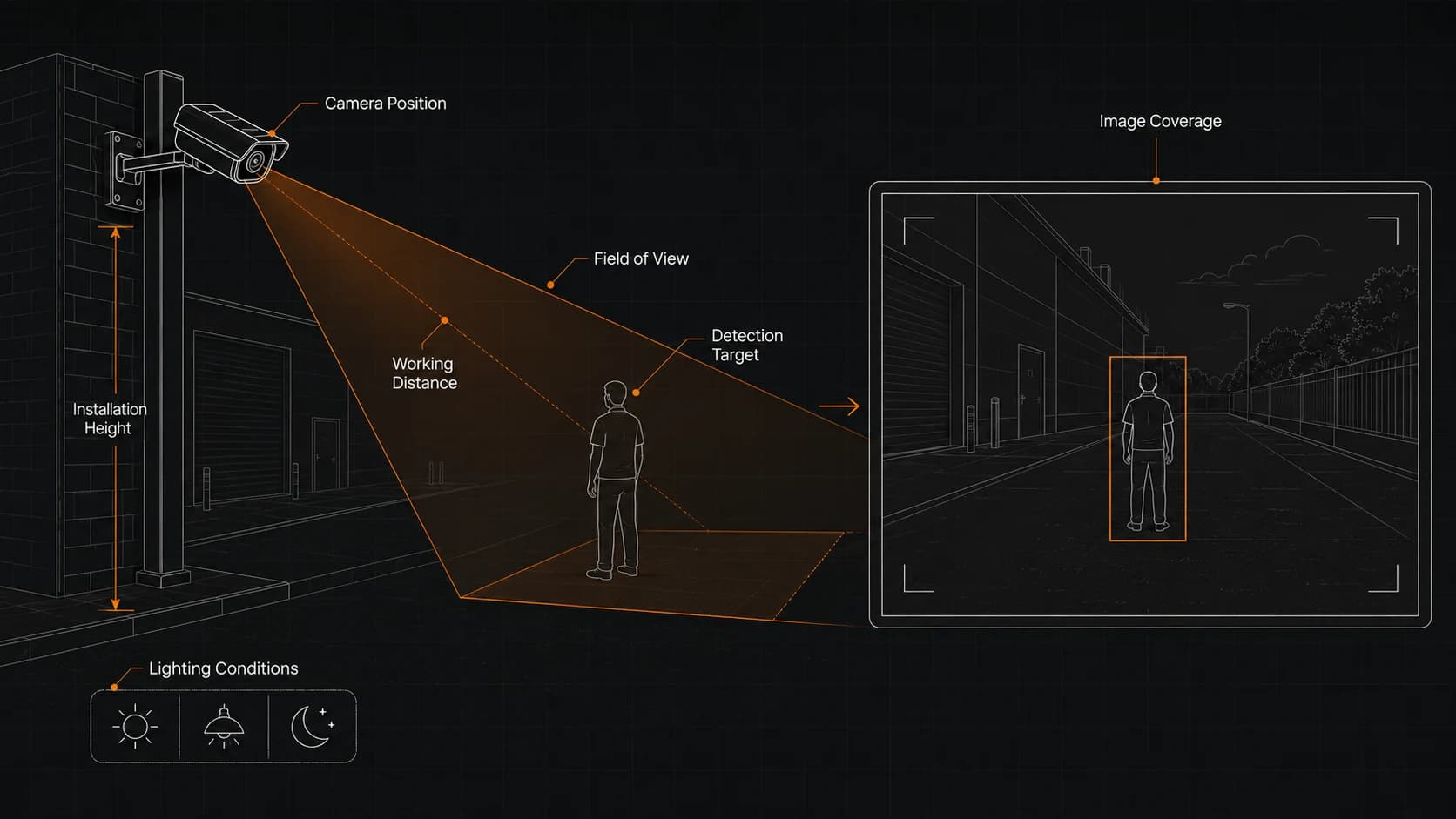

Industrial camera mounted above a detection area, showing installation height, working distance, field of view, lighting conditions, target position, and image coverage. — 1Camera Position
2Mount Height
3FOV
4Distance
5Target
6Lighting

Integration Paths

Choose Where the Workload Runs

Start with the job the system must perform. The recommended product and integration boundary follow from that decision.

NE101

Capture Scheduled Images at Remote Sites

Choose this path when power, bandwidth, or cabling is limited and the application needs still images instead of continuous video.

Workload Location: At the camera, active only when needed
System Result: JPEG image and device metadata
Choose It When: Power, bandwidth, or cabling is limited.

Open NE101 Quick Start

Schedule or Trigger

NE101 Capture

Image Workflow

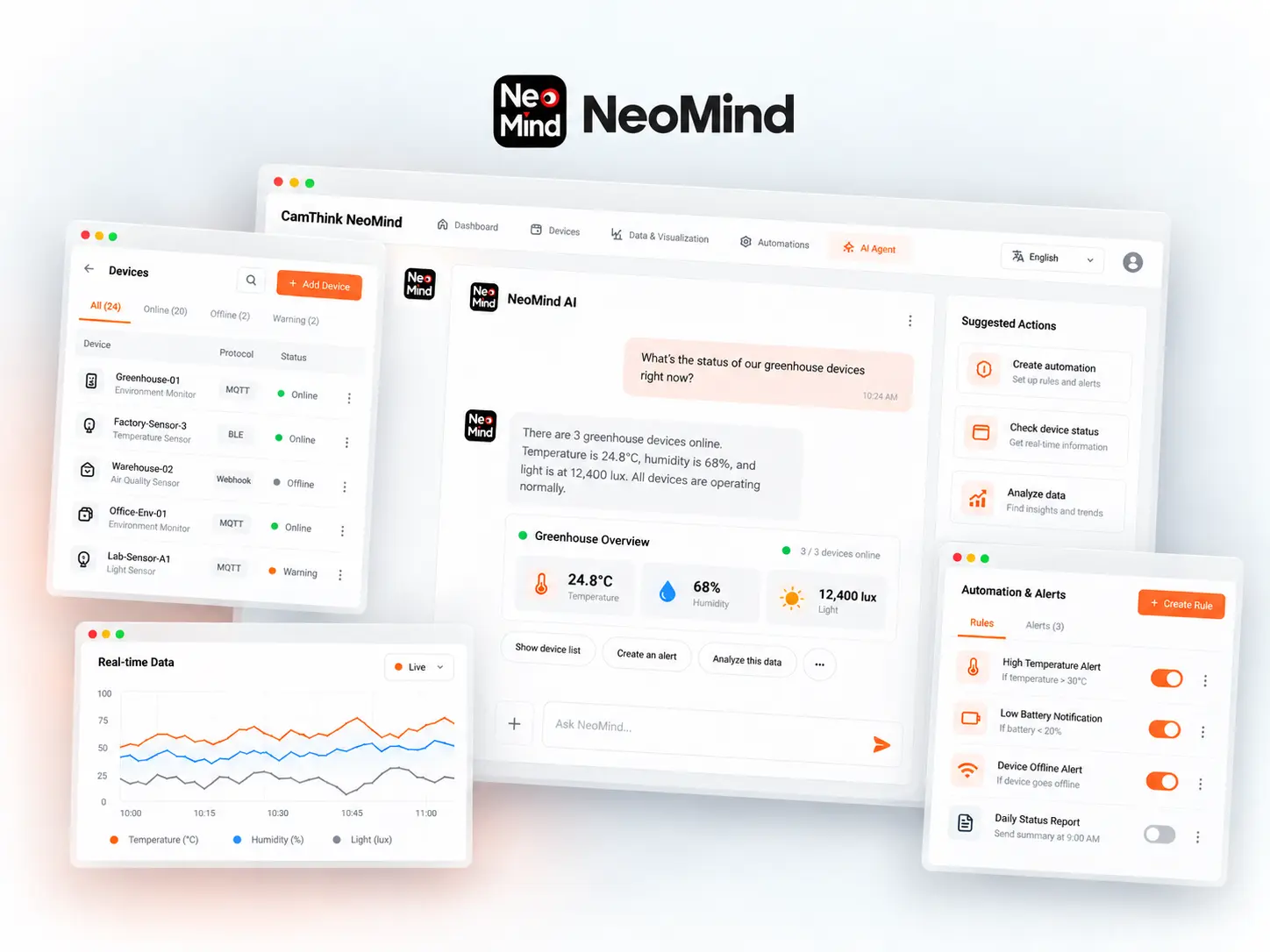

Software LayerNeoMind

Connect devices, rules, APIs, dashboards, and local operations across any CamThink hardware path.

Open NeoMind Quick Start

Data Paths

Map Data through the System

Choose a data type to see where it originates, how it is handled at the edge, how it is handed off, and where it is consumed.

OriginNE101 or NE301

Scheduled or triggered still image

ProcessingCapture & Package

Image and device metadata prepared locally

TransportMQTT / MQTTS or Webhook

Selected by product and receiving system

ConsumerYour Platform or NeoMind

Store, inspect, or automate

Use This Path When

The application needs still images without maintaining a continuous video stream.

Integration Interfaces

Choose the Interface by Task

Choose a task to see the matching interface, supported products, and technical references.

Interface For This Task

MQTT / MQTTS or Webhook

Receive Images and Capture Reports

Receive scheduled or triggered images with the metadata needed by an external application.

Products: NE101 and NE301
Direction: Outbound
Carries: JPEG image, capture metadata, and device state

NE101 Image Reporting Quick Start NE301 MQTT Reporting Guide

Start with a Result You Can Verify

Choose one path, prepare only what it requires, and continue to the Wiki or GitHub for implementation.

Capture an Image and Verify the Device Path

Configure a supported trigger, confirm a valid still image, and connect the uplink used by the final product configuration.

Open Quick Start View Firmware

Goal: A repeatable image reaches the selected destination with device metadata.
Prepare: Supported hardware, power, firmware toolchain, and network path.
Expected Result: One valid JPEG image and its device metadata are available to the receiving application.

Downloads

Download the Files You Need

Find product documents, open hardware files, SDKs, and published compliance resources without searching across the site.

PDF

NeoEyes NE101 Product Brochure

Download

PDF

NeoEyes NE301 Product Brochure

Download

PDF

NeoEyes NE503 Product Brochure

Download

PDF

NeoEyes NG4500 Product Brochure

Download

PDF

CamThink Product Catalogue

Download

Resources and Community

CamThink Wiki

GitHub

Discord

Hackster

Technical Review

Review Your Architecture

Share your requirements. We'll recommend the right product, integration path, and PoC scope. Include any project-specific configuration or integration requirements in your submission.

sales@camthink.ai Book a Meeting
