Compact M.2 E Key Wi-Fi 5 and Bluetooth 5.0 module with 2×2 MIMO, up to 866.7 Mbps speed, dual-band support, and broad OS compatibility.
Ideal for laptops, embedded IPCs, and developer platforms.

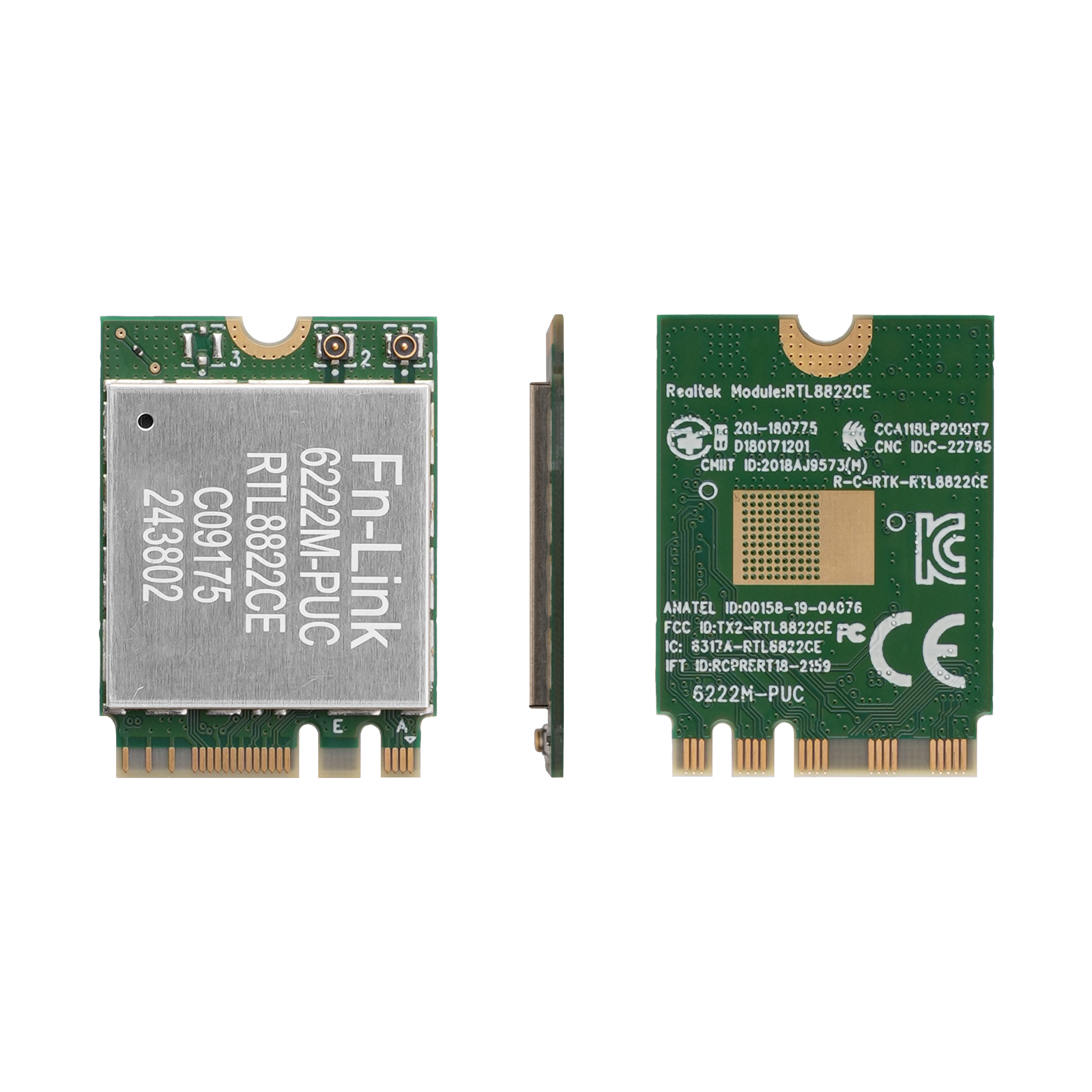

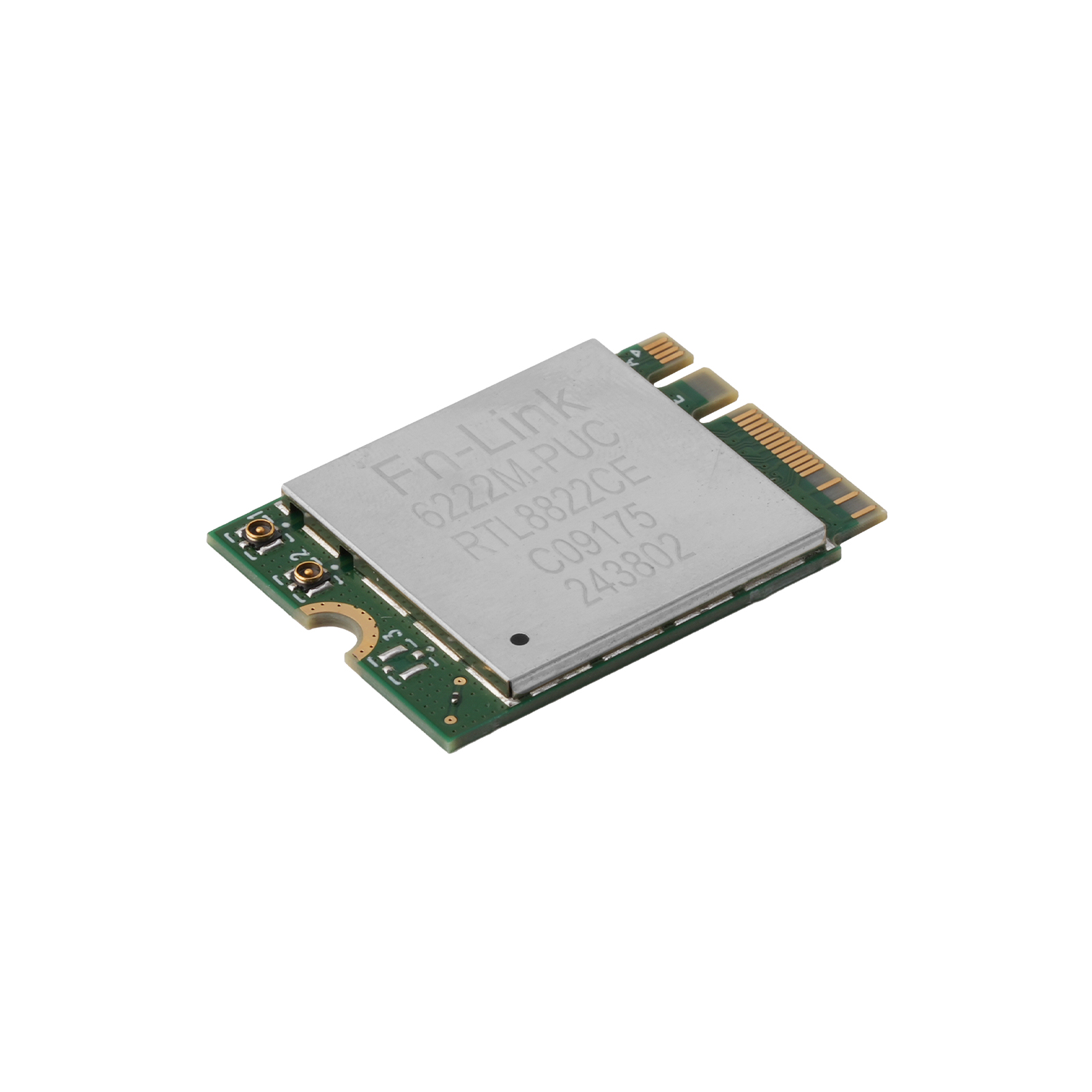

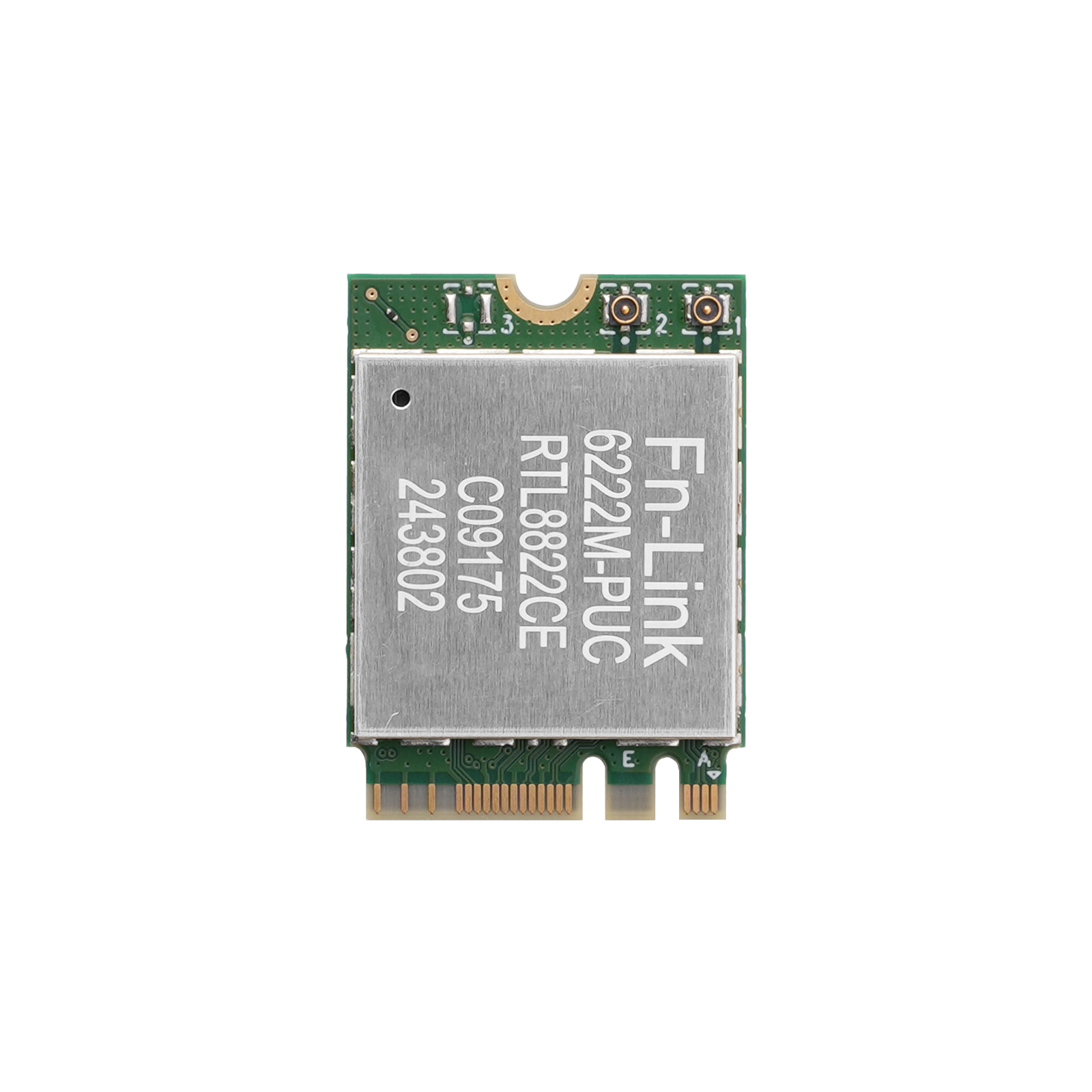

The FG6222MPUC-02 is a compact Wi-Fi 5 (802.11ac) + Bluetooth 5.0 module in M.2 Key E form factor, designed for laptops, tablets, industrial PCs, and embedded edge AI systems. With 2×2 MIMO, MU-MIMO, and broad OS support, this module delivers stable wireless connectivity in diverse application scenarios.
Key Features
Dual-Band Wi-Fi 5 Supports 2.4GHz and 5GHz with up to 866.7 Mbps throughput and MU-MIMO performance
Bluetooth 5.0 Integration Efficient short-range wireless communication with up to 3 Mbps EDR speed
M.2 Key E Interface Supports PCIe x1 + USB 2.0, compact and compatible with common embedded boards

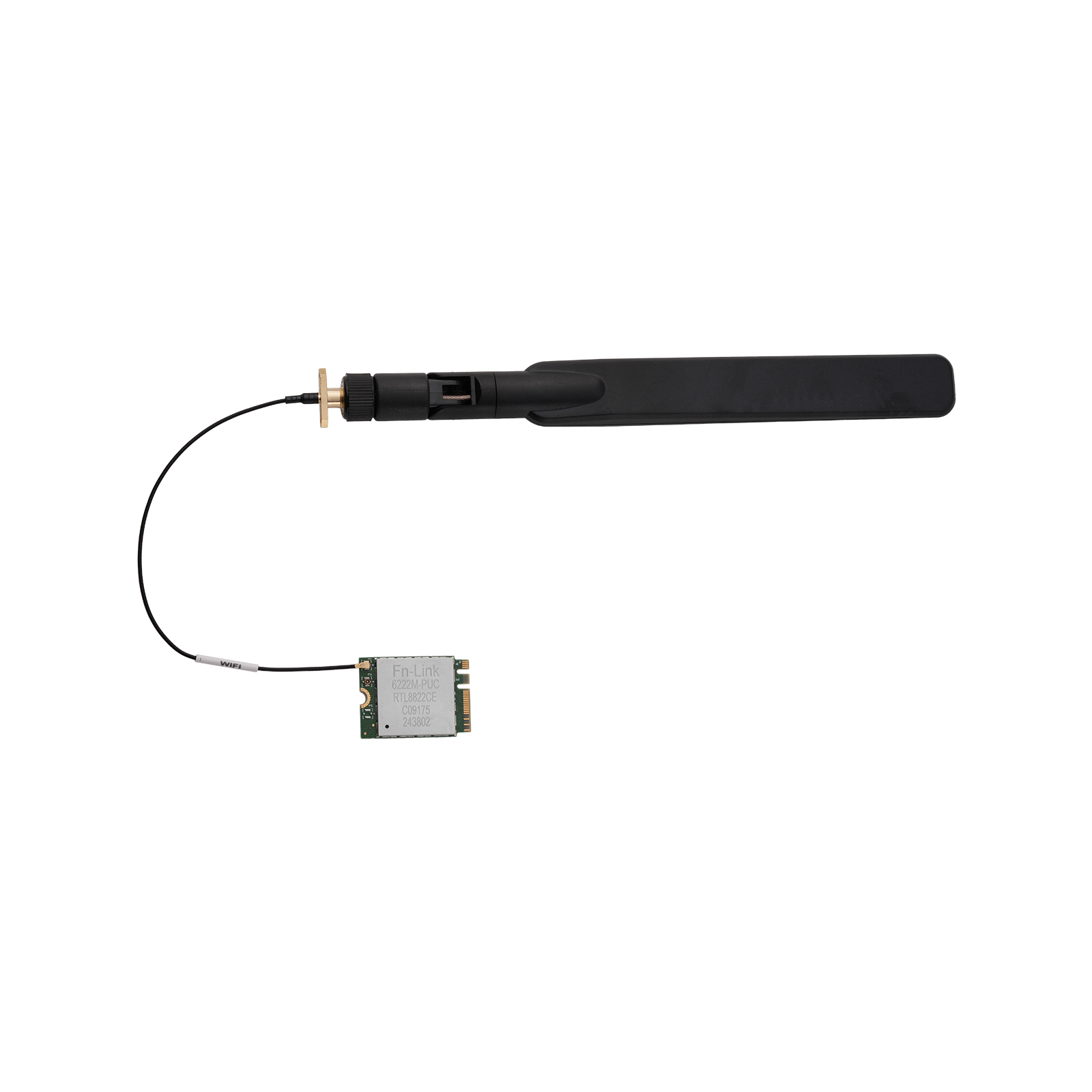

2×2 MIMO Antenna Design High-reliability signal with dual IPEX antenna connectors for better reception
Cross-Platform Support Works with Android / Linux / Windows XP / 7 / 10 / iOS / Win CE
Industrial-Grade Design Operating temperature from 0°C to 70°C, compact M.2 2230 size
Wireless Connectivity
Feature
Spec
Wi-Fi Standard
IEEE 802.11a/b/g/n/ac (Wi-Fi 5)
Bluetooth Version
Bluetooth 5.0
Frequency Bands
2.4GHz / 5GHz
Max Wi-Fi Speed
Up to 866.7 Mbps (5GHz, 80MHz)
Max Bluetooth Speed
Up to 3 Mbps (EDR)
MIMO Configuration
2T2R (2×2 MIMO), MU-MIMO supported
Interface
M.2 Key E (PCIe x1 + USB 2.0)
Dimensions
22mm × 30mm × 2.2mm (M.2 2230 compliant)
Operating Temp.
0°C to 70°C
RF Performance (Typical)
Band
Modulation
TX Power (dBm)
RX Sensitivity (dBm)
2.4GHz
802.11b
20
-92 (1 Mbps)
802.11g/n
17
-70 (MCS7)
5GHz
802.11a/n/ac
15
-56 (MCS9)
Bluetooth Details
Parameter
Value
Modulation Scheme
GFSK / π/4-DQPSK / 8DPSK
Output Power
Class 1/2/3 (up to 5 dBm)
RX Sensitivity
-70 dBm (1 Mbps)
Applications
Industrial AI Cameras and Edge Devices
Laptops and Embedded Tablets
Fanless Industrial PCs and Panel Computers
Smart Retail Terminals / Signage
Wireless IoT Gateways
