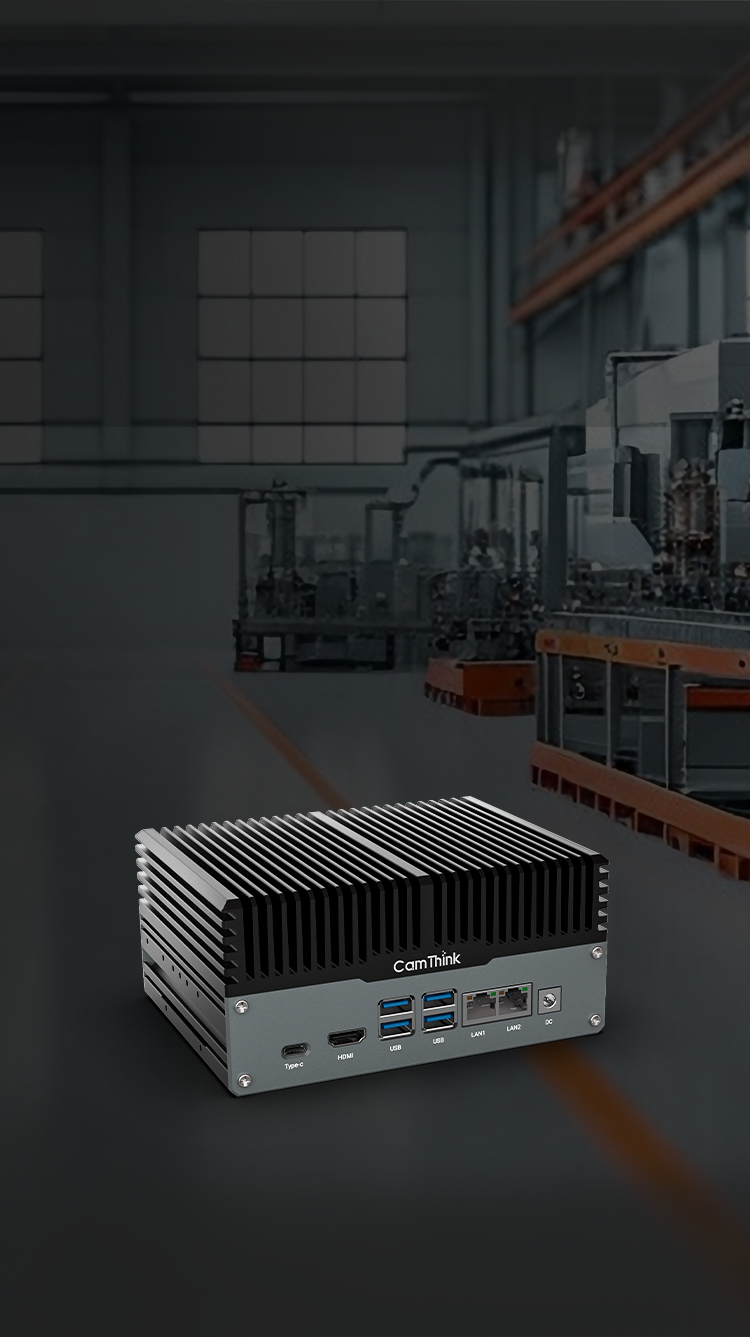

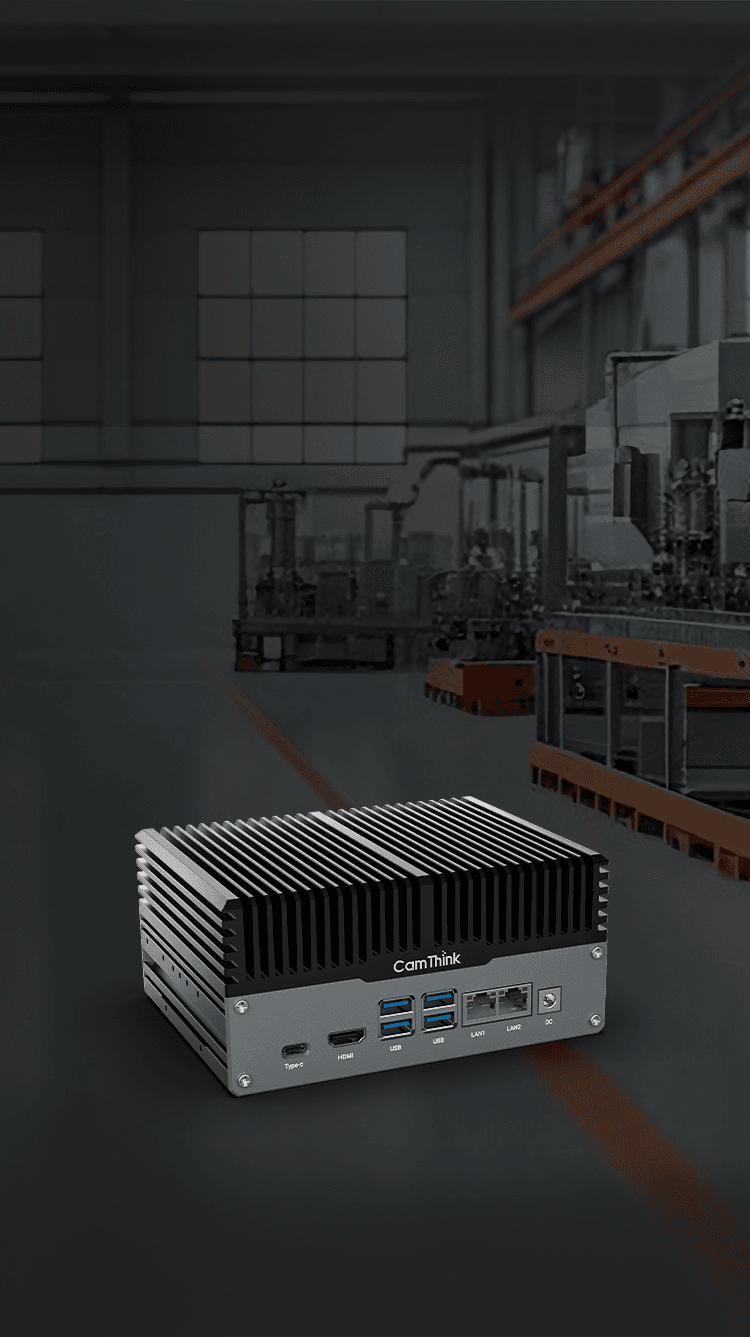

Engineered for Real AI. Deployed at the Edge.
AI Acceleration
Up to 157 TOPS with Jetson Orin™, JetPack 6.0+, and Super Dev Kit support for LLMs, VLMs, and Vision AI
Rich I/O & Wireless
Dual Gigabit LAN, USB 3.x, DI/DO, M.2 slots with SIM for 4G/5G/Wi-Fi deployment with flexible connectivity
Developer First
Ubuntu and Jetson DevFlow pre-installed — build with CUDA, TensorRT and DeepStream to accelerate edge AI deployment
Industrial Design
-25°C to 60°C, fanless, rugged, NVMe SSD ready, 12–36V DC-in — for stability even in harsh environments
Specifications
| PN | NG4510 | NG4511 | NG4520 | NG4521 | |
|---|---|---|---|---|---|
| System Core | Module | Jetson Orin Nano 4GB | Jetson Orin Nano 8GB | Jetson Orin NX 8GB | Jetson Orin NX 16GB |
| AI Performance | 20 TOPS | 40 TOPS | 70 TOPS | 100 TOPS | |
| AI Performance (Super) | 34 TOPS | 67 TOPS | 117 TOPS | 157 TOPS | |
| GPU | 512 NVIDIA® CUDA® cores 16 Tensor cores | 1024 NVIDIA® CUDA® cores | 32 Tensor cores | |||
| CPU | 6-core Arm® Cortex® A78AE (64-bit) HMP 2 x Clusters | 8-core Arm® Cortex® A78AE v8.2 (64-bit) HMP2 x Clusters | |||
| DRAM SIZE | 4GB | 8GB | 8GB | 16GB | |
| DRAM BW | 64-bit LPDDR5 DRAM 34 GB/s | 51 GB/s | 128-bit LPDDR5 DRAM 3200 MHz 102 GB/s | |||
| OS | Linux | ||||

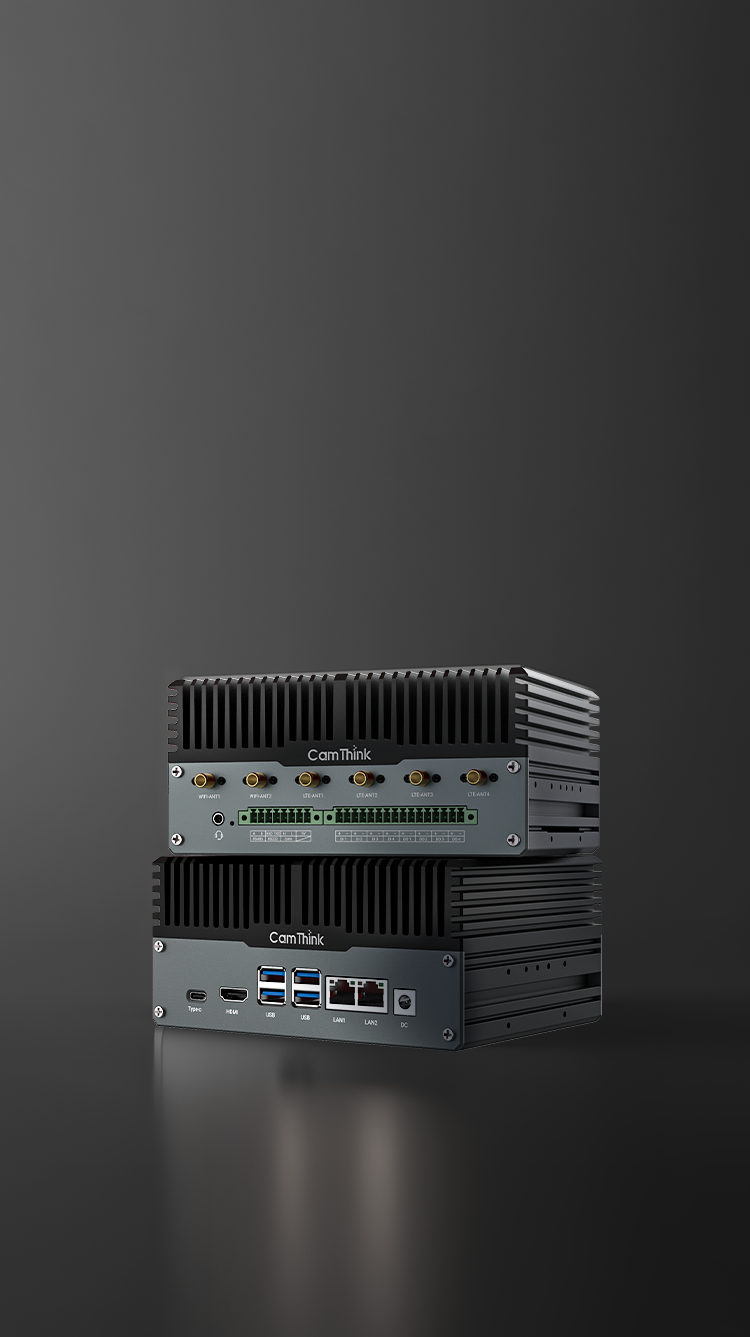

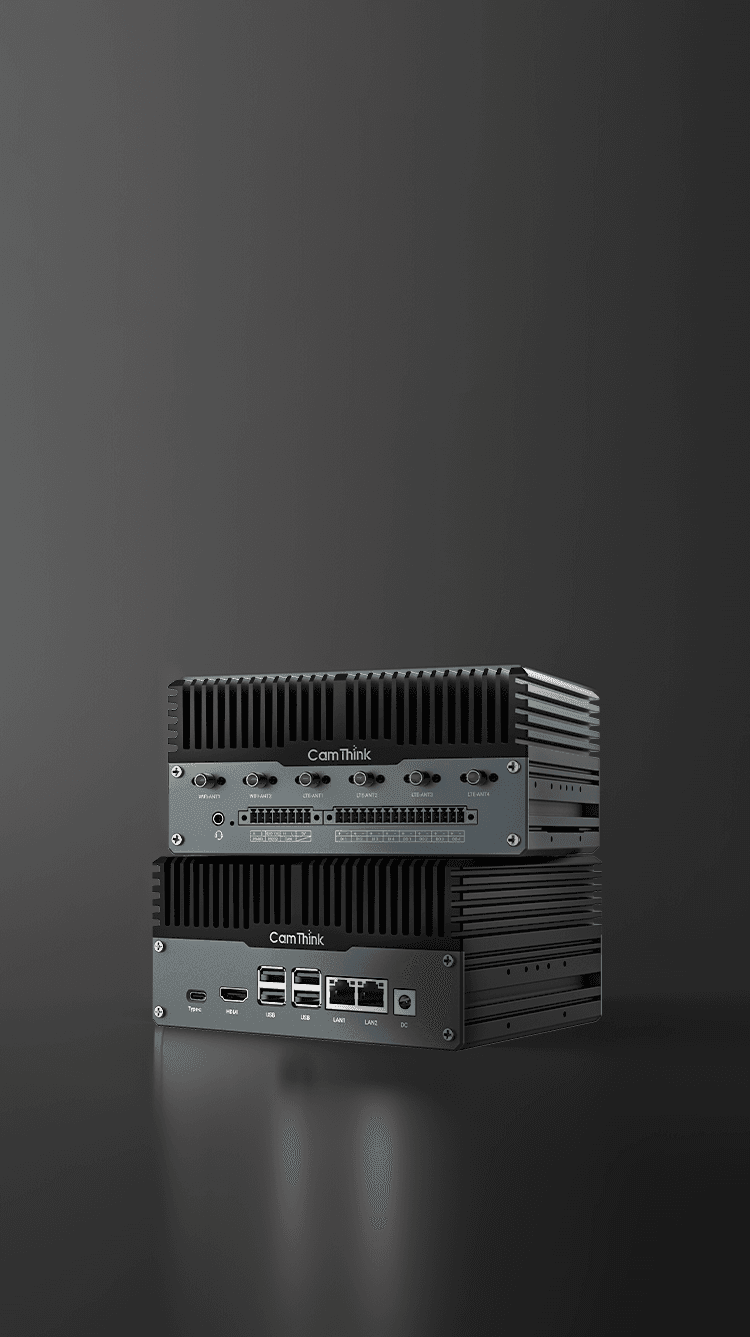

Industrial I/O
Maximum Integration
Connect your devices. Control your system. All in one box. Built for the real world.
2× Gigabit LAN
4× USB 3.1, 1× USB-C
RS232, RS485, CAN, DI/DO
HDMI @4K UHD, Audio I/O
Wi-Fi 6, BT 5.0
6× SMA Antenna Ports

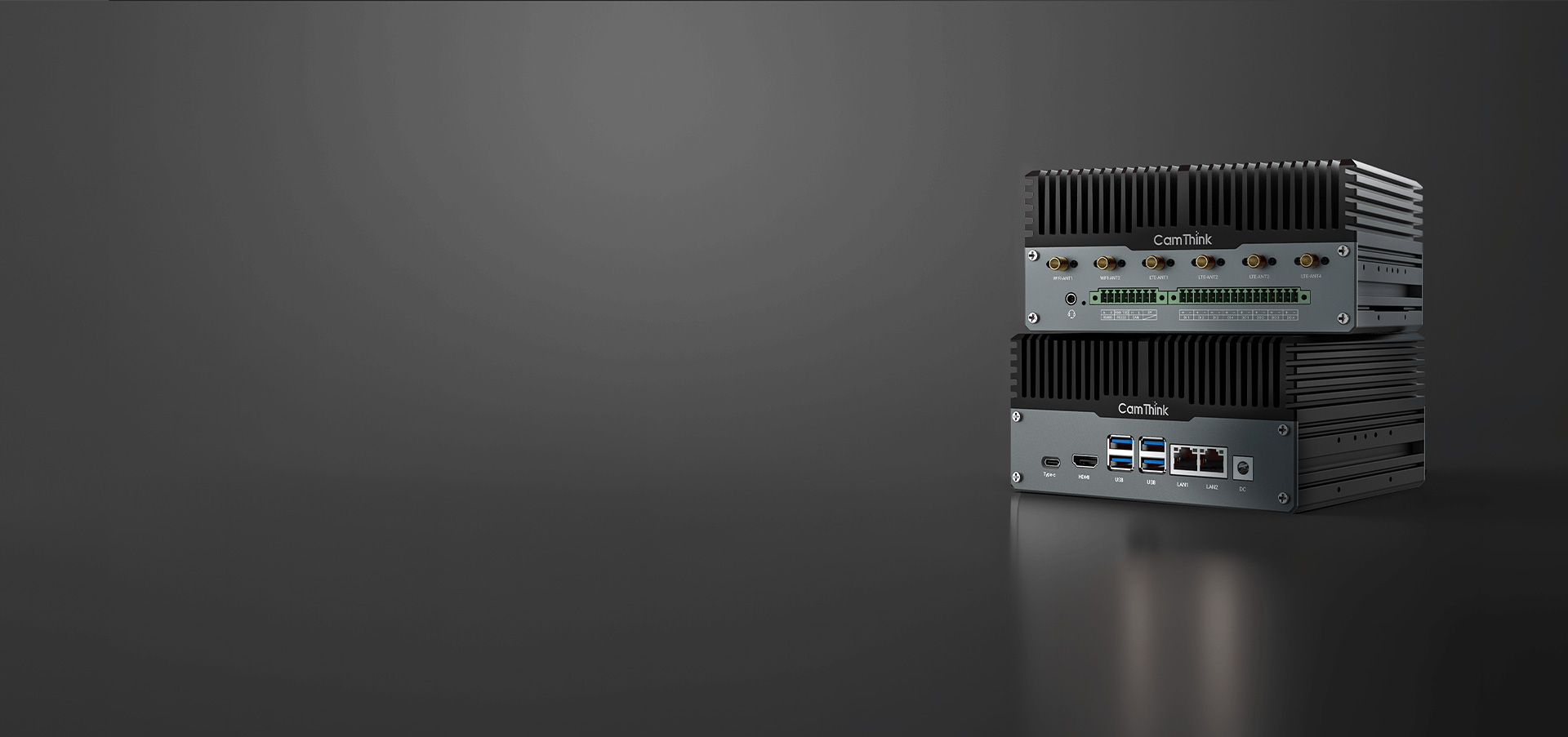

Industrial I/O
Maximum Integration
Connect your devices. Control your system. All in one box. Built for the real world.

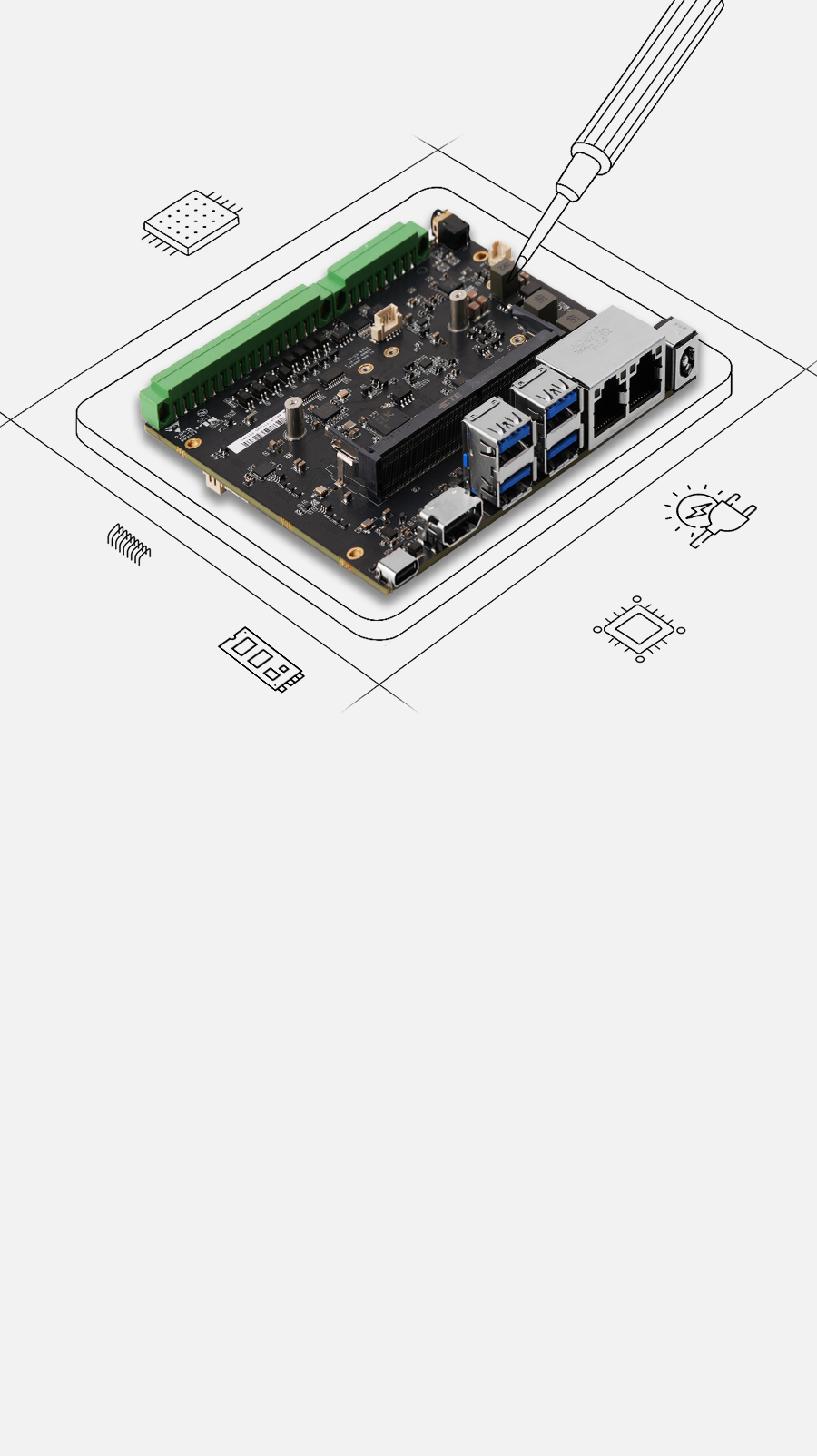

Explore WikiModular I/O Expansion Board
Scale your connectivity. Customize your edge deployment.
- Dual NVMe SSD, up to 2TB
- M.2 slots for 4G/5G, Wi-Fi 6, Bluetooth 5.0
- Dual HDMI for high-res industrial monitors
- Optional RTC/PoE, stackable for field-ready deployments
- Fully compatible with Jetson SOX K-Centric Docs

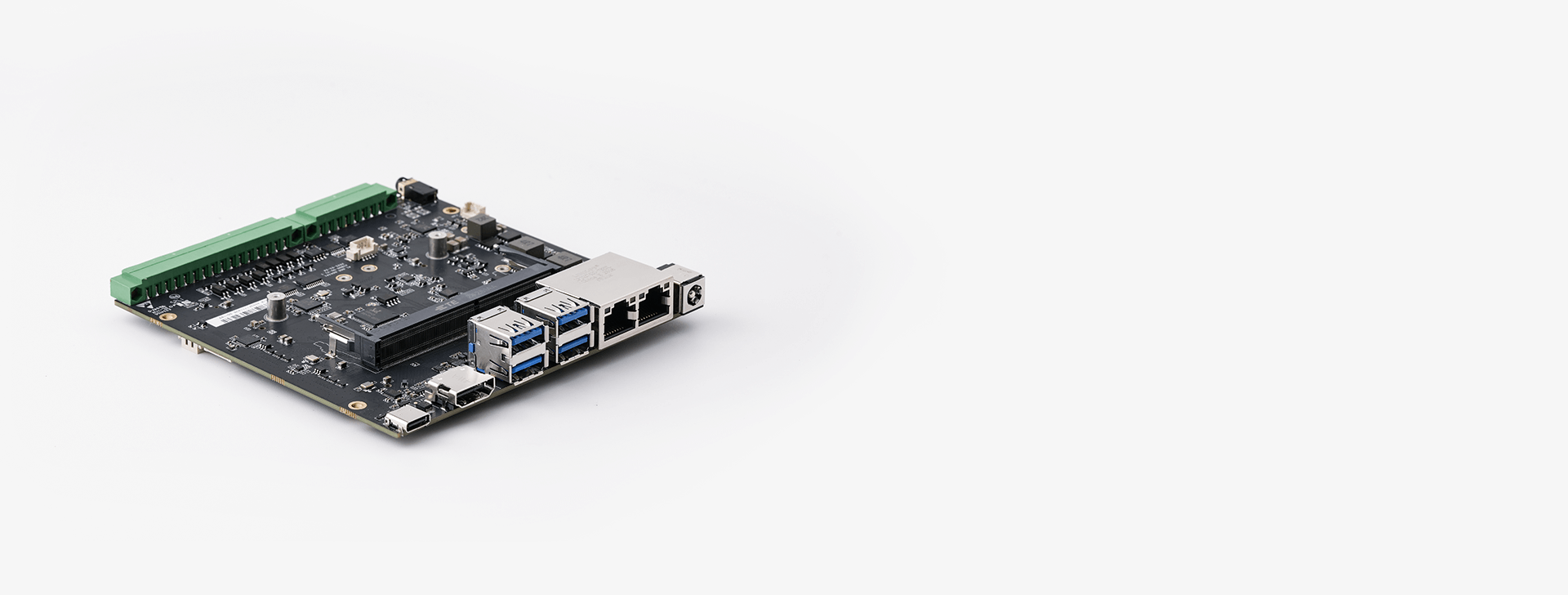

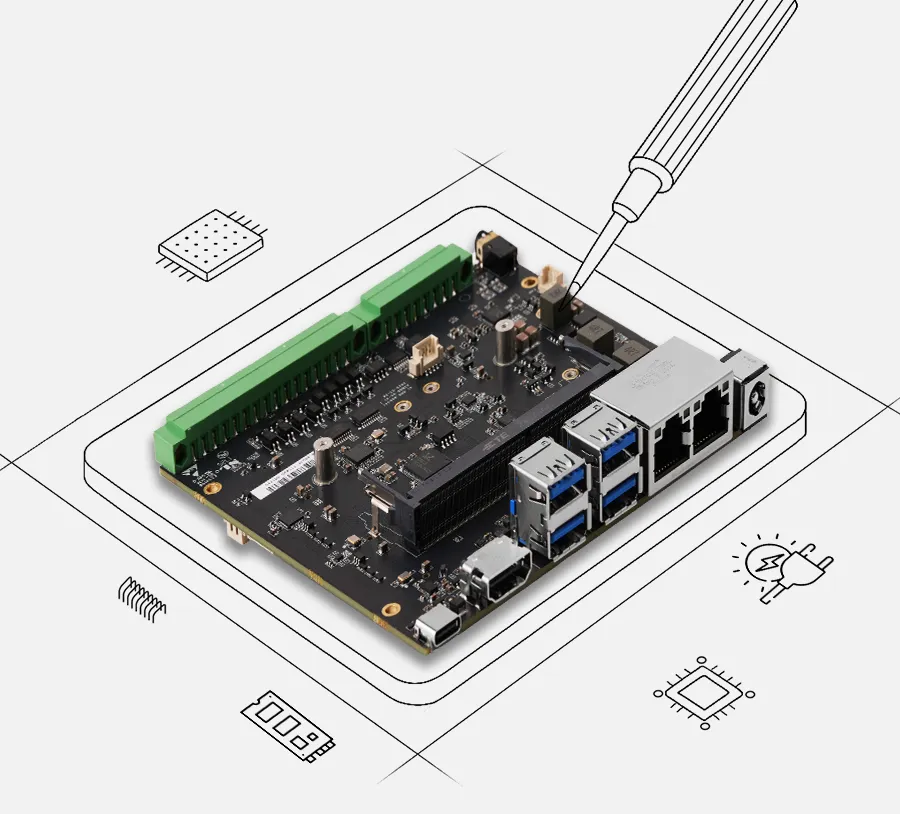

Modular I/O Expansion Board
Scale your connectivity. Customize your edge deployment.
- Dual NVMe SSD, up to 2TB
- M.2 slots for 4G/5G, Wi-Fi 6, Bluetooth 5.0
- Dual HDMI for high-res industrial monitors
- Optional RTC/PoE, stackable for field-ready deployments
- Fully compatible with Jetson SOX K-Centric Docs
Applications
Smart Manufacturing
Upgrade factory lines with predictive maintenance, real-time anomaly detection, and quality inspection. Prevent costly failures and support lights-out operations in Industry 4.0 environments.
Smart Manufacturing
Warehousing & Logistics

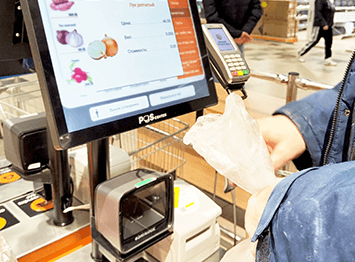

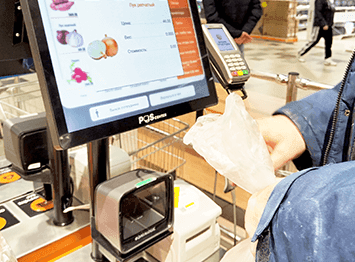

Smart Retail
Smart City
Smart Manufacturing
Warehousing & Logistics
Smart Retail
Smart City
