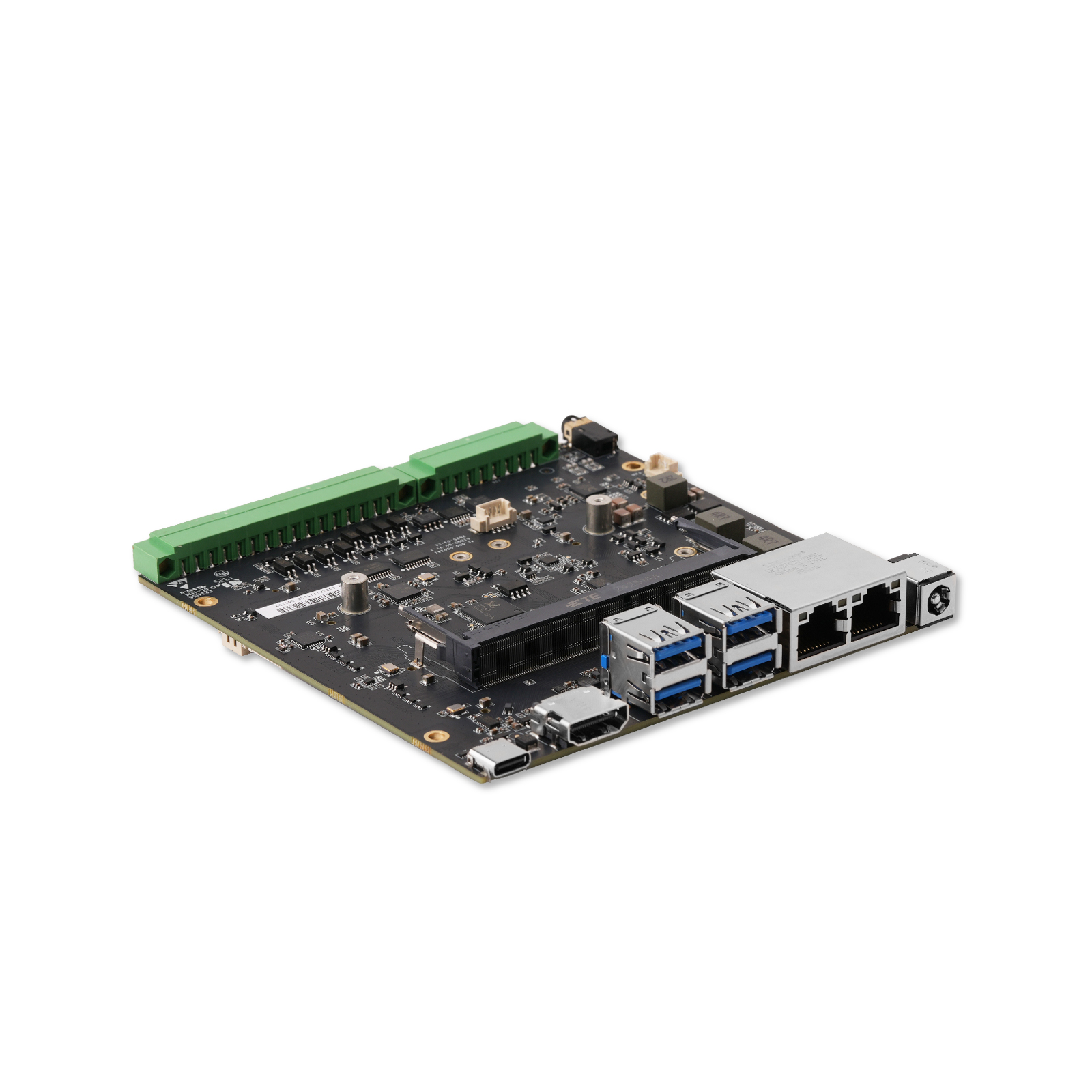

The CamThink NG4500-CB01 is a high-performance carrier board designed for Jetson Orin Nano/NX modules, optimized for AI edge computing applications in robotics, machine vision, industrial control, and automation.
Compact yet expandable, it features rich I/O, multi-protocol support, and industrial-grade reliability—ideal for developers and system integrators building next-gen AI solutions.
Key Features
Compatible with Jetson Orin Nano/NX Supports NVIDIA Jetson Orin Nano (4GB/8GB) and Orin NX (8GB/16GB)

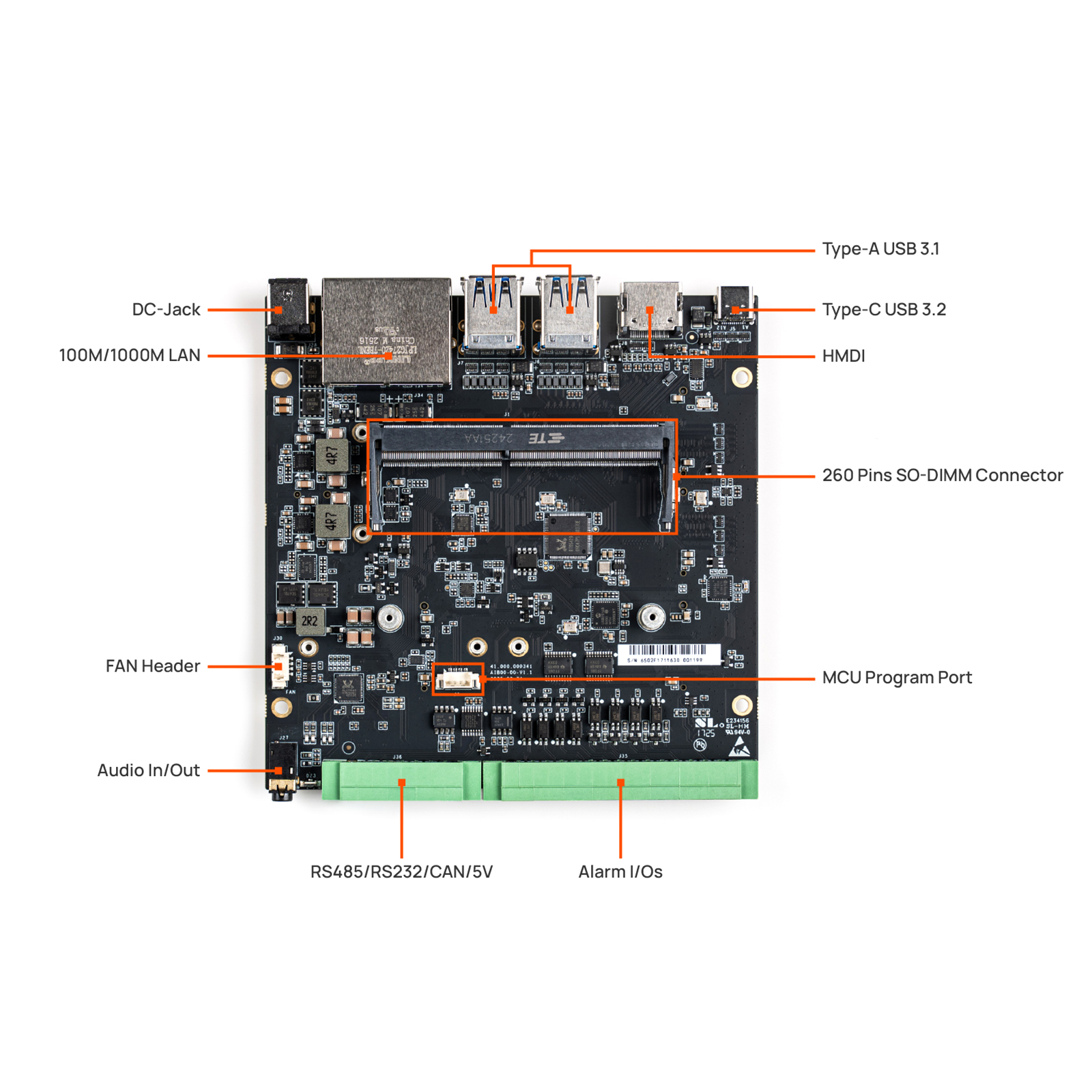

Rich I/O Interfaces
2× Gigabit Ethernet (RJ45)
4× USB 3.1 Type-A + 1× USB 3.2 Type-C
RS232 / RS485 / CAN
HDMI 4K video output
DI/DO, Audio In/Out

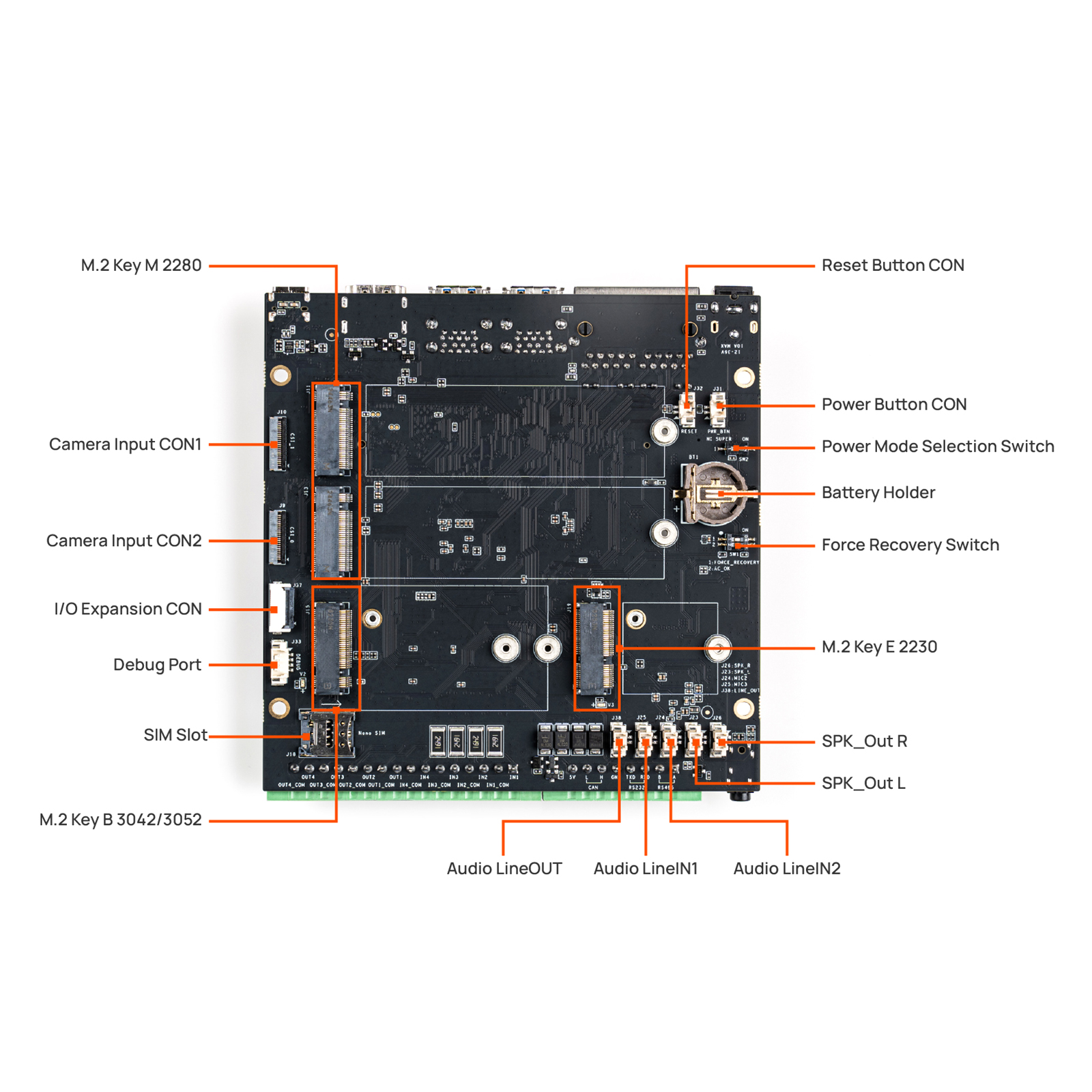

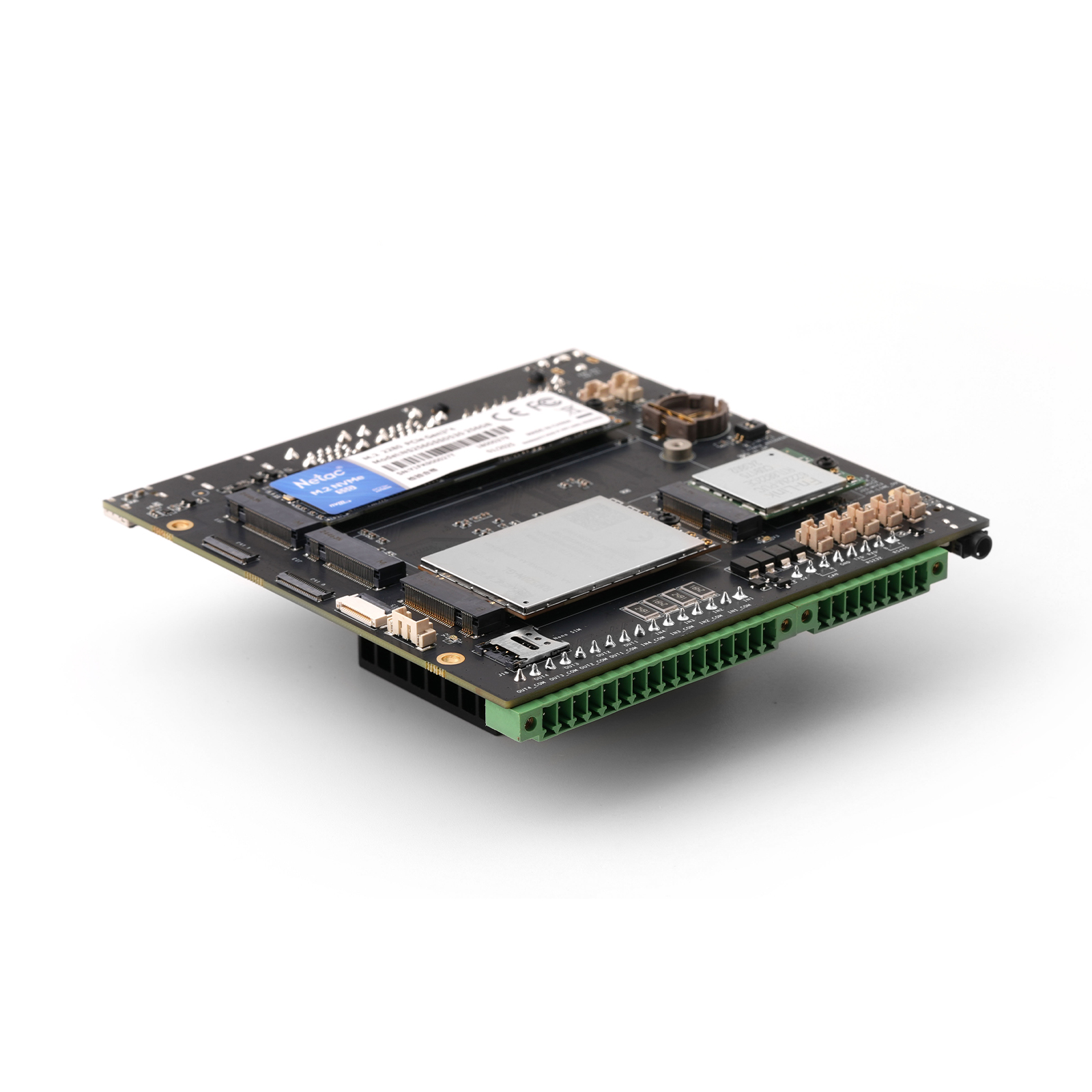

Flexible Expansion via M.2 Slots
M.2 Key M (PCIe Gen4 NVMe 2280 SSD)
M.2 Key M (PCIe Gen1 for additional I/O)
M.2 Key B (4G/5G/Wi-Fi HaLow)
M.2 Key E (Wi-Fi 6 / Bluetooth 5.0)
Camera Integration Dual MIPI CSI interfaces support up to 2 camera inputs
Industrial Reliability
Wide DC input (12V–36V)
Fanless passive cooling
Operating temperature: –25°C to +60°C
Specifications
Category
Details
Compatible Modules
Jetson Orin Nano 4GB/8GB, Orin NX 8GB/16GB
CPU
6–8 core Arm Cortex-A78AE
GPU
512–1024 NVIDIA CUDA cores, 16–32 Tensor cores
AI Performance
Up to 157 TOPS INT8 (SUPER mode)
Memory Support
4GB / 8GB / 16GB LPDDR5 (based on Jetson module)
Storage
M.2 NVMe SSD (2280), optional 128GB to 1TB pre-installed
Ethernet
2× Gigabit LAN (RJ45)
USB Ports
4× USB 3.1 Type-A, 1× USB 3.2 Type-C
Serial Ports
RS232, RS485, CAN bus
Expansion Slots
M.2 Key M/B/E for SSD, 4G/5G, Wi-Fi, Bluetooth
Camera Interface
2× MIPI CSI (4 lanes each)
Power Input
12V–36V DC input, up to 120W
Dimensions

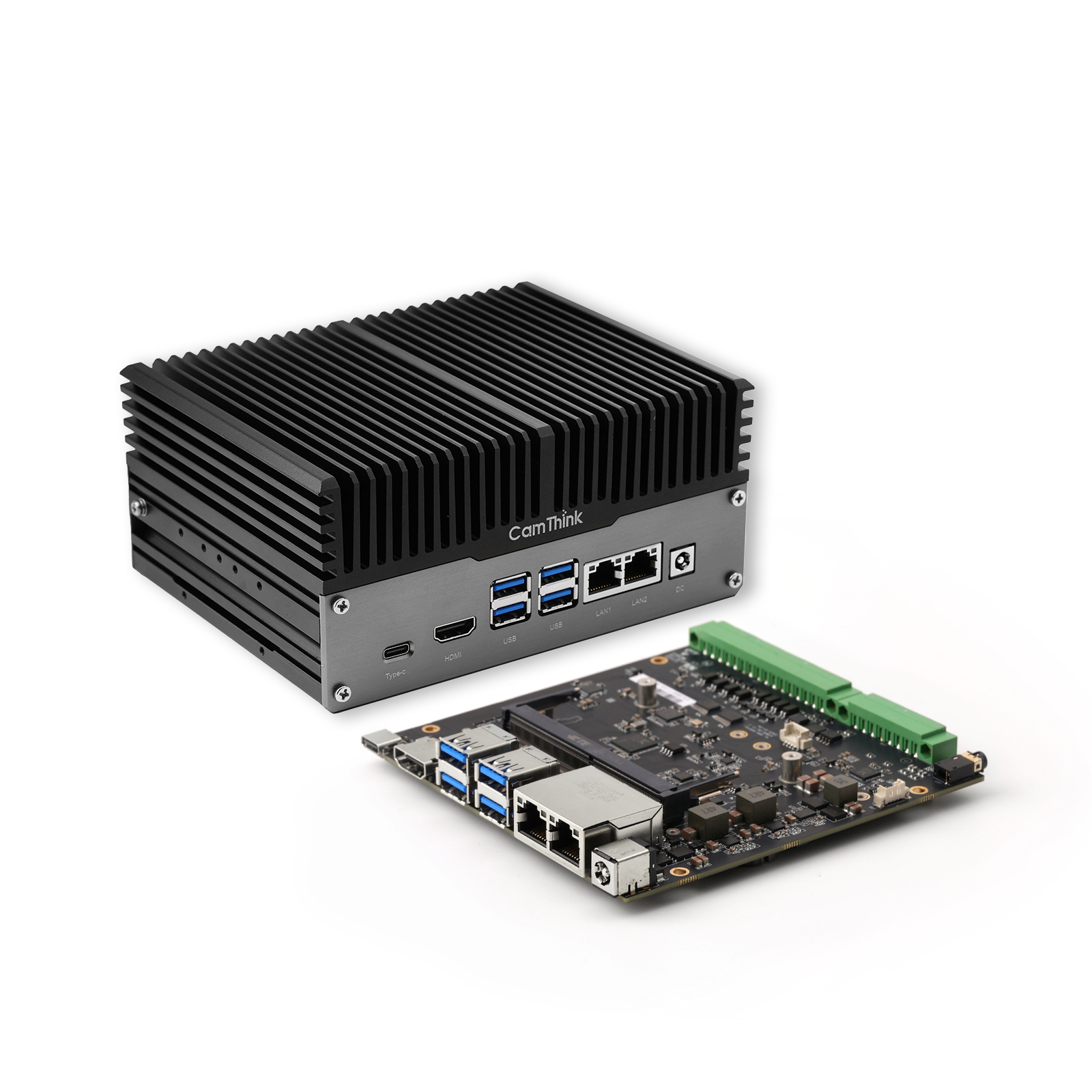

160mm × 125mm × 75mm (in enclosure)
Operating System
Ubuntu Linux (JetPack 6.0 or later)
Operating Temp.
–25°C to +60°C
Use Cases
AI Vision Systems
Robotic Control Units
Industrial Edge Computing
Smart Manufacturing Automation
Autonomous Vehicles & Inspection Bots
What’s the Package
1 × NG4500-CB01 Carrier Board
Q: What Jetson modules are compatible? A: NG4500-CB01 supports Jetson Orin Nano (4GB/8GB) and Orin NX (8GB/16GB) modules.
Q: Does it support NVMe SSDs? A: Yes, M.2 Key M slot supports PCIe Gen4 NVMe SSDs (2280 form factor).
Q: Can I add cellular connectivity? A: Yes, M.2 Key B slot supports 4G/5G modules.
Q: Can it run without a fan? A: Absolutely. The board uses a passive fanless cooling system, ideal for silent deployments.
Q: What’s the recommended OS? A: It supports Ubuntu-based JetPack 6.0+, the official NVIDIA development environment.
