NeoEyes NE101 Modular Sensing Camera

NeoEyes NE101 Series

Developer-friendly, battery-powered vision camera based on
ESP32-S3, built for event-triggered,
ultra-low-power outdoor deployments.

All NE101 models share the same core platform. The standard version
includes Wi-Fi only;
other versions add a
communication expansion board</strong >.

NE101 Versions Comparison

The
NeoEyes NE101 Series is
available in multiple
pre-configured SKUs, each
including a
specific communication module</strong >
optimized for different regions and connectivity scenarios.

Important</span >
Each NE101 SKU
ships with its corresponding communication module
pre-installed</strong >.
Additional communication modules
are
optional accessories
and can be purchased separately for upgrades or replacements.

Regional Availability

How to Choose (One-Line Guide)

• Have Wi-Fi nearby?
  → Choose
  Standard Wi-Fi

• Need long range with no data fees?</strong >
  → Choose
  Wi-Fi HaLow

• No local network at all?</strong >
  → Choose 4G Cat.1

Key Features

Ultra-Low Power Operation

Powered by 4×AA batteries. Up to 3+ years battery life at 5 captures/day
in Wi-Fi mode under default low-power settings (theoretical; varies by
version). Optional Type-C 5V power for development and debugging.

Event-Triggered Capture

Supports
PIR, radar, and sound triggers</strong >, waking only when events occur.

Modular Architecture

3-layer modular design with
swappable camera, communication, and power modules</strong >.

Open Hardware & Firmware

Open-source firmware with
documented GPIO, UART, and interfaces </strong >for custom development.

Outdoor-Ready

IP67 waterproof enclosure</strong >, tempered glass lens, and multiple mounting options.

Default camera:
OV5640, 120° FOV, 3m focus (pre-installed). Other lenses sold
separately.</em >

🔗 Shop OV5640 Lenses</a >

🔗 Shop USB Camera Modules for NE101</a >

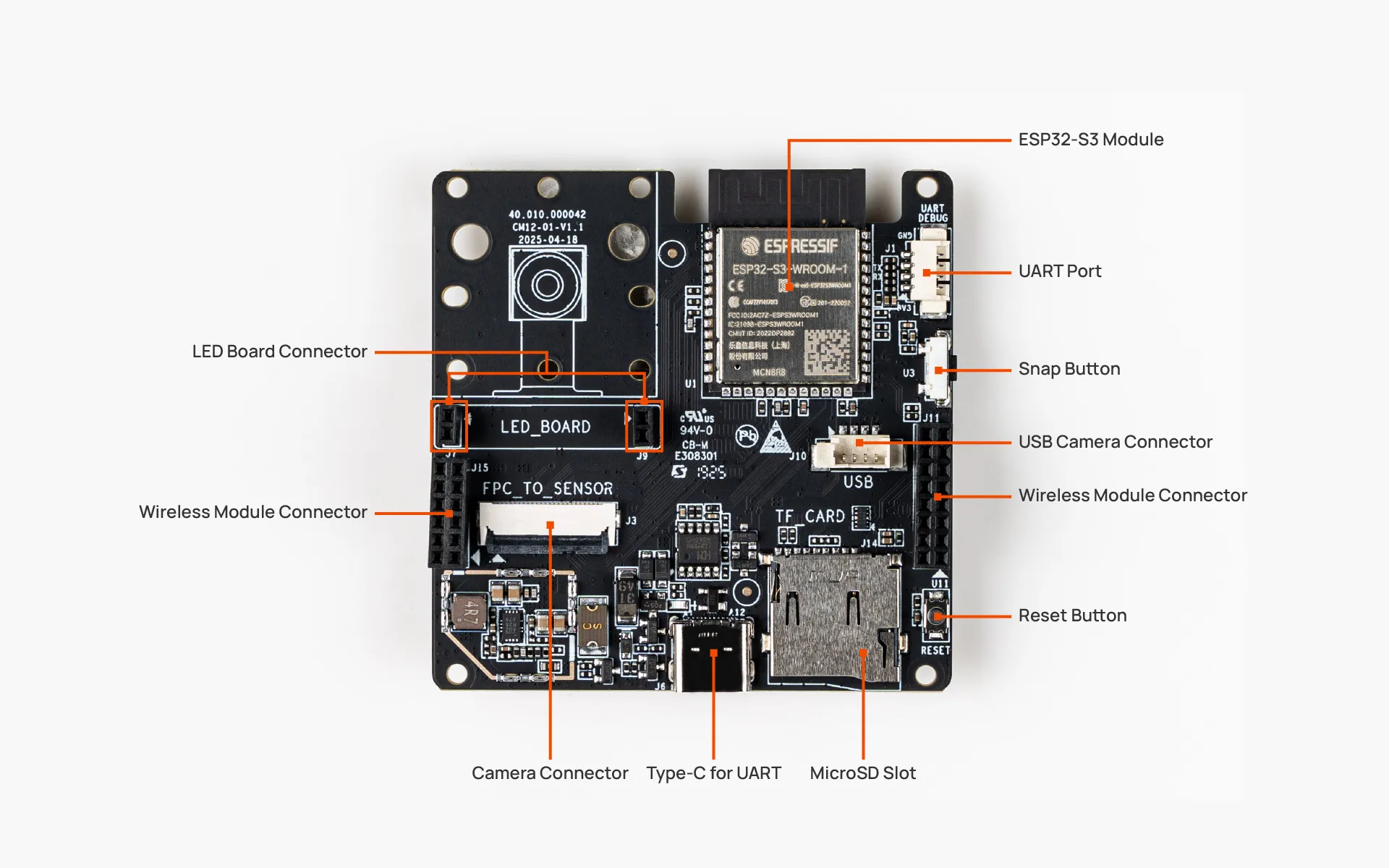

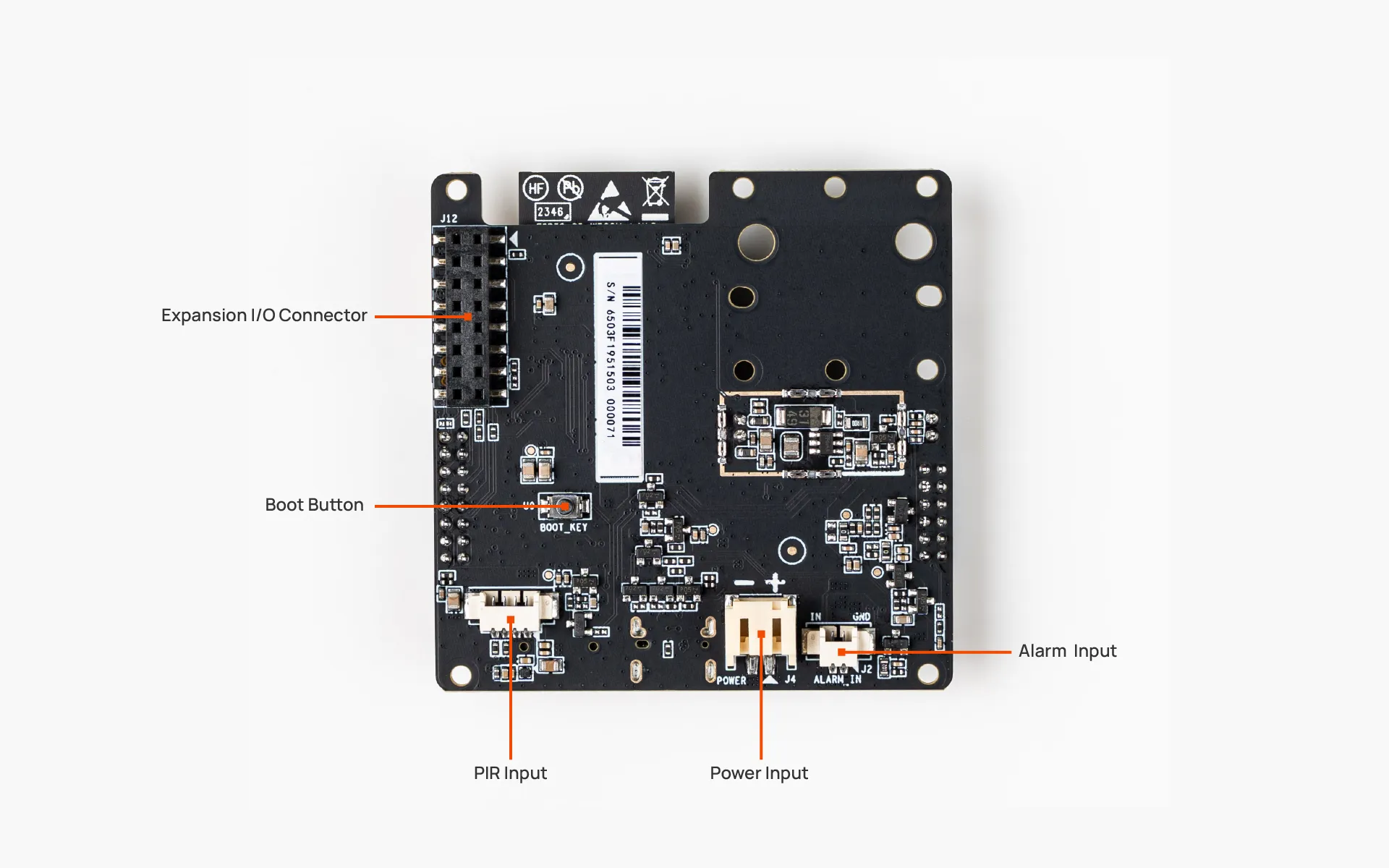

Modular & Customizable by Design

• Interchangeable camera modules</strong >
  (CPI or USB)

• Swappable communication modules</strong >

• Micro-TF card slot

• 16-pin GPIO, UART,
  and Alarm input

• Type-C port for
  debugging and development

This modular architecture allows developers to
reuse the same core hardware</strong >
while easily adapting connectivity and peripherals for
different projects, regions, or deployment scenarios</strong >.

Specifications

Mounting Options & Accessories</span ></b >

The NE101 series supports versatile installation accessories to ensure
secure and flexible deployment in any environment.</span >

Note: Mounting accessories are sold separately.
🔗Shop here </a ></em >

What’s in the Box

• 1 × NeoEyes NE101 Camera (SKU-specific communication module)

• 1 × OV5640 Lens Module (120° FOV, 3m focus, pre-installed)

Batteries not included.</strong >
Additional modules and
accessories are sold separately.
