10W Solar Panel & 7Ah Outdoor Battery Kit with 5V Type-C Output

Overview

Designed for off-grid outdoor environments, this solar power kit combines a 10W monocrystalline solar panel with an L12007 7Ah cylindrical integrated battery pack. The battery features a built-in 5V step-down module and supports  5V Type-C output, making it suitable for outdoor cameras, IoT sensors, wireless bridges, micro base stations, and other 5V-powered devices.

With waterproof aviation connectors and an anti-misplug design, the kit is easy to install, quick to connect, and built for long-term outdoor deployment.

Compatibility Notice

This solar power kit is designed for the CamThink NeoEyes NE101/NE301 USB-C version, whichis NOT currently available for direct online purchase. Standard battery-version cameras need the Kit + USB-C Back Cover option.

Please check the correct Option before checkout:

• Solar Kit Only: Solar kit only. No camera or USB-C back cover included.
• Kit + USB-C Back Cover： Solar kit + one USB-C back cover. No camera included.

If your order also includes an NE101 / NE301 camera and you need CamThink to install the USB-C back cover before shipment, please leave a note at checkout or contact store@camthink.ai.

Proper sealing is required after back cover installation to maintain outdoor water resistance.

* As shown in the image, the DC back cover has a USB-C cable opening that the battery version does not have.

For deployment guidance and power consumption analysis, refer to the official documentation: CamThink Solar Power Solution

Key Features

10W High-Efficiency Solar Charging
The monocrystalline solar panel delivers reliable power generation, even in low-light conditions, helping maintain continuous green energy supply for remote devices.

7Ah Large-Capacity Energy Storage

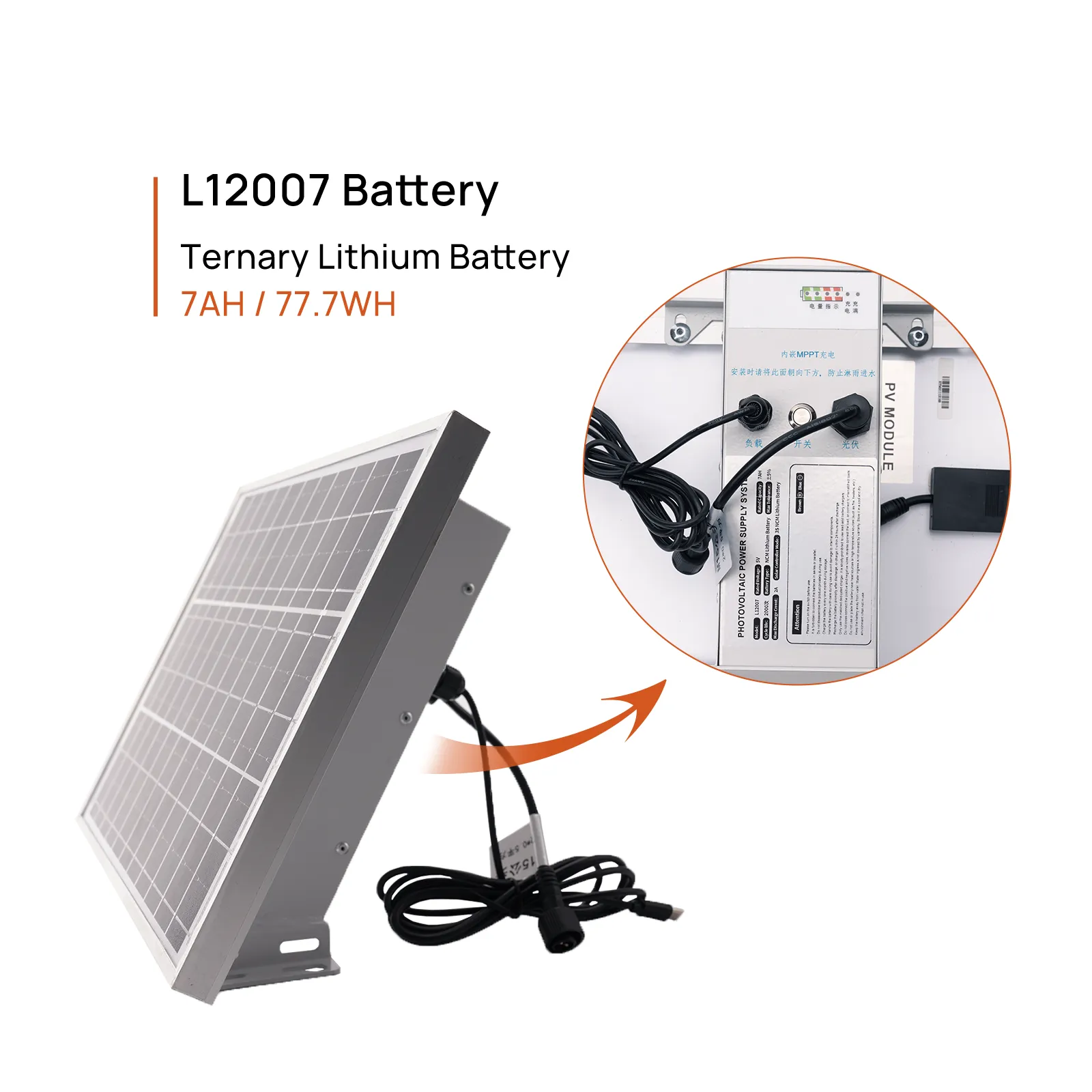

Equipped with a 7Ah / 77.7Wh ternary lithium-ion battery, the kit supports extended runtime for low-power outdoor equipment and helps reduce maintenance frequency.

Type-C 5V/5A Regulated Output
The built-in step-down module provides stable Type-C 5V/5A output, allowing direct connection to a wide range of mainstream 5V devices.

Smart BMS Protection
Integrated BMS protection manages charging and discharging more safely, with a maximum charging voltage of 12.3V and a discharge cut-off voltage of 9.2V to help protect battery life.

Wide-Temperature Outdoor Performance

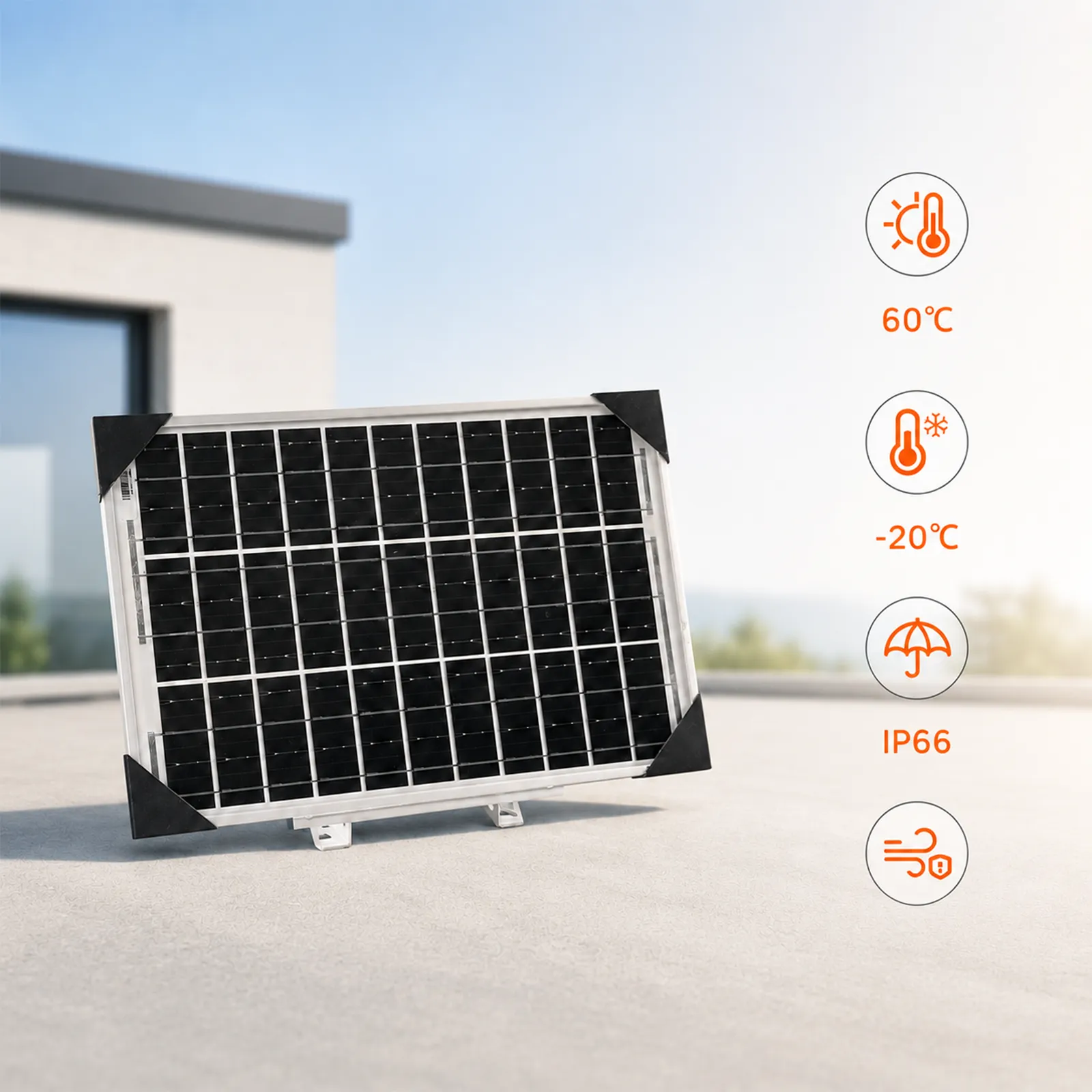

Supports discharging from -20°C to 60°C, making it suitable for demanding outdoor environments in both cold and hot climates.

Waterproof Aviation Connector, Plug and Play
The solar panel and battery are connected via waterproof aviation connectors with an anti-misplug design. Simply align, plug in, and tighten for a secure connection.

Integrated Cylindrical Design for Easy Installation
The cylindrical battery pack is easy to integrate into poles, equipment boxes, or outdoor enclosures, while the solar panel supports flexible bracket installation and angle adjustment.

Installation Notes

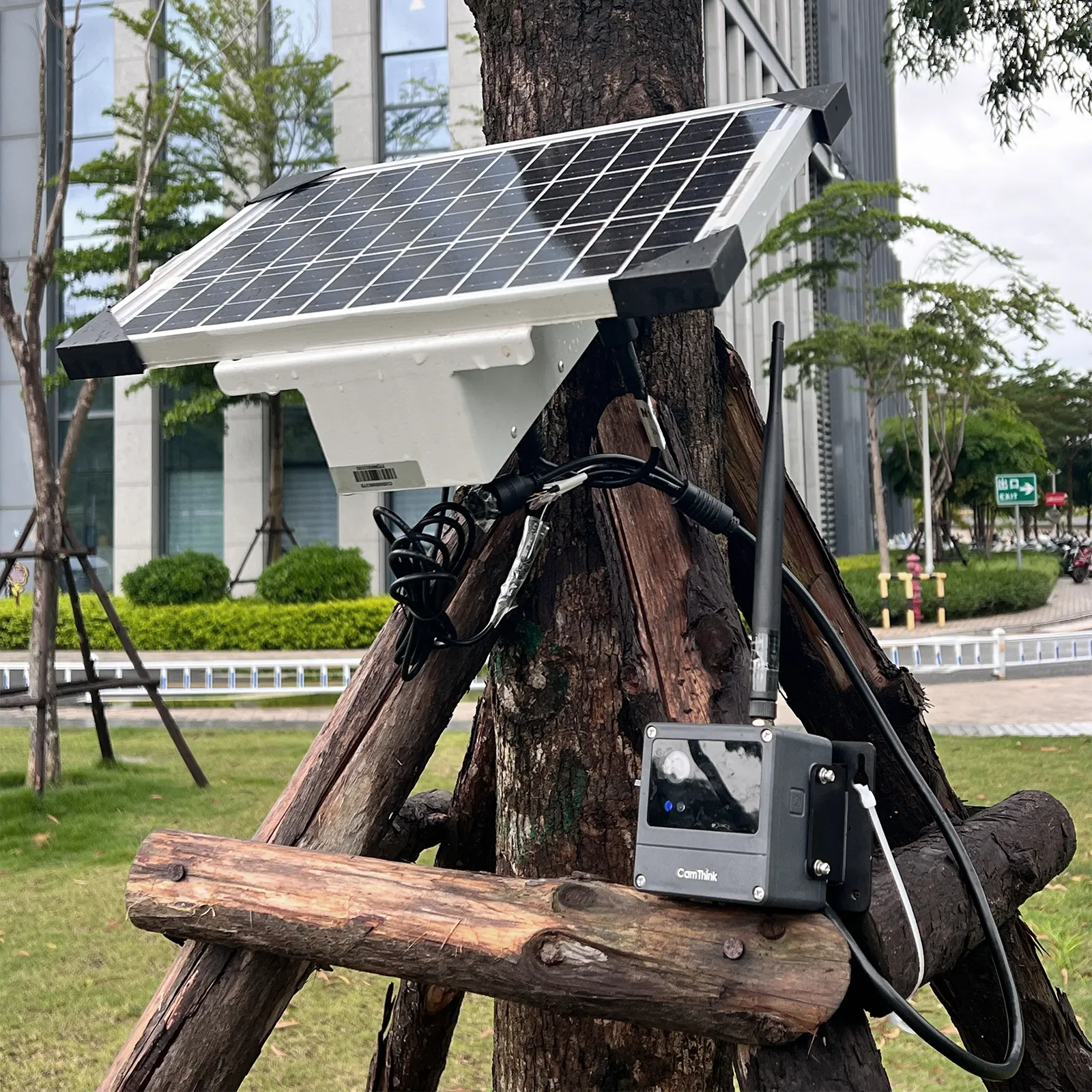

Install the solar panel in an open area with direct sunlight. For best performance in the Northern Hemisphere, face the panel south and avoid shade from trees, buildings, or other obstacles.

Connect the solar panel to the battery using the waterproof aviation connector. Align the connector correctly, plug it in, and tighten it securely.

For long-term storage over 30 days, keep the battery at around 50% SOC and perform charge/discharge maintenance every 2 months.

Charging below 0°C is not recommended, as low-temperature charging may affect battery life.

Application Scenarios

Outdoor Security Monitoring

• Outdoor security cameras
• Remote roadside monitoring devices
• Wireless bridges
• Perimeter monitoring systems

IoT Sensor Stations

• Agricultural monitoring
• Water and hydrology monitoring
• Environmental sensing
• Remote weather stations
• Infrastructure monitoring nodes

Remote Communication Equipment

• Outdoor IoT gateways
• Wireless repeaters
• Compact communication stations
• Remote data collection terminals

What’s Included

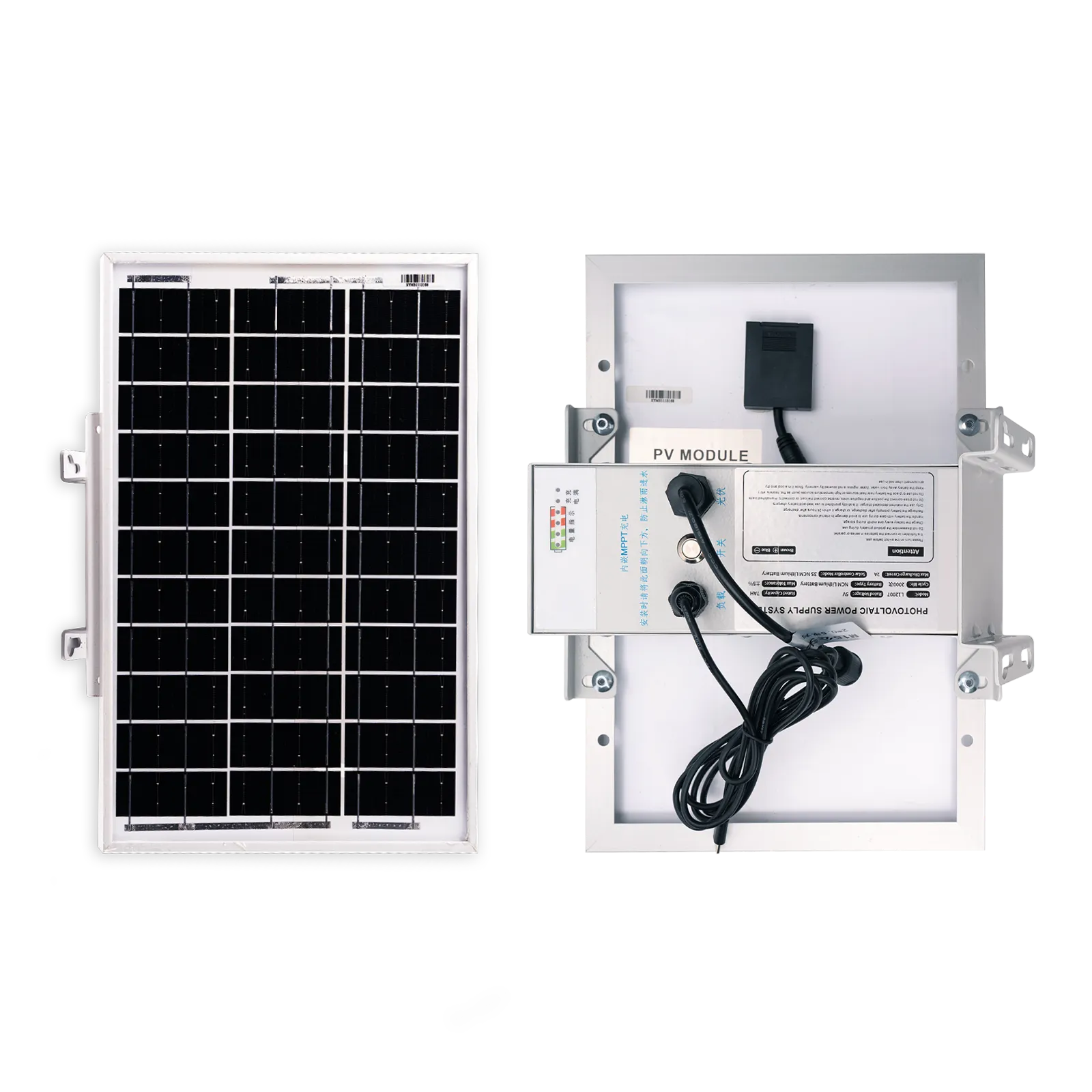

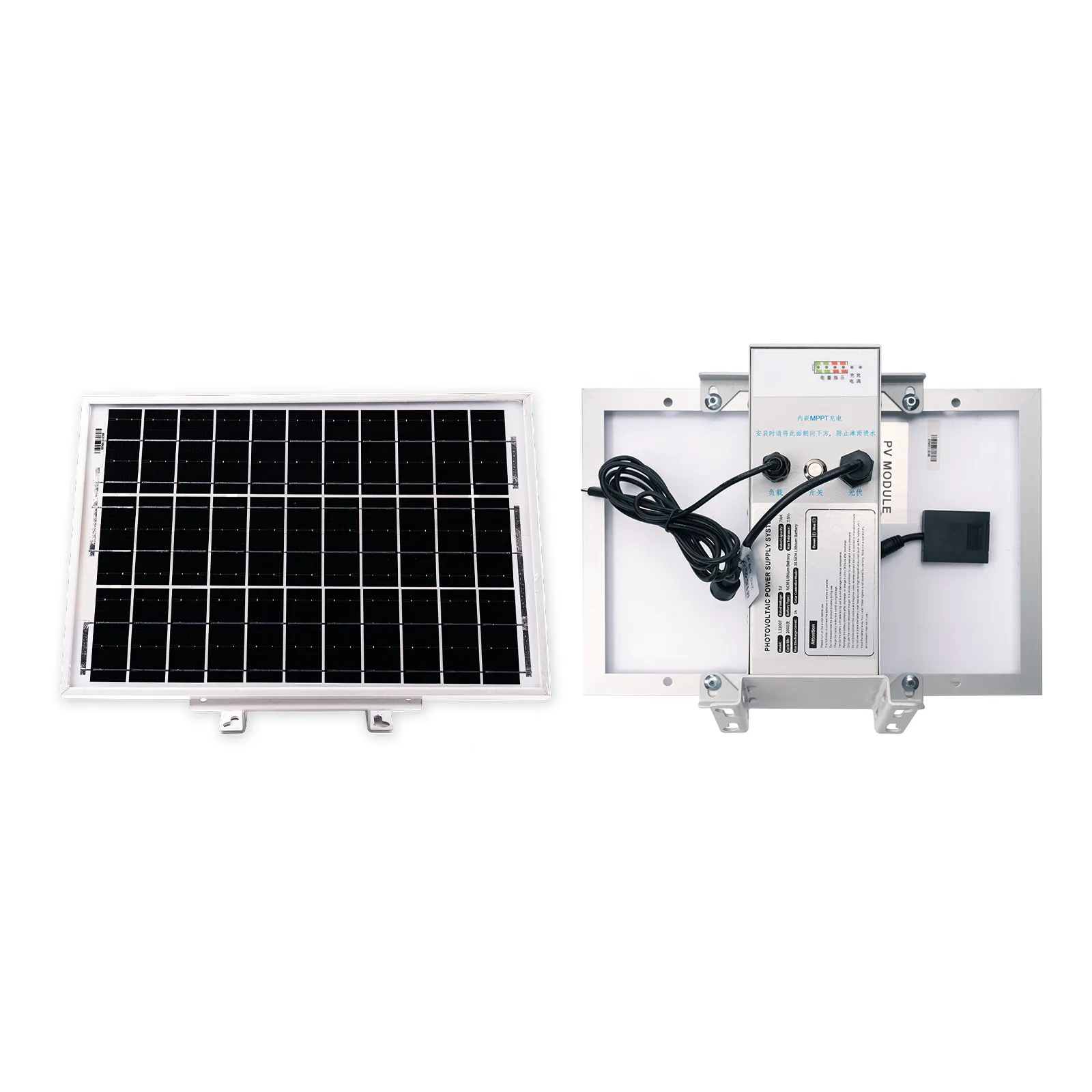

• 1× 10W Monocrystalline Solar Panel
• 1× L12007 7Ah Cylindrical Integrated Battery
• 1× Waterproof Aviation Connector Cable

Note: 1 unit per order. For additional quantities, please order separately.
