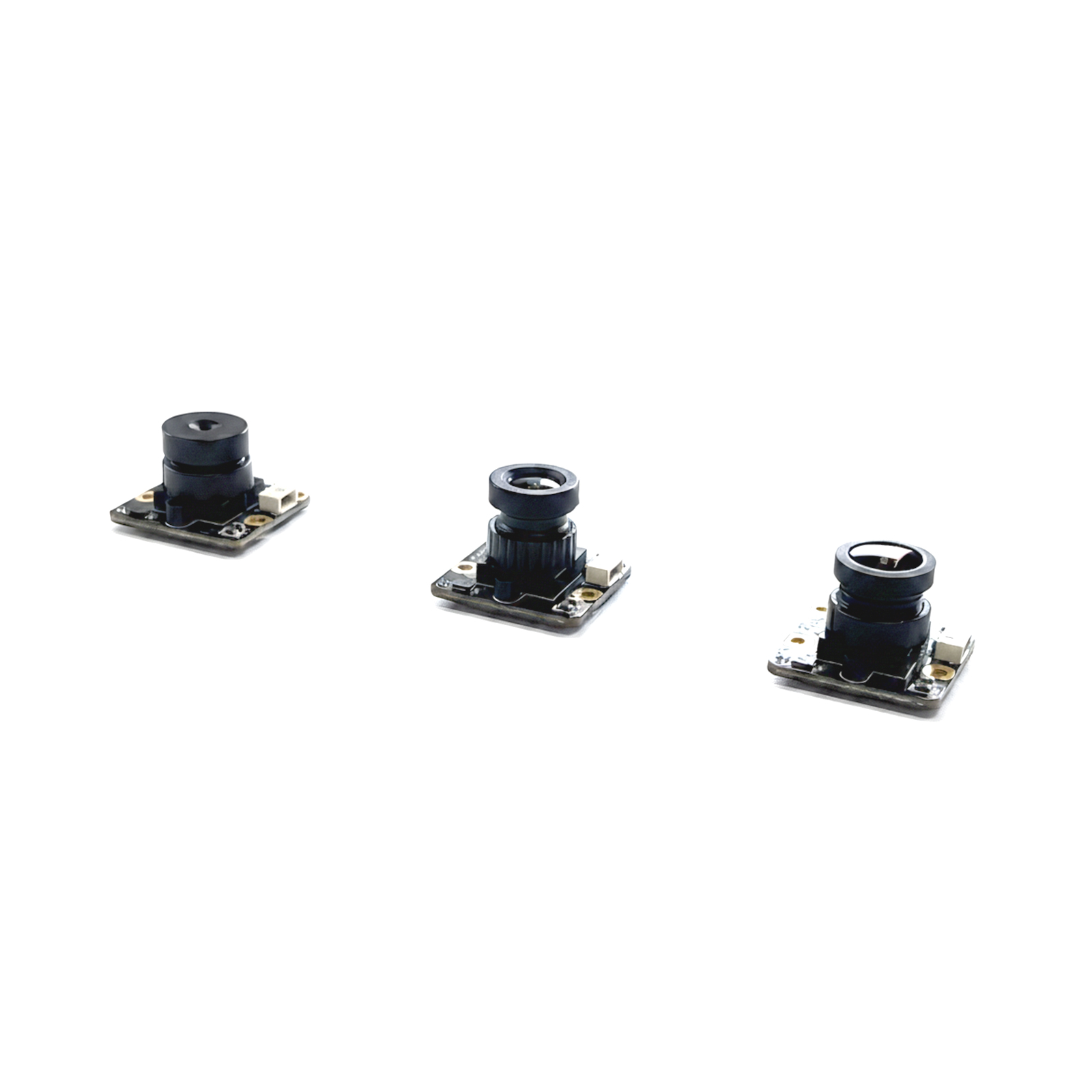

Three different modular vision camera lenses (USB/MIPI) for the NE101 Vision Camera

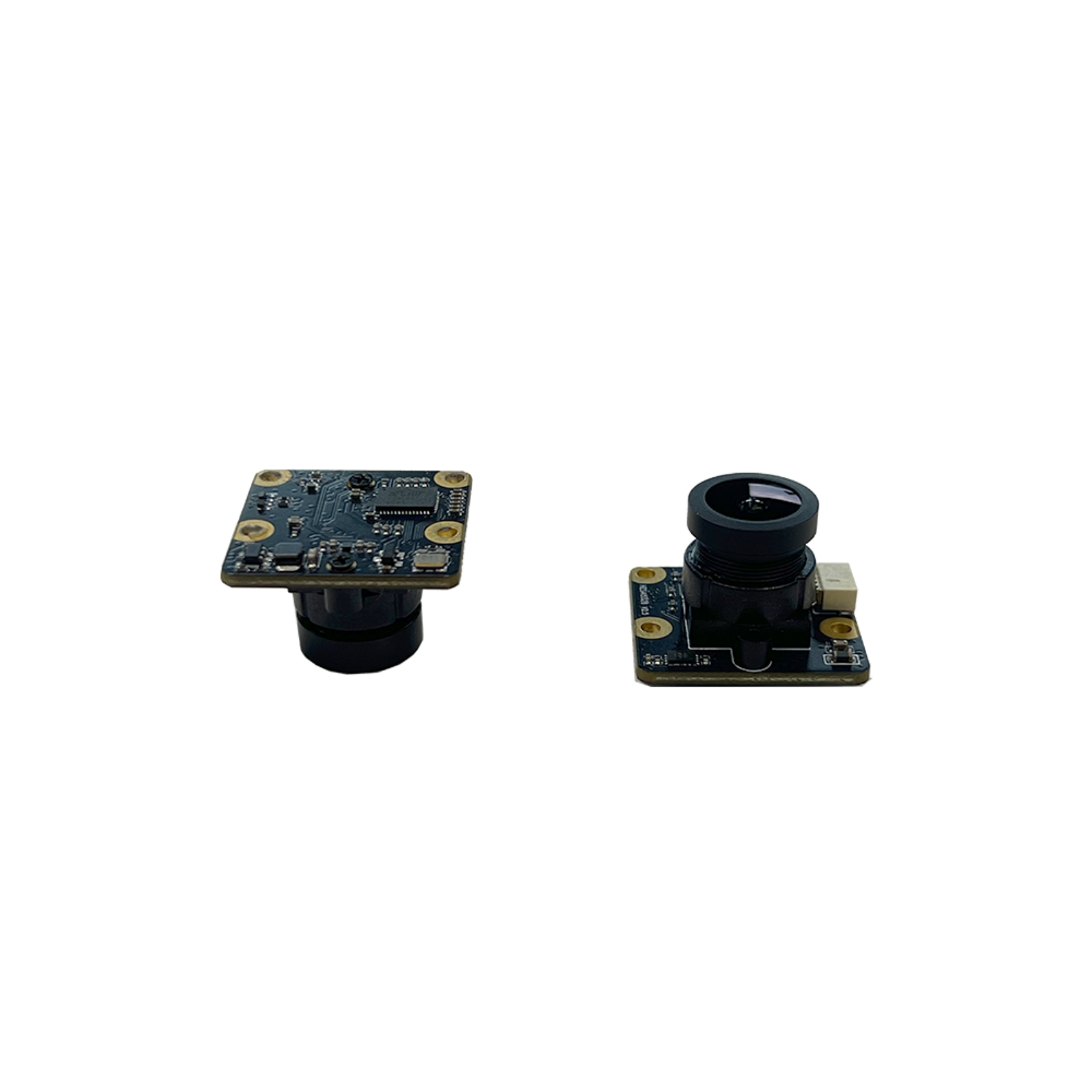

Two flat PCB-style USB/MIPI camera modules, optional accessories for NE101

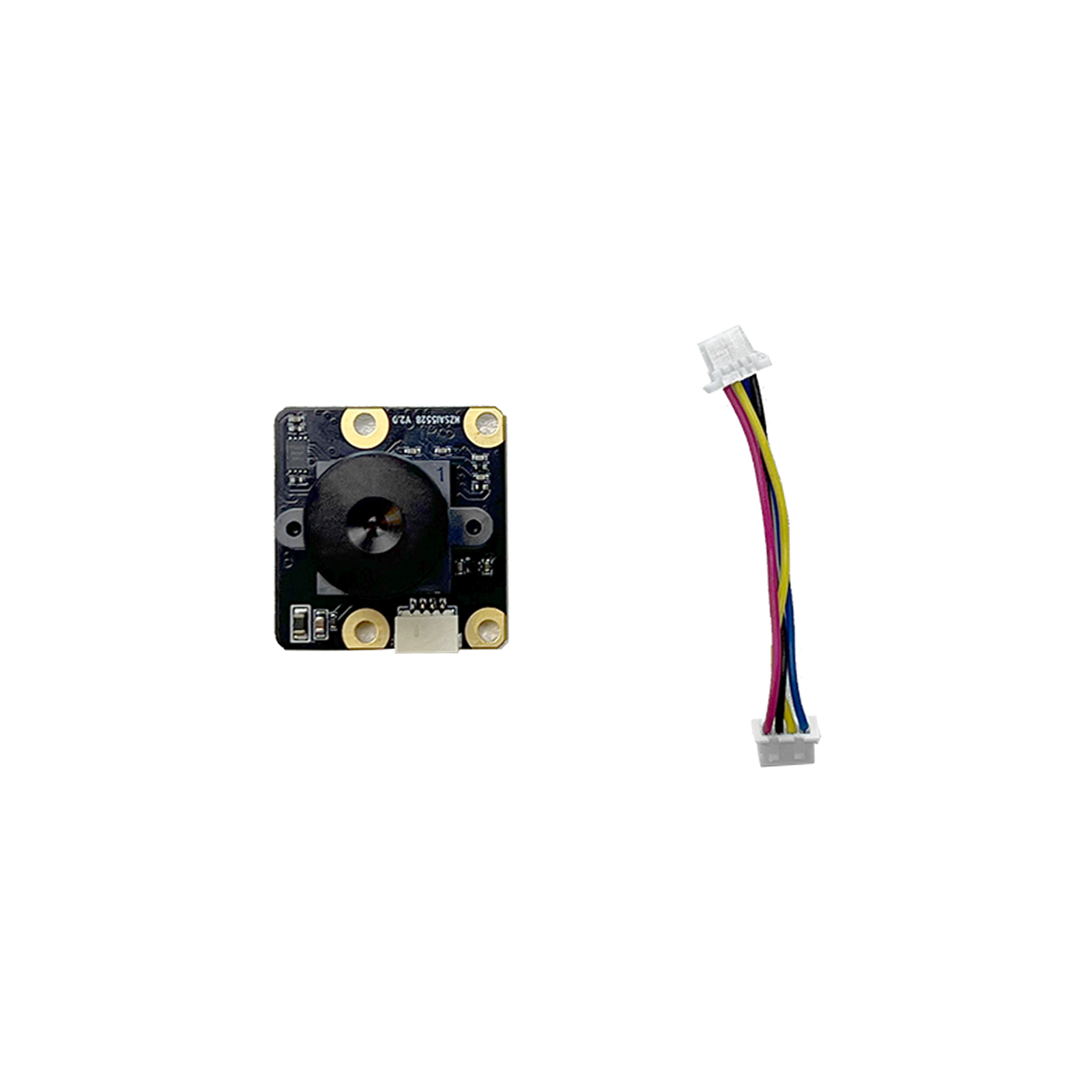

Single MIPI camera module accessory with connector cable

Comparison of different camera Field of View (FOV) options for NE101 in agriculture or field applications

Accessories

NeoEyes NE101 Modular Sensing Camera

NeoEyes NE101 Dev Kit - ESP32-S3 Modular Vision Camera Kit

$59.90

SC200AI USB Camera Module for NE101

$25.00

The SC200AI USB camera module adds 1920 x 1080 UVC imaging to the NeoEyes NE101 platform. Choose 51°, 88°, or 137° horizontal field of view with a matched 4 m, 3 m, or 2 m fixed-focus distance. It connects to the NE101 ESP32-S3 Development Board through the dedicated USB camera port.

SmartSens SC200AI CMOS sensor with up to 1920 x 1080 resolution.
Three fixed-focus options: 51° HFOV at 4 m, 88° HFOV at 3 m, or 137° HFOV at 2 m.
UVC-compliant USB connection for the NeoEyes NE101 and NE100-MB01 platform.
M12 lens mount with a 1/2.8-inch optical format.
Requires a compatible NE101 host and UVC firmware. The module is not a complete standalone camera.

51° HFOV, 4 m Fixed Focus
88°HFOV, 3m Fixed Focus
137°HFOV, 2m Fixed Focus

SKU: N/A Category: Modules & Dev Kits

Pay with Ease

Compatibility Guidance
Bulk Order Pricing
Project Purchase Support
Warranty Coverage
Worldwide Shipping

Important Compatibility Notice

This camera module is sold for the NeoEyes NE101 platform and its NE100-MB01 development board. Connect it only to the dedicated USB camera port using the matching cable. It does not use the 24-pin FPC connector intended for the OV5640 module.

The NE101’s ESP32-S3 USB host operates at USB 1.1 speed. Enable UVC support in the NE101 source project before testing the video stream.

The USB data lines share GPIO19 and GPIO20 with pins 13 and 15 on the 16-pin expansion header. Do not assign those pins to another function while the USB camera is active. Review the NE101 hardware connection and I/O conflict table before combining this camera with GPIO expansion or a Wi-Fi HaLow module.

Product Overview

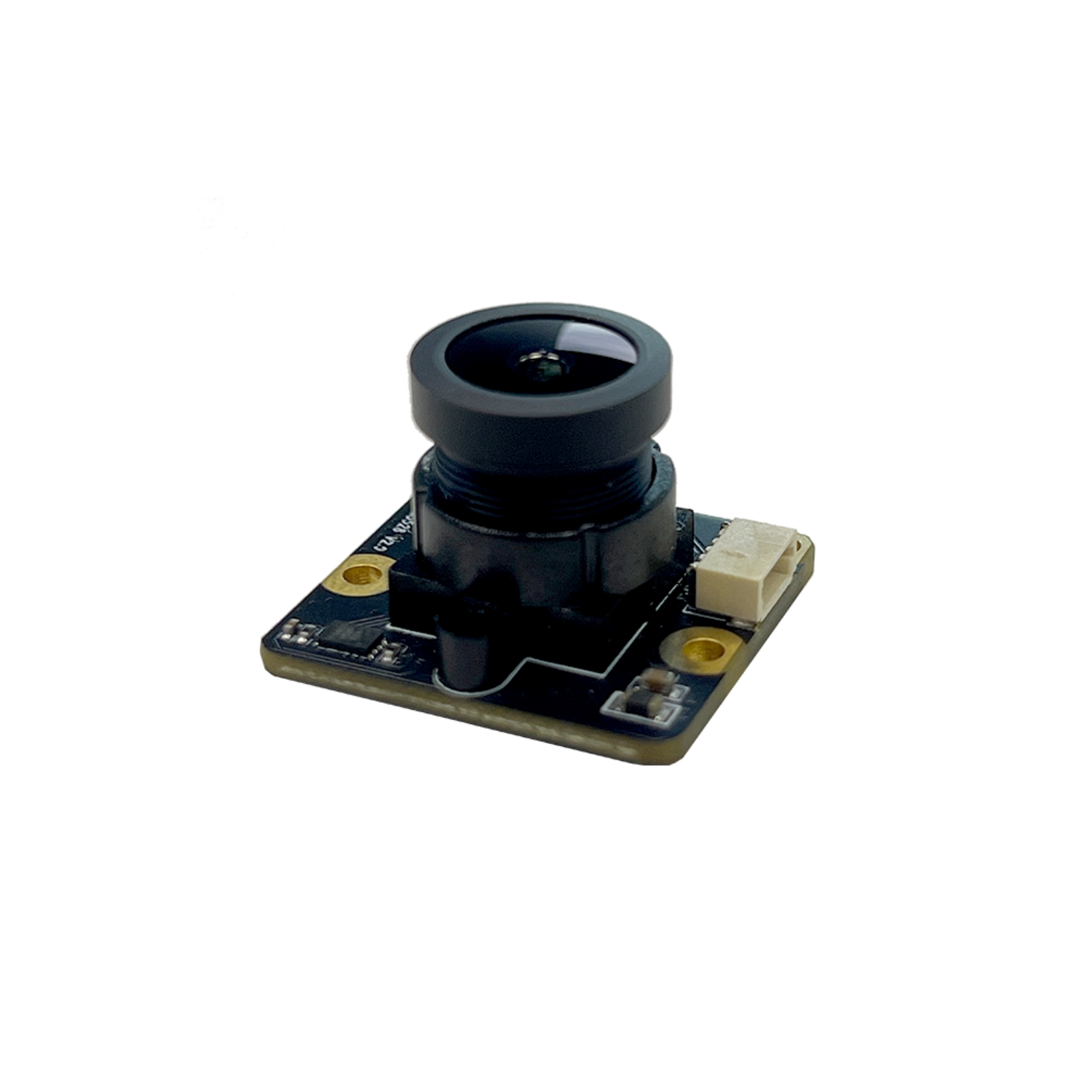

This module is the 1080p USB camera option for the NeoEyes NE101 Modular Sensing Camera. It uses a SmartSens SC200AI sensor, a UVC-compliant USB interface, and an M12 lens mount. Three lens configurations cover standard, wide, and ultra-wide views without changing the NE101 mainboard.

Choose the lens by working distance and scene width. The 51° version gives the tightest view and is preset for subjects around 4 m away. The 88° version balances coverage and detail at a 3 m focus distance. The 137° version covers the widest scene and is preset for a 2 m working distance. These are fixed-focus sales options, so select the required view and distance before ordering.

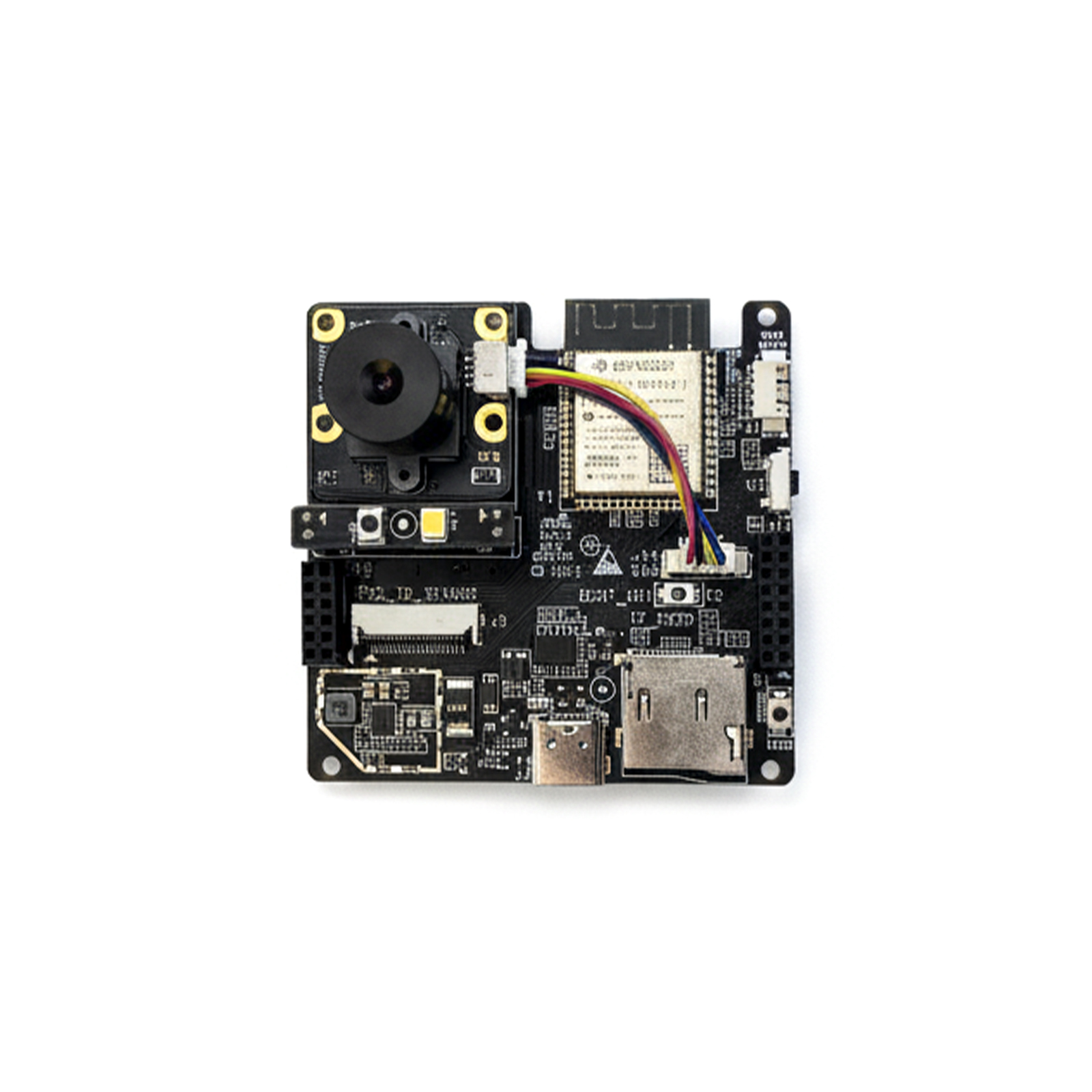

The module connects to the NE100-MB01 USB camera port. CamThink provides a source-code workflow for live video verification through the device web interface. For an assembly package with the board, enclosure, and standard OV5640 camera, choose the NeoEyes NE101 Dev Kit. If your project needs a smaller FPC camera with 5 MP still-image capture, compare the OV5640 Camera Module for NeoEyes NE101.

Choose the Right Lens

Model	Store option	Focus distance	Best fit	Selection note
SC200AI-51-4M	51° HFOV	4 m	Narrower view of a more distant subject	Choose when the target should fill more of the frame.
SC200AI-88-3M	88° HFOV	3 m	General wide-angle scene capture	A balanced option for rooms, equipment areas, and monitoring points.
SC200AI-137-2M	137° HFOV	2 m	Broad coverage at a shorter working distance	Choose when scene width matters more than distant detail.

The store selector uses horizontal field of view. CamThink’s component documentation separately lists diagonal field-of-view values of 59°, 97°, and 165° for the available lenses.

Product key features

1080p SC200AI imaging

The SC200AI sensor supports a maximum resolution of 1920 x 1080 and uses a 1/2.8-inch optical format. Actual frame rate, stream settings, and image quality depend on the NE101 firmware, selected lens, lighting, and USB host limits.

Three deployment-oriented views

The 51°, 88°, and 137° HFOV options let you match scene width to mounting distance. A tighter view preserves more subject detail in the frame, while a wider view reduces blind areas at shorter distances.

UVC workflow for NE101

CamThink documents a source-code workflow for the NE100-MB01. After connecting the module, enabling UVC support, and flashing the firmware, you can verify the stream through the NE101 web management interface.

M12 lens format

The module uses an M12 lens mount with 2.5 mm, 3 mm, and 6 mm lens options documented by CamThink. The store variants are sold with preset field-of-view and focus configurations.

Direct NE101 connection

The module connects to the NE100-MB01’s four-wire USB camera interface for power, ground, D-, and D+. The board connector supplies up to 500 mA. Use the matching cable and confirm connector orientation before applying power.

What’s in the Box?

1 x SC200AI USB camera module in the selected lens configuration
1 x USB connection cable
1 x mainboard connection cable
1 x USB module spacer/adapter

Imaging and optics

Item	Specification
Image sensor	SmartSens SC200AI CMOS
Optical format	1/2.8 inch
Maximum resolution	1920 x 1080
Lens mount	M12
Store FOV options	51°, 88°, or 137° HFOV
Documented diagonal FOV options	59°, 97°, or 165°
Documented focal length options	6 mm, 3 mm, or 2.5 mm, model dependent
Fixed-focus options	4 m, 3 m, or 2 m, model dependent

Interface and mechanical

Item	Specification
Communication	USB, UVC compliant
Verified host platform	NeoEyes NE101 / NE100-MB01
Host connector signals	VDD, GND, USB D-, USB D+
NE101 USB host limitation	USB 1.1
NE101 connector current	Up to 500 mA
Module dimensions	25 x 23.86 mm
Operating temperature	-20°C to 60°C
Storage temperature	-40°C to 85°C

Frequently asked questions

Q: Which lens should I choose?

A: Start with the target distance. Choose 51°/4 m for the tightest view, 88°/3 m for balanced coverage, or 137°/2 m for the widest scene at a shorter distance.

Q: Is the focus adjustable?

A: The store variants are specified with preset 4 m, 3 m, or 2 m focus distances. Select the required configuration when ordering.

Q: Does the module work as soon as it is connected?

A: The hardware uses UVC, but the NE101 host needs UVC-enabled firmware. CamThink documents the source-code setup for the NE100-MB01.

Q: Can I use all 16-pin expansion I/O with the USB camera?

A: No. USB D- and D+ use GPIO19 and GPIO20, which are also exposed as pins 13 and 15 on the 16-pin expansion header. Keep those pins reserved while the USB camera is active.

Q: Is the bare module weatherproof?

A: No ingress-protection rating is specified for the bare module. Outdoor use depends on a suitable enclosure, cable routing, sealing, and validation of the complete assembly.
