NG4500 Jetson Orin Nano/NX AI Box
Price range: $1,099.00 through $1,599.00
NeoEdge NG4500 is an industrial edge AI box based on NVIDIA Jetson Orin Nano/NX, built for local vision AI, LLM/VLM inference, robotics, industrial inspection, and AIoT gateways. Choose Orin Nano 8GB, Orin NX 8GB, or Orin NX 16GB, with up to 157 INT8 TOPS in SUPER mode, rich industrial I/O, M.2 expansion, fanless cooling, and 12 to 36V DC deployment.
Important Notes:
- SSD and Wi-Fi/4G/5G modules are NOT included in the current online SKU. They are vailable separately.
- If you need SSD please contact us to purchase.
- JetPack is pre-installed by default. Leave a customer note at checkout if NOT needed.
SKU: N/A
Category: Edge AI Boxes
Pay with Ease
Fast International Shipping
30-Day Money-Back Guarantee
Hassle-free Warranty
Lifetime Customer Support

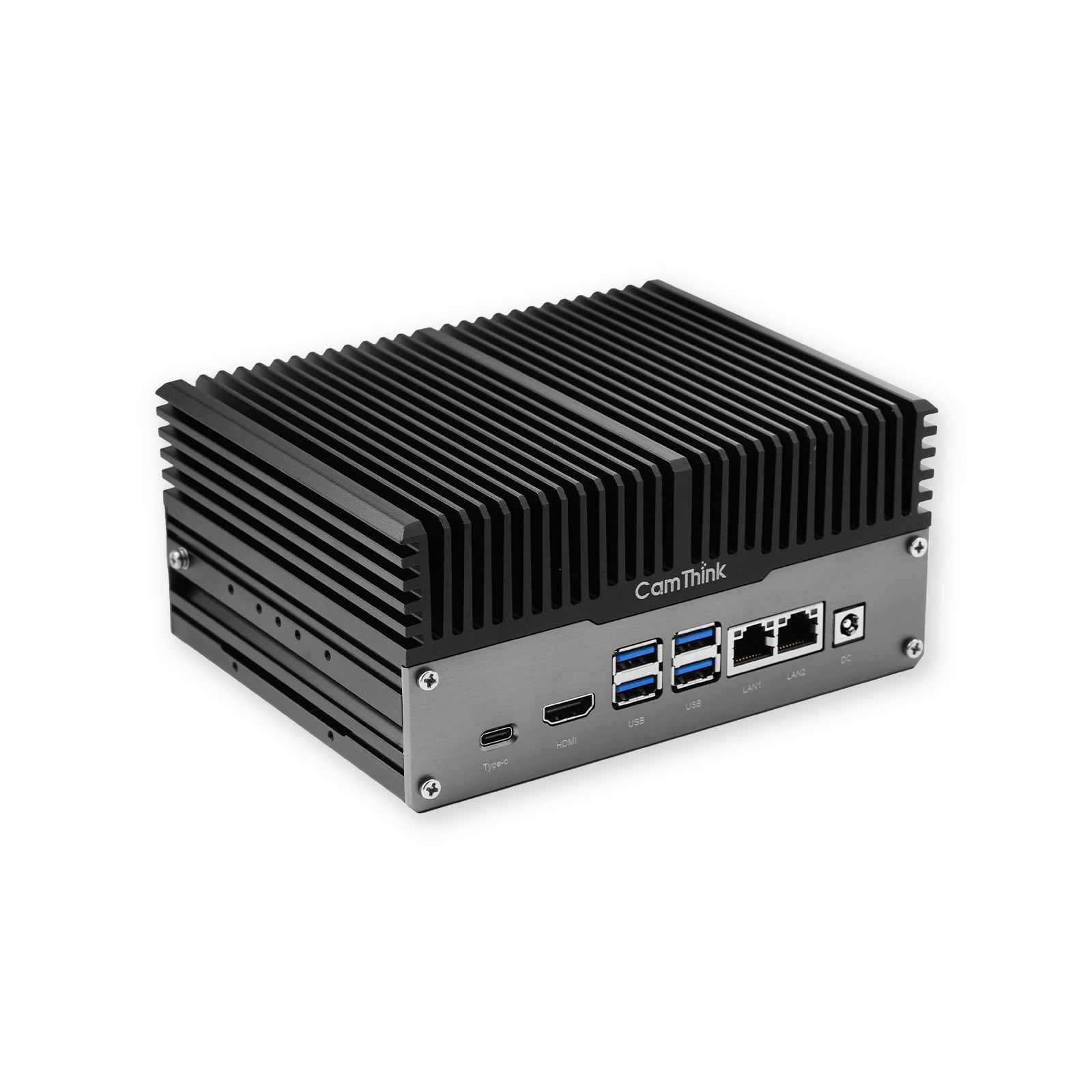

Product Overview
NeoEdge NG4500 is a Jetson Orin based edge AI box for teams that need local AI processing outside a cloud server. It can run vision models, video analytics pipelines, local LLM demos, robotics workloads, and industrial control integrations directly at the edge. For the full platform introduction, see the NG4500 Product Overview.

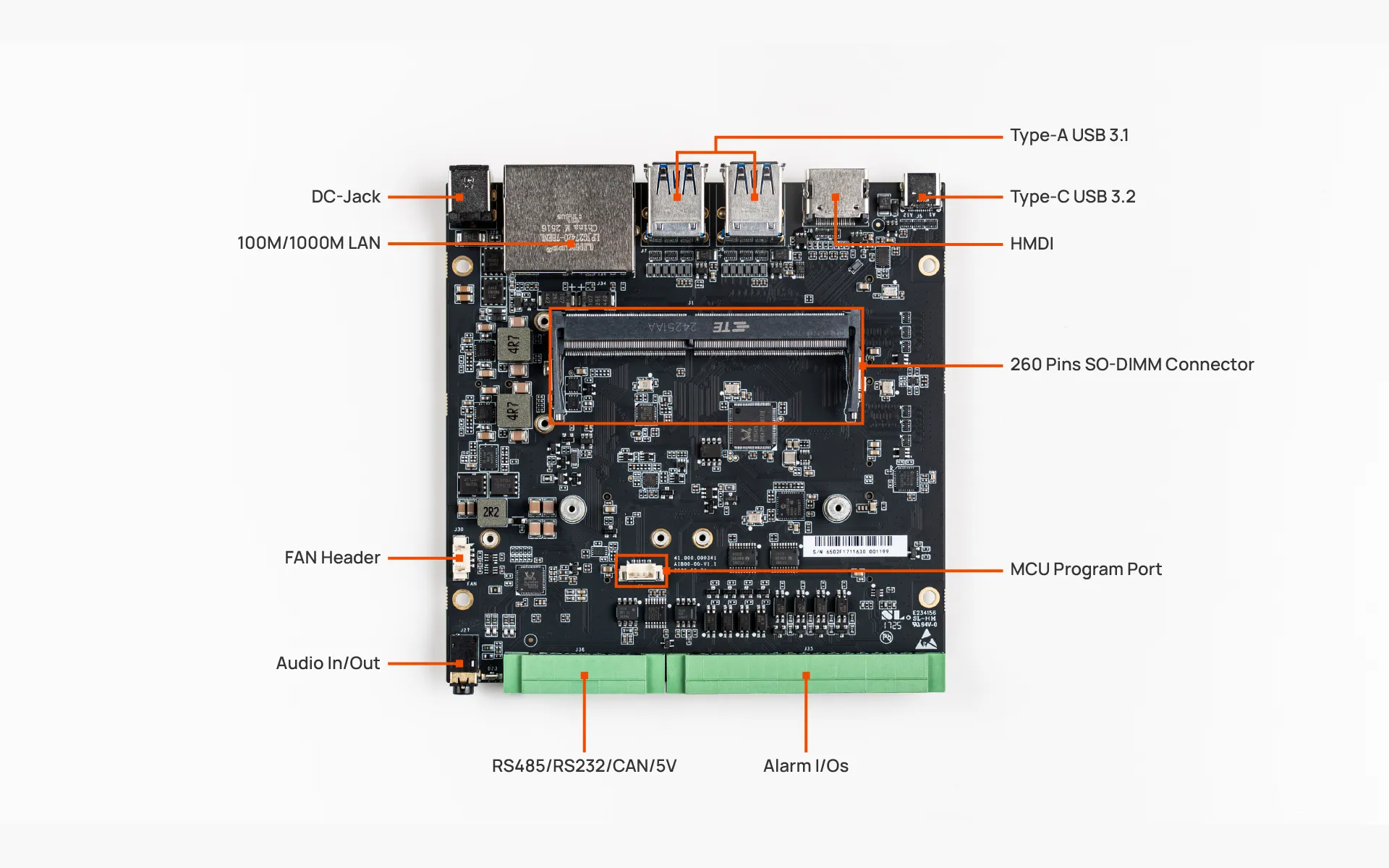

Compared with a bare Jetson carrier board, NG4500 is packaged as a deployable industrial system. It combines a metal enclosure, wide-voltage DC input, dual LAN, USB, HDMI, audio, DI/DO, RS232, RS485, CAN, M.2 storage, Wi-Fi/Bluetooth expansion, and 4G/5G expansion in one device. Interface layout and wiring details are covered in the NG4500 Hardware Connection Guide.
For developers and system integrators, NG4500 supports the JetPack ecosystem with CUDA, TensorRT, DeepStream, Docker, JupyterLab, Ollama, and documented application examples. Start with the NG4500 Quick Start Guide before planning firmware setup, first boot, or module installation.
Key Features
Jetson Orin edge AI platform
NG4500 supports Jetson Orin Nano and Orin NX modules. The Orin NX 16GB configuration provides up to 1024 NVIDIA CUDA cores, 32 Tensor cores, 16GB LPDDR5 memory, and 157 INT8 TOPS in SUPER mode.
Local AI inference and video analytics
The platform supports computer vision, LLM, VLM, MLLM, and visual transformer workloads. Documented workflows include YOLOv11 object detection on NG4500, DeepStream on NG4500, Ollama on NG4500, and DeepSeek-R1 local deployment on NG4500.
Industrial I/O and field integration
NG4500 provides dual Gigabit Ethernet, RS232, RS485, CAN, DI, DO, HDMI, audio, USB, and Type-C access. It can connect to cameras, PLCs, sensors, industrial gateways, and local control systems.
Expandable storage and communication

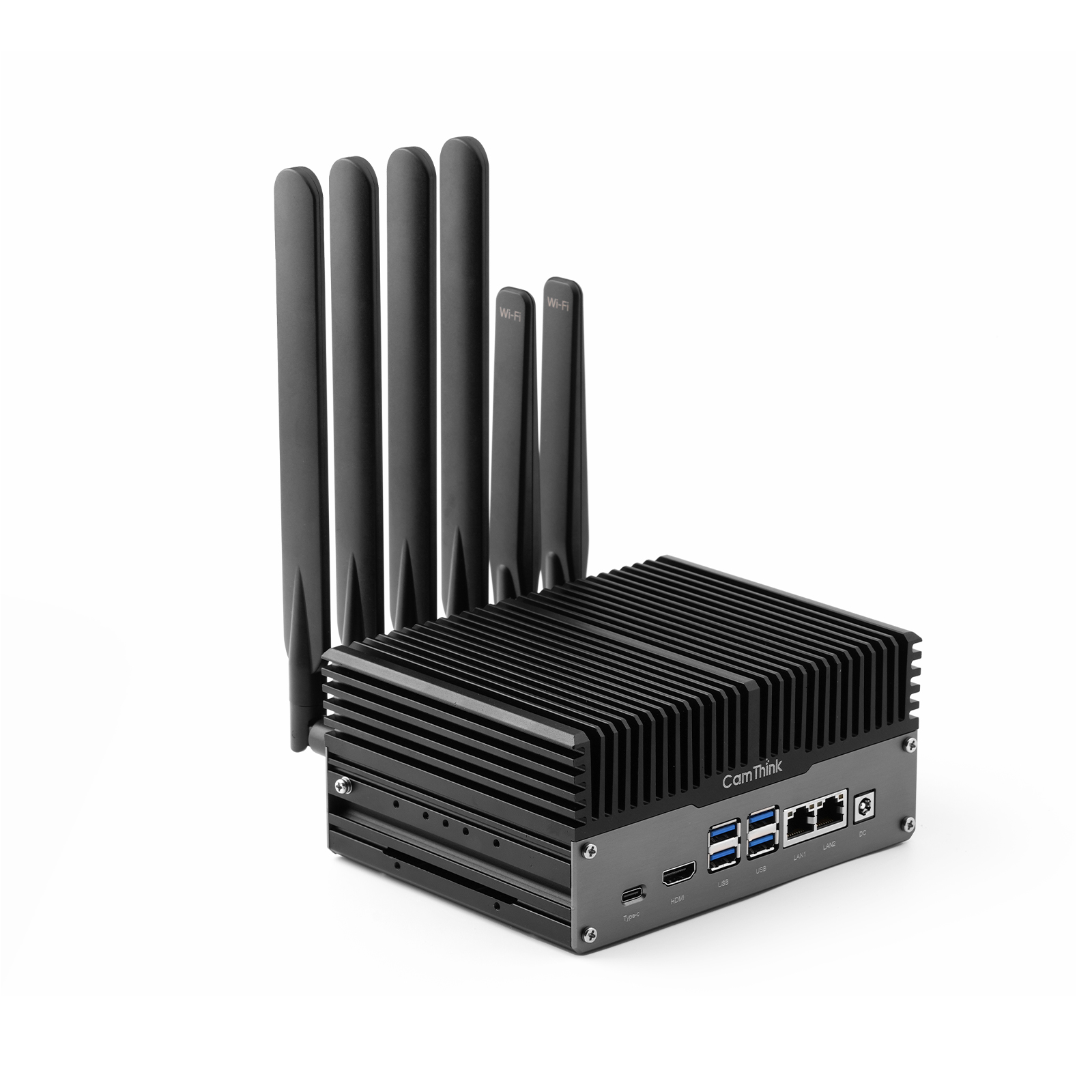

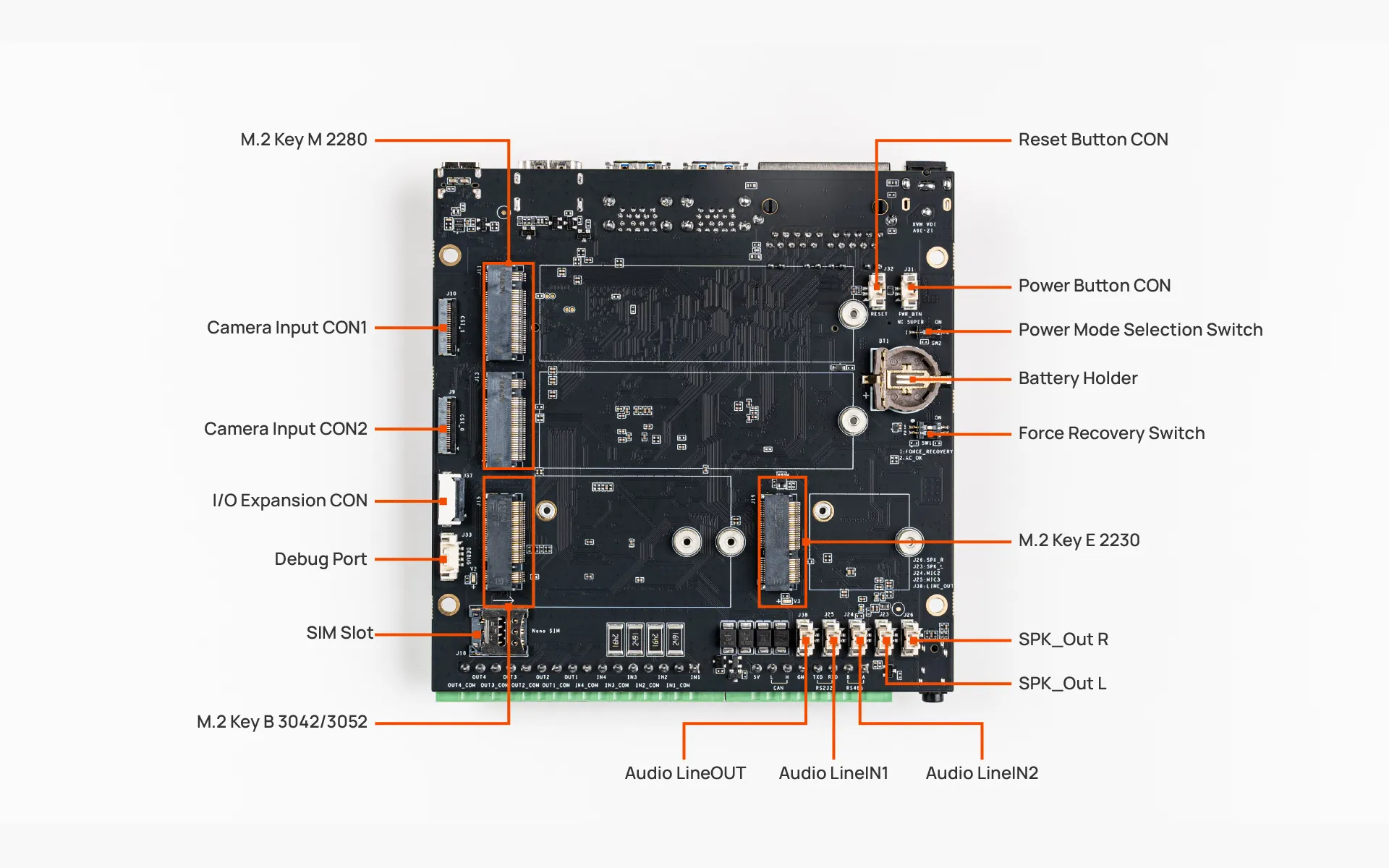

The device includes M.2 Key M storage slots, M.2 Key B for 4G/5G modules, M.2 Key E for Wi-Fi/Bluetooth, a Nano SIM slot, and SMA antenna connectors for wireless configurations.
Industrial enclosure and deployment
The fanless metal enclosure supports 12 to 36V DC input, -25°C to 60°C operation, and desk, wall, or DIN-rail installation. For software environment preparation, see the NG4500 Development Environment Setup.
Choose the Right SKU
| Platform | AI Performance | Choose This If | |
|---|---|---|---|
| Orin Nano 8GB | Jetson Orin Nano 8GB / NG4511 | 40 TOPS, 67 INT8 TOPS in SUPER mode | You need an entry Jetson Orin edge AI box for vision demos, gateway use, and moderate local inference. |
| Orin NX 8GB | Jetson Orin NX 8GB / NG4520 | 70 TOPS, 117 INT8 TOPS in SUPER mode | You need more compute headroom for vision AI, robotics, or multi-service edge deployment. |
| Orin NX 16GB | Jetson Orin NX 16GB / NG4521 | 100 TOPS, 157 INT8 TOPS in SUPER mode | You plan to run larger models, heavier video workloads, or multiple AI services on one device. |
What’s Included
- 1x NeoEdge NG4500 Edge AI Box, configured with selected Jetson module
- 1x 12V power adapter
- 1x selected regional power cord
- 2x industrial terminal blocks
- Mounting bracket kit for wall or DIN-rail installation
Optional / Customer-Provided Items
- NVMe SSD ( Please contact us if need)
- Wi-Fi/Bluetooth module
- 4G or 5G module
- SIM card for cellular use
- Cameras, sensors, antennas, and project-specific cables
NeoEdge NG4500 Specifications
Core Platform
|
Product Model |
NeoEdge NG4500 Series |
|
Product Type |
Industrial Edge AI Box / Jetson Orin AI Gateway |
|
Available Online Options |
Orin Nano 8GB, Orin NX 8GB, Orin NX 16GB |
|
Compute Module |
NVIDIA Jetson Orin Nano / Orin NX |
|
AI Performance |
40 TOPS / 70 TOPS / 100 TOPS depending on selected module |
|
AI Performance in SUPER Mode |
Up to 67 / 117 / 157 INT8 TOPS depending on selected module |
|
GPU |
Up to 1024 NVIDIA CUDA cores + 32 Tensor cores |
|
CPU |
Up to 8-core Arm Cortex-A78AE |
|
Memory |
8GB or 16GB LPDDR5 depending on selected module |
|
Operating System |
Linux |
|
SDK |
NVIDIA JetPack 6.0+ |
AI & Software
|
AI Frameworks |
TensorFlow/Keras, PyTorch, ONNX Runtime, TensorRT, Ultralytics, Ollama, llama.cpp, vLLM |
|
NVIDIA Toolchain |
CUDA, cuDNN, TensorRT, DeepStream |
|
Container Support |
Docker with NVIDIA Container Runtime |
|
Development Tools |
JupyterLab, SSH, RDP, jtop, Jetson system flashing workflow |
|
Application Examples |
YOLOv11 object detection, DeepSeek-R1 local deployment, MediaPipe pose estimation, DINOv3, Nx Meta VMS |
|
Local AI Workloads |
Computer vision, LLM, VLM, MLLM, visual transformer, robotics, AIoT gateway applications |
Learn more in NG4500 Development Environment Setup
Industrial I/O & Expansion
|
Digital Input |
4 x DI |
|
Digital Output |
4 x DO |
|
Serial Interface |
RS232, RS485 |
|
Fieldbus |
CAN |
|
Power Output |
5V output terminal |
|
Storage Expansion |
M.2 Key M SSD, PCIe x4 and PCIe x1 |
|
Camera Input |
2 x MIPI CSI camera connectors, 4 lanes supported |
|
Expansion I/O |
GPIO, SPI, I2C, 3.3V output through expansion connector |
|
RTC |
CR2032 / CR1220 RTC battery holder documented in hardware guides |
Learn more in NG4500 Hardware Connection Guide
Power & Deployment Environment
|
Power Input |
12 to 36V DC |
|
Peak Power |
120W |
|
Cooling |
Fanless passive cooling |
|
Operating Temperature |
-25°C to 60°C |
|
Storage Temperature |
-40°C to 85°C |
|
Operating Humidity |
0% to 90% RH, non-condensing |
|
Installation |
Desk, wall mounting, DIN-rail |
Mechanical & Compliance
|
Dimensions |
160 x 125 x 75 mm |
|
Store Shipping Dimensions |
40 x 30 x 21 cm |
|
Enclosure |
Aluminum |
|
Certifications |
CE / FCC |
|
Warranty |
2 years |
Purchase Configuration
|
Jetson Module Options |
Orin Nano 8GB, Orin NX 8GB, Orin NX 16GB |
|
Power Cord Options |
UK, US, EU, AU |
|
Not Included by Default |
SSD and Wi-Fi/4G/5G modules, antennas, camera modules |
