NeoEdge Jetson Orin Nano/NX Edge AI Box
CamThink NG4500 Edge AI Box with full antenna setup for high-performance wireless connectivity
Close-up of NG4500 front interface showing USB 3.1, HDMI, and Gigabit LAN ports
Angled front-left view of NG4500 showcasing fanless metal housing and connectivity
Rear view of NG4500 AI Box with terminal block connectors for DI/DO, RS485, CAN and labeled interfaces
Rear view of NG4500 AI Box with terminal block connectors for DI/DO, RS485, CAN and labeled interfaces
NG4500 industrial AI Box and modular expansion board shown separately for clarity
CamThink NG4500 dimensions labeled: 160mm width, 120mm depth, 75.5mm height
  1. NeoEdge Jetson Orin Nano/NX Edge AI Box
  2. CamThink NG4500 Edge AI Box with full antenna setup for high-performance wireless connectivity
  3. Close-up of NG4500 front interface showing USB 3.1, HDMI, and Gigabit LAN ports
  4. Angled front-left view of NG4500 showcasing fanless metal housing and connectivity
  5. Rear view of NG4500 AI Box with terminal block connectors for DI/DO, RS485, CAN and labeled interfaces
  6. Rear view of NG4500 AI Box with terminal block connectors for DI/DO, RS485, CAN and labeled interfaces
  7. NG4500 industrial AI Box and modular expansion board shown separately for clarity
  8. CamThink NG4500 dimensions labeled: 160mm width, 120mm depth, 75.5mm height

Accessories

Dual-Band Wi-Fi 5 + Bluetooth 5.0 Module
Dual-Band Wi-Fi 5 + Bluetooth 5.0 Module
$28.00
+
Quectel 4G Module
Quectel 4G Module
$60.00
+

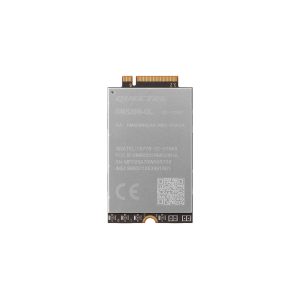

Quectel 5G Module – M.2 B-Key, PCIe/USB, GNSS
Quectel 5G Module – M.2 B-Key, PCIe/USB, GNSS
$248.00
+
High-efficiency heatsink duct for compact edge device ventilation
Jetson Orin™ Active Heat Sink for Edge AI Box
$13.30
+

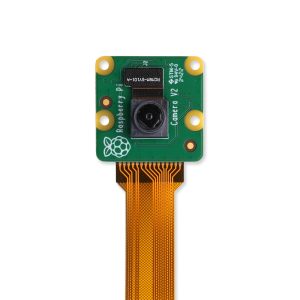

Raspberry Pi Camera Module V2 - IMX219 Sensor 8MP
Raspberry Pi Camera Module V2 - IMX219 Sensor 8MP
$40.00
+
Raspberry Pi Camera Module HQ Sony IMX477 12MP
Raspberry Pi Camera Module HQ Sony IMX477 12MP
$118.00
+
NeoEdge Carrier Board for Jetson Orin Nano/NX
NeoEdge Carrier Board for Jetson Orin Nano/NX
$249.00
+

NeoEdge Jetson Orin Nano/NX Edge AI Box

Price range: $899.00 through $1,599.00

Important Notes:

  • SSD and Wi-Fi/4G/5G modules are NOT included. Available separately, contact us to purchase.
  • JetPack is pre-installed by default. Leave a customer note at checkout if NOT needed.
SKU: N/A Category:

Pay with Ease

Apple Pay

Fast International Shipping

30-Day Money-Back Guarantee

Hassle-free Warranty

Lifetime Customer Support

Overview

Designed for Real-World AI. Built for Developers.

The CamThink NeoEdge NG4500 series is a high-performance industrial-grade Edge AI computing platform powered by NVIDIA® Jetson Orin™ Nano/NX modules. Supporting up to
157 TOPS (INT8, SUPER mode), it delivers robust performance for LLMs, VLMs, ViTs, and other compute-intensive applications.

From AI vision systems and robotics to smart manufacturing and edge gateways, NG4500 empowers developers to deploy generative AI at the edge with stability, speed, and flexibility.

Key Features

Feature Description
AI Performance Up to 157 TOPS (SUPER mode), supports LLMs/VLMs/MM LLMs
Jetson Orin Support Compatible with Orin Nano (4GB/8GB) and Orin NX (8GB/16GB)
Rich I/O Interfaces 2×Gigabit Ethernet, 4×USB 3.1, 1×USB-C 3.2, RS232/485, CAN, DI/DO
Storage Expansion Dual M.2 Key M slots (PCIe x4 and PCIe x1), up to 1TB NVMe SSD
Connectivity M.2 Key B: 4G/5G, M.2 Key E: Wi-Fi/Bluetooth
Video Input/Output 4K HDMI + 2×MIPI camera interfaces
Audio Interface Mic-in + Audio out (3.5mm jack)
Industrial Power Design 12V–36V DC input, peak power 120W
Fanless Passive Cooling Quiet, durable, and reliable in harsh conditions
Wide Temp Operation -25°C to +60°C operating range
Mounting Options Desktop, Wall Mount, DIN Rail
Certifications CE / FCC / RoHS

Performance Levels

Model Jetson Module Standard TOPS SUPER TOPS (INT8) DRAM GPU Cores / Tensor Cores
NG4510 Orin Nano 4GB 20 TOPS 34 TOPS 4GB 512 / 16
NG4511 Orin Nano 8GB 40 TOPS 67 TOPS 8GB 512 / 16
NG4520 Orin NX 8GB 70 TOPS 117 TOPS 8GB 1024 / 32
NG4521 Orin NX 16GB 100 TOPS 157 TOPS 16GB 1024 / 32

All models support JetPack 6.0 SDK, CUDA, TensorRT, DeepStream, and mainstream AI frameworks like PyTorch, ONNX, TensorFlow, VLLM, Ollama, llama.cpp, etc.

Connectivity & Interfaces

  • Ethernet: 2× RJ45 (Gigabit LAN)

  • USB: 4× USB 3.1 Type-A, 1× USB 3.2 Type-C

  • Serial: RS232, RS485, CAN

  • DI/DO: 4× Digital, Inputs, 4× Digital Outputs

  • Storage: 2× M.2 Key M (1× PCIe x4 SSD, 1× PCIe x1)

  • Expansion:

    • M.2 Key B (4G/5G cellular modules)

    • M.2 Key E (Wi-Fi 6/Bluetooth 5.0)

  • Display: HDMI 4K
    Output

  • Camera: 2× MIPI CSI interfaces

  • Audio: Mic in + Audio out (3.5mm jack)

  • Antenna Ports: 4–6 SMA (Wi-Fi/4G/5G)

  • SIM Card Slot: Nano SIM supported

Rugged Design for Edge Environments

Spec Description
Operating Temperature -25°C to +60°C
Storage Temperature -40°C to +85°C
Humidity 0% – 90% RH (non-condensing)
Cooling Fanless, passive aluminum heatsink
Power Supply 12V–36V DC input, peak 120W
Dimensions 160mm × 125mm × 75mm
Weight 1.9 kg
Mounting Options Desk, Wall, DIN-rail
Certifications CE / FCC
Warranty 2 years

 What‘s in the Package

  • 1× CamThink NG4500 Edge AI Box (pre-configured)

  • 1× Power Adapter (12V)

  • 1× Power Cord EU

  • 1× Wall / DIN Mount Kit

Important Note:

  • SSD and Wi-Fi/4G/5G modules are NOT included. Available separately, contact us to purchase.
  • JetPack is pre-installed by default. Leave a customer note at checkout if NOT needed.
