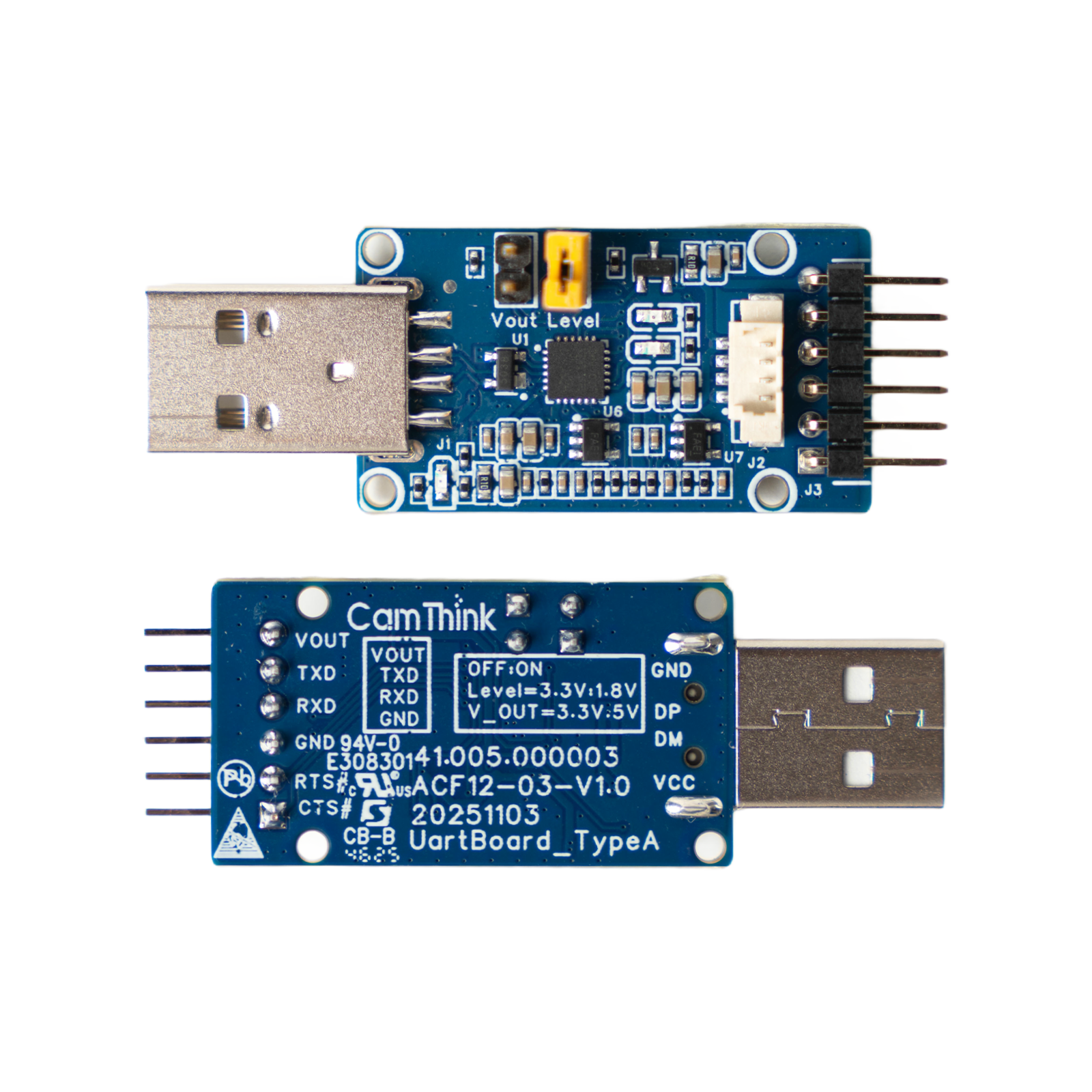

Universal Serial Adapter (Type-C / USB to UART TTL )

Key Features

• CP2102 USB-to-UART Bridge: Onboard CP2102 chipt, supporting 3.3V logic level. Universal serial port debugger, also suitable for NE101 & NE301 development boards and general embedded serial debugging.
• Wide OS Compatibility: Works with Windows 7 / 8 / 10 / 11, macOS, Linux, Android, and WinCE. Enumerates as a standard virtual COM port.
• Full UART Signals & Visual Status: Breaks out TXD, RXD, RTS, CTS via angled pin headers. Includes TX, RX, and Power LEDs for real-time communication status.
• External Power Output Supported: Provides 5V or 3.3V output for powering external target devices during development.
• ESD Protection: Integrated ESD5V0L3 USB protection
• Industrial Temperature Range: Operating temperature of -40°C to +85°C for reliable long-term use.

---

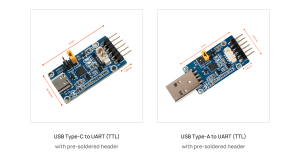

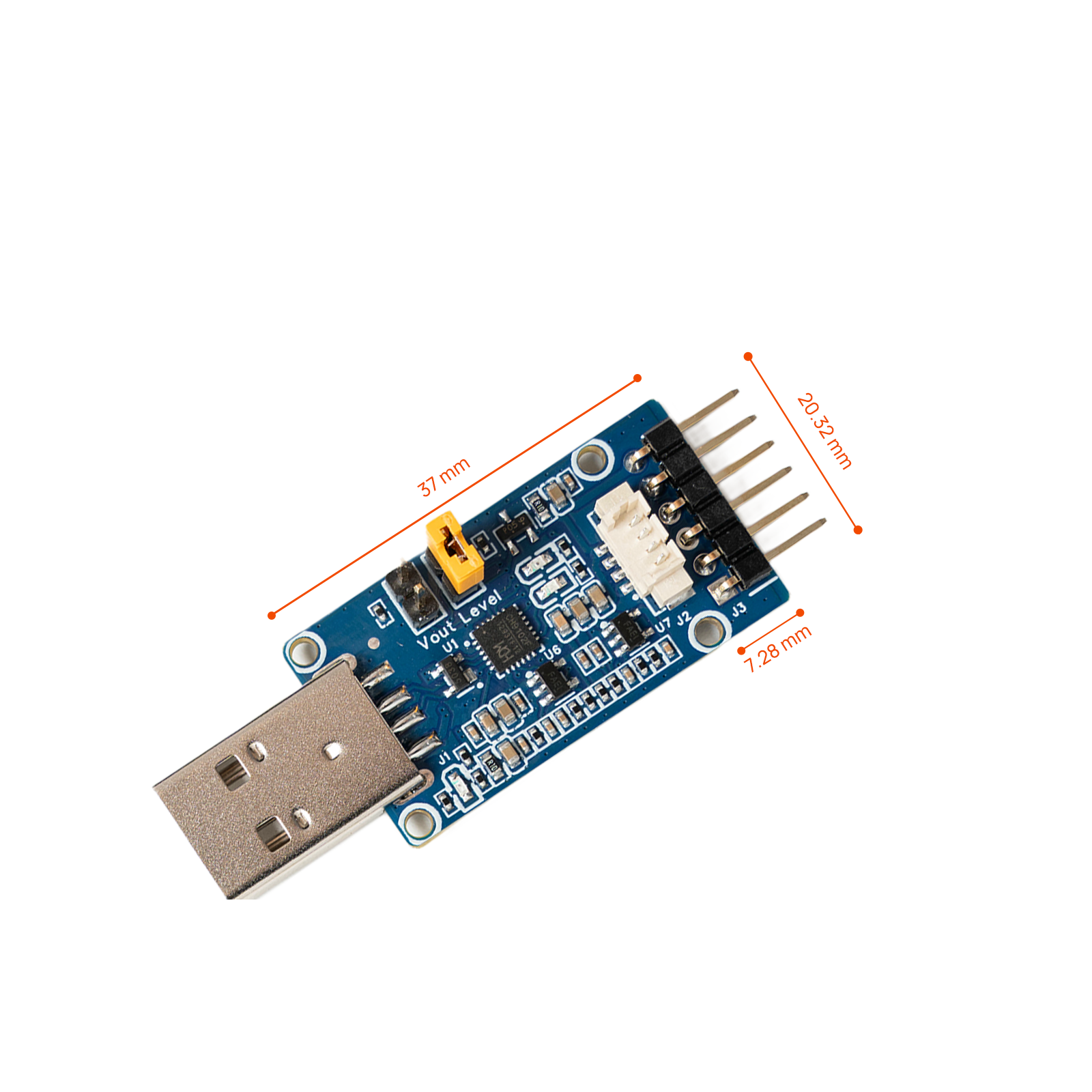

Compact Size

Easy to integrate into the device.

---

Multiple Systems Support

Works with Windows 7 / 8 / 10 / 11, macOS, Linux, Android, and WinCE.

---

Specs

Main Chip	CP2102 single-chip
Output VCC	3.3V default
Speed	300 bps – 3 Mbps
Receiver buffer	576 bytes
Transmit buffer	640 bytes
Hardware flow control	RTS / CTS
Software flow control	X-On / X-Off
Data bits	5 / 6 / 7 / 8
Stop bits	1 / 1.5 / 2
Parity	None / Odd / Even

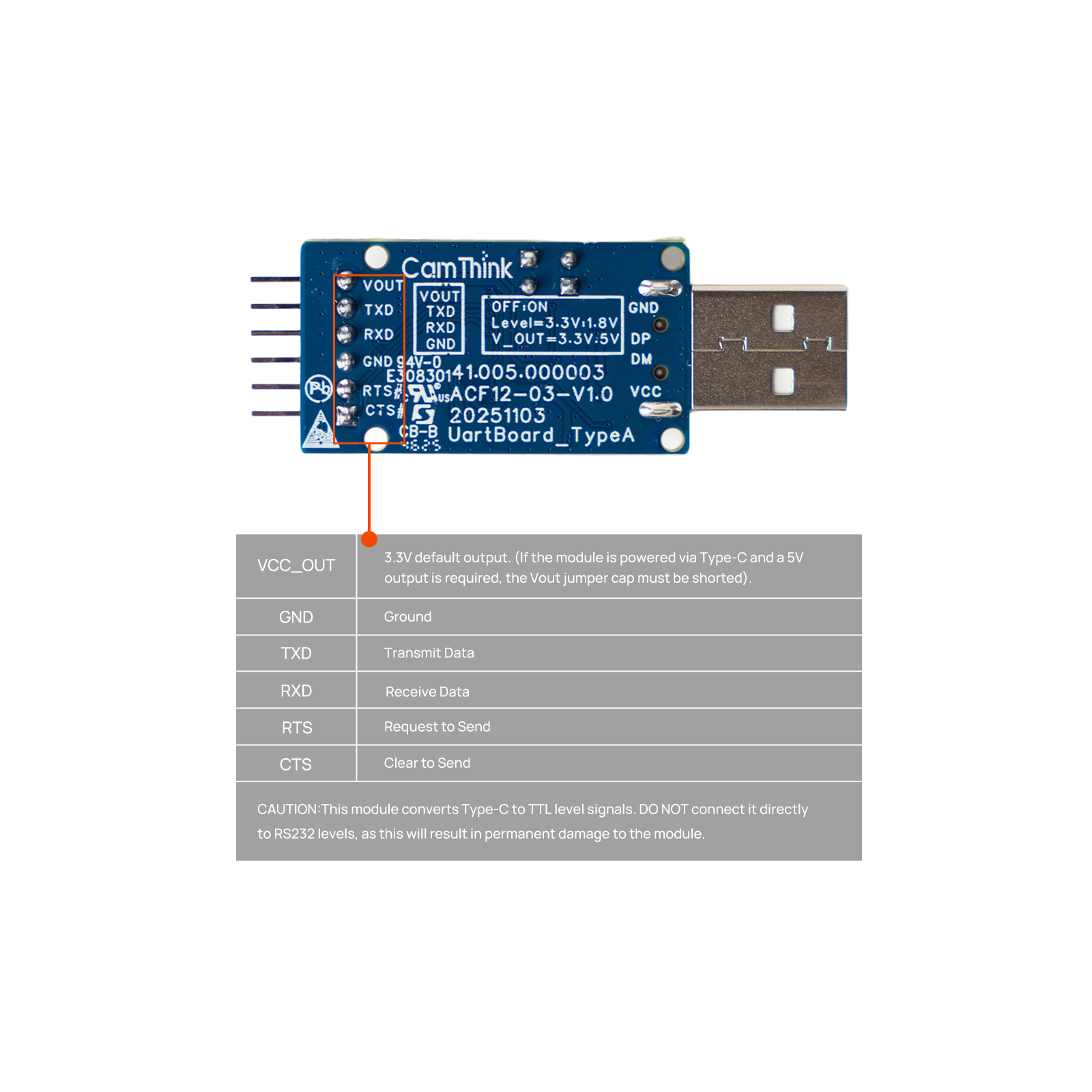

Pin Definitions	CTS, RTS, RXD, TXD, GND, VCC
Indicator LED	Power Indicator ,TXD LED, RXD LED
Supported OS	Windows 7 / 8 / 10 / 11, macOS, Linux, Android, and WinCE
Operating Temperature	-40°C to +85°C

---

Package Includes

• 1x UART Converter (based on your choice)
• 1x programming cable for NeoEyes NE101 & NE301
