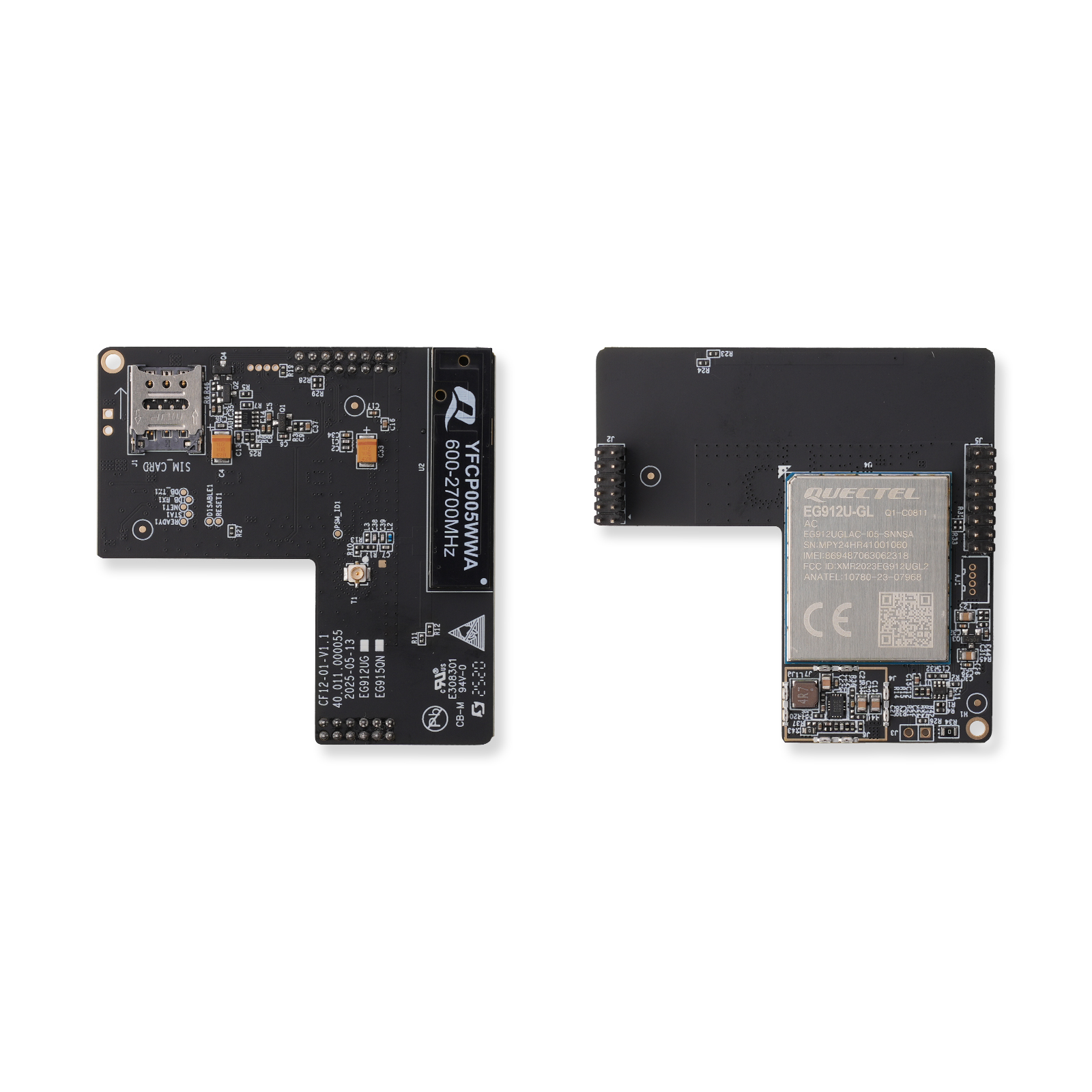

NeoEyes Communication Board Cat.1 / WiFi-Halow

Overview

Flexible Connectivity for Vision AI at the Edge

The CamThink Communication Module Series enables wireless deployment of NeoEyes NE101 AI cameras across diverse environments. Whether you need global cellular coverage or long-range Wi-Fi, these modules provide plug-in, low-power solutions optimized for vision AI in industrial, agricultural, and outdoor scenarios.

Choose between:

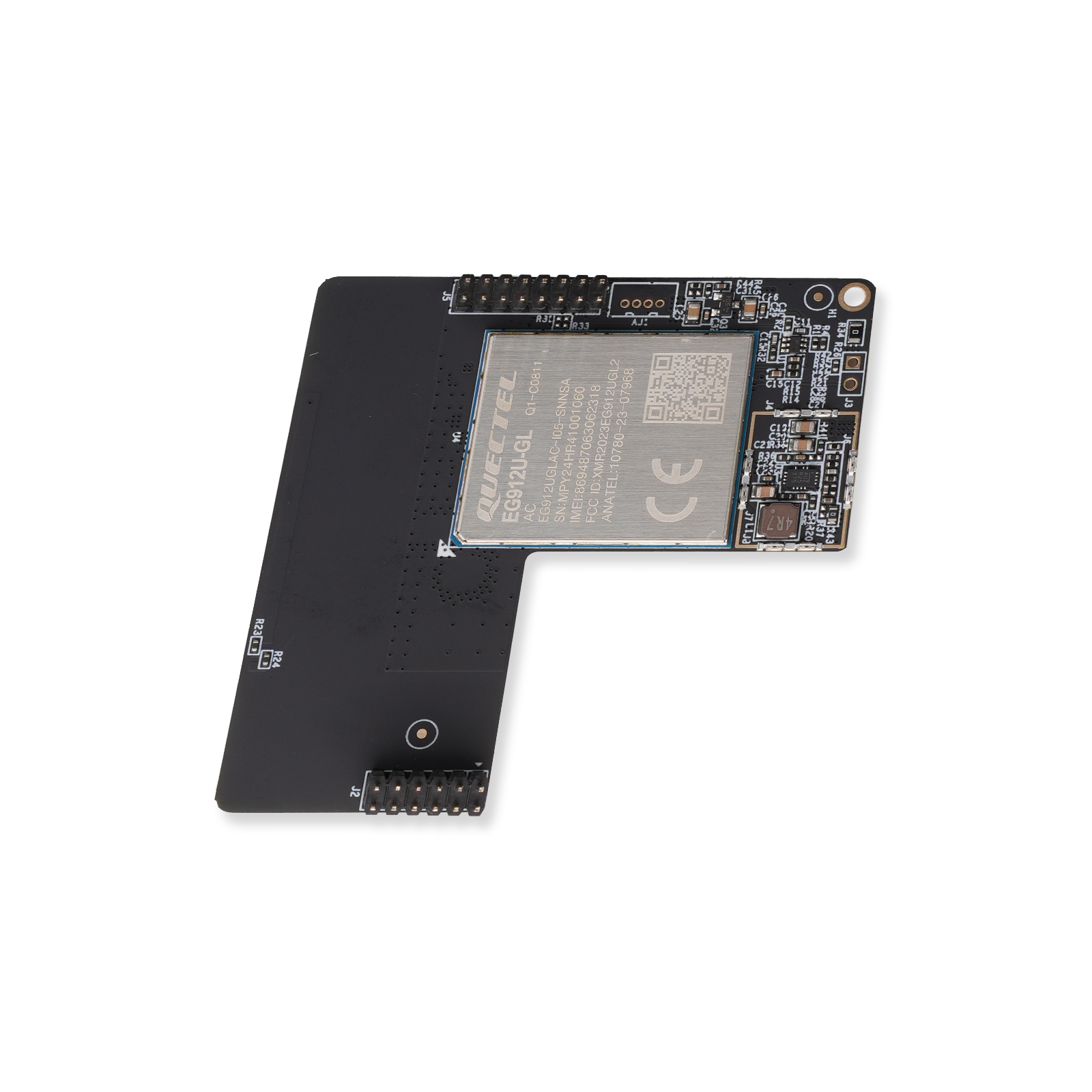

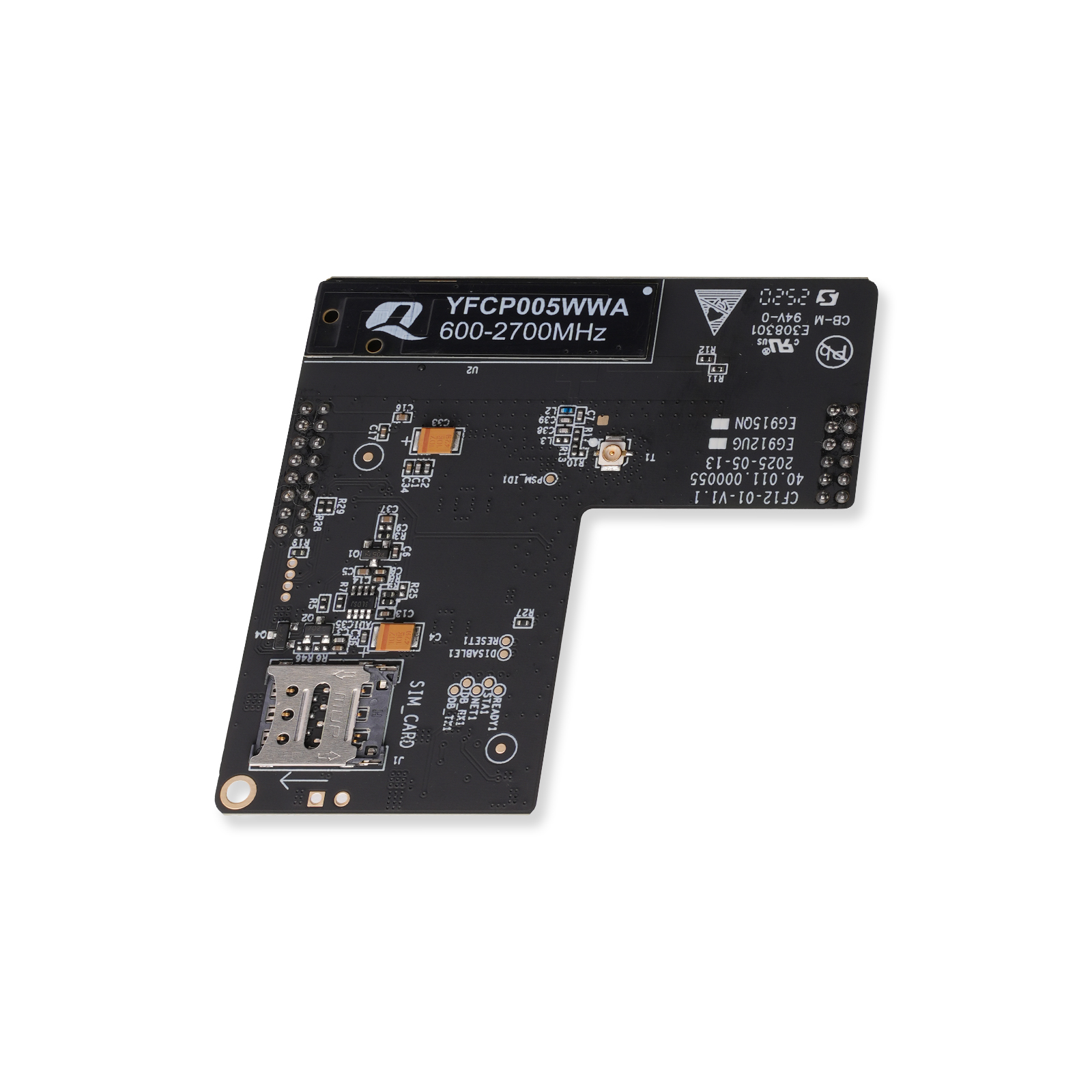

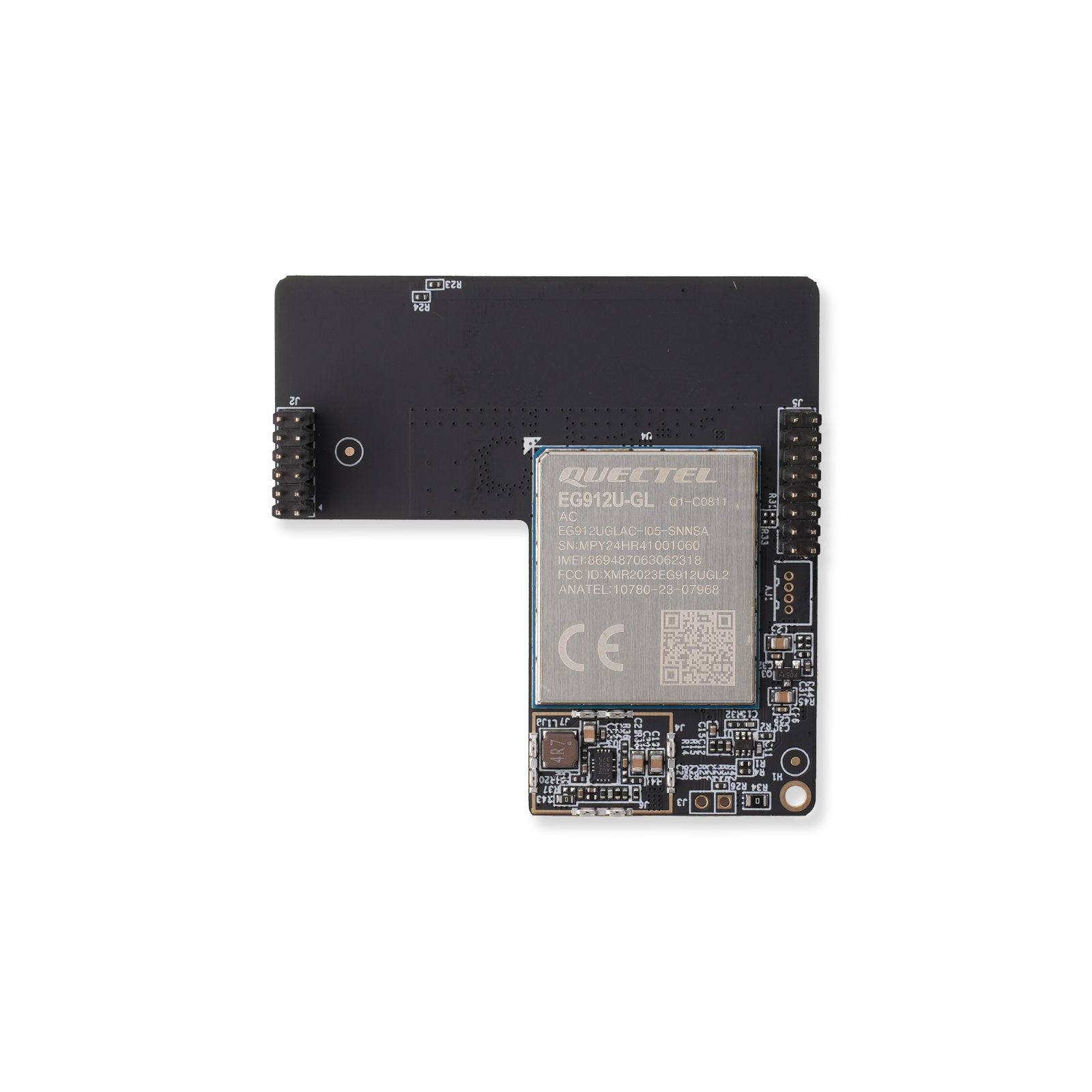

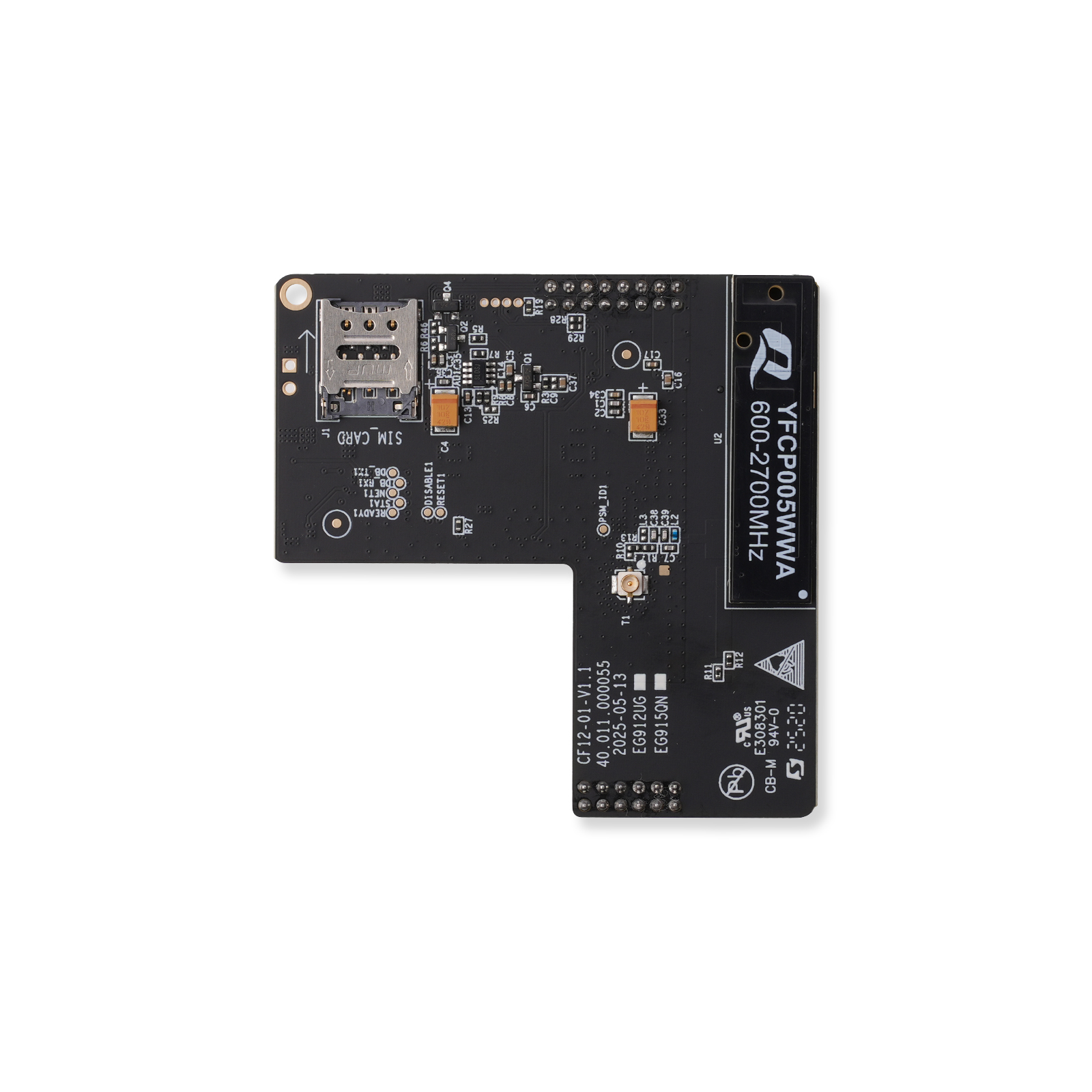

• Cat.1 LTE Module – For wide-area cellular connectivity via LTE-FDD/TDD.

• Wi-Fi HaLow Module – For Sub-GHz, long-range, low-power Wi-Fi communication.

Module Specifications

Specification	Cat.1 Module Global EX.NA	Cat.1 Module(Asia, Europe)	WiFi-HaloW （868MHz / 915MHz）
Network Coverage	Global frequency bands（B1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/66 LTE-FDD + B34/38/39/40/41 LTE-TDD）	Europe/Asia-pacific/Latin America（B1/2/3/4/5/7/8/20/28/66 LTE-FDD + B38/40/41 LTE-TDD）	Wi-Fi HaLow (IEEE 802.11ah) 868MHz for Europe, Asia. 915MHz for North America
Data Transmission Rates	LTE-FDD: 10Mbps（DL）/5Mbps（UL）LTE-TDD: 8.96Mbps（DL）/3.1Mbps（UL）	Same as the global version	Varies (by channel width)
Optional Functions	GNSS（GPS/GLONASS/BDS/Galileo/QZSS）Bluetooth 4.2 Wi-Fi Scan	Not available	Not available
Interfaces	3x UART, USB 2.0, PCM/I2S audio, 2x ADC, SPI/I2C/LCM/Camera/SD card（QuecOpen®）	Same as the global version	SPI
Operating Modes	LTE client		AP / STA
Power	DC 4–6V
Operating Temperature	-20℃ to +60℃
Storage Temperature	-40℃ to +85℃
Dimensions	60 × 60 mm

NeoEyes Communication Board Wiki

      Compatibility & Integration

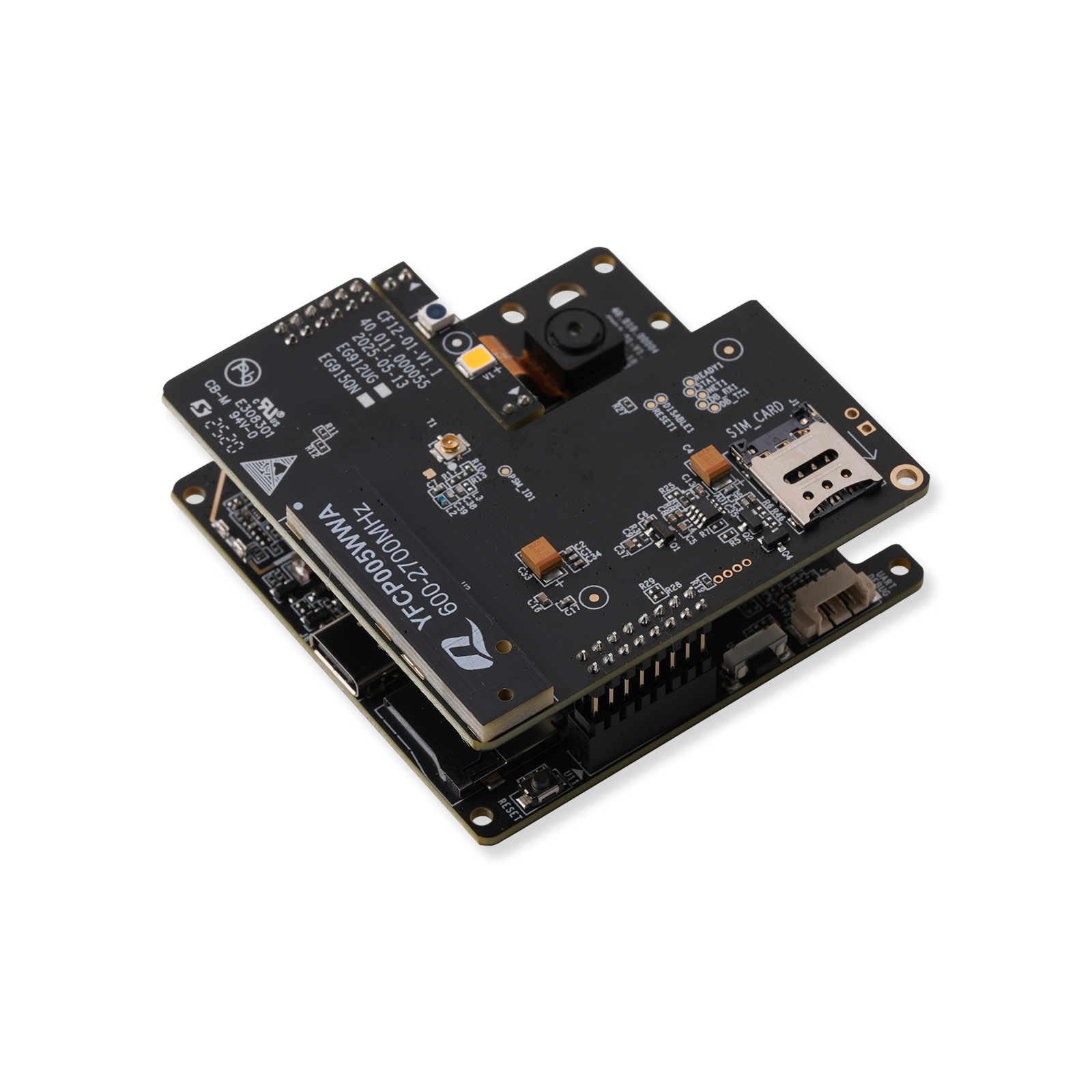

• All modules connect to NeoEyes NE101’s modular communication port

• Built-in power regulation and interface mapping

• Pre-integrated into CamThink firmware stack, ready for MQTT / HTTP / cloud messaging

• Ideal for event-triggered image uploads in real-time environments

      What’s in the Box

• 1× Communication Module (Cat.1 or Wi-Fi HaLow, based on selection)
