How do you deploy an edge AI camera where there is no power, no network, and no
infrastructure?
This guide focuses on infrastructure-constrained deployments, where power and network availability are not
guaranteed. Waste bin monitoring is used as a reference scenario, but the framework applies broadly to any
remote and off-grid edge AI deployment.
Indoor deployments have it easy: mains power at every point, stable WiFi, controlled temperature. Outdoor deployments do not. The brief says deploy cameras at the site.” What it often leaves out: the site has no electrical infrastructure within 50 metres, cellular signal varies by 3–4 bars depending on weather, and ambient temperatures swing from −20°C in winter to +45°C in summer.
The NE301 is engineered for this operating profile. Its STM32U073 power controller manages µA-level deep sleep, the IP67-rated enclosure handles dust and sustained water immersion, and the modular communication design lets you choose WiFi, LTE 4G, or PoE independently of the rest of the hardware. This guide works through each layer of the outdoor deployment stack in sequence.
The NE301 supports four power input paths: AA battery tray (4×AA, ships standard), USB Type-C (5V DC), solar panel via dedicated input interface, and PoE (available on the NE301 PoE variant). Each has a distinct operational profile and maintenance implication.
Data sourced from CamThink’s NE301 Battery Life documentation — lab-measured under optimal low-power configuration.
| Capture Frequency | Mode | Daily Power (mAh) | Battery Life (4×AA) |
|---|---|---|---|
| 1× / day | WiFi | 0.36 | 13.3 years |
| 3× / day | WiFi | 0.79 | 6.1 years |
| 4× / day | WiFi | 0.71 | 6.7 years |
| 10× / day | WiFi | 2.29 | 2.1 years |
| 1× / day | LTE Cat-1 (Global) | 0.57 | 8.4 years |
| 4× / day | LTE Cat-1 (Global) | 1.28 | 3.7 years |
| 10× / day | LTE Cat-1 (Global) | 4.42 | 1.1 years |
| 4× / day | LTE Cat-1 (N. America) | 1.33 | 3.6 years |
Highlighted rows reflect typical low-frequency monitoring patterns in distributed outdoor deployments. Low temperatures reduce effective battery capacity, plan conservatively in sub-zero environments.
A dedicated 10W solar panel for NE301 is in development and accepting pre-orders. Connects via the NE301 solar input interface with battery buffer for operation through low-light periods. Contact us to discuss technical requirements.
All three NE301 variants share identical AI inference specs, IP67 enclosure, and power management. The only difference is how the device connects to your network.
Start with WiFi whenever coverage allows — lowest power draw, zero recurring cost. Use LTE Cat-1 for bins beyond WiFi range. Use PoE when mains power and Ethernet are already at the location and you want to eliminate battery maintenance entirely.
IP6X (dust): Completely dust-tight under any conditions — covers fine particulate in industrial, construction, and high-traffic urban environments.
IPX7 (water): Sustained immersion to 1m for 30 minutes. Heavy rain, splash, temporary flooding, and high-humidity environments are well within this class. Does not cover continuous high-pressure water jets (IPX9K) or permanent submersion beyond 30 minutes.
Operating temperature: −20°C to +50°C. Note that battery capacity decreases at low temperatures — at −20°C, effective alkaline AA capacity drops approximately 25–35% compared to room temperature. Use lithium AA cells for cold-climate deployments (they retain ~85–90% capacity at −20°C).
IP67 seals are rated at time of manufacture. For 5-year+ deployments in direct UV/sun exposure, schedule periodic gasket inspection at battery replacement visits. CamThink’s modular design allows front/middle/rear assemblies to be serviced independently without replacing the full unit.

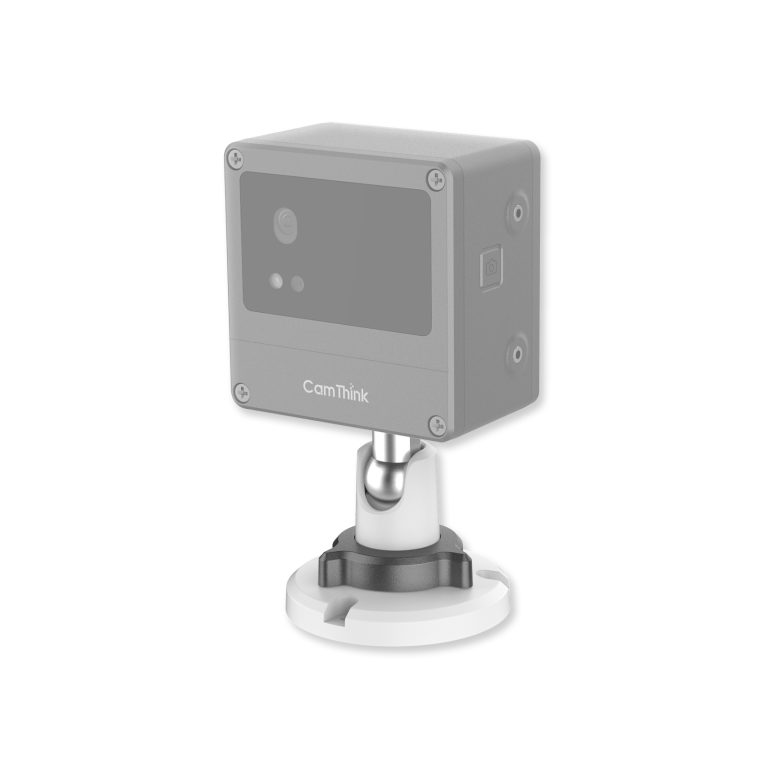

The NE301 enclosure includes standard mounting holes compatible with CamThink’s bracket range. Six bracket types cover common outdoor installation configurations — all compatible with both NE301 and NE101.
Browse all mounting bracket options →
Every NE301 MQTT payload includes device health telemetry — battery percentage, signal strength (RSSI),
firmware version — alongside the inference result. Your backend receives this data on every capture event at no
additional cost. Build a threshold alert: if battery_pct < 20 across devices in the same zone,
trigger a maintenance visit dispatch before any unit goes offline.
Subscribe to camthink/{client}/bin/# and write battery_pct and
signal_rssi fields to a time-series store. A query — “show devices where battery_pct < 20 and
last_seen < 48h” — gives your field team a prioritised maintenance list without any additional device-side
software.
The NE301 supports OTA firmware and model updates over WiFi or LTE — applied without physical access. For
fleets of 20+ units, stage updates to 10–15% of devices first, monitor for 24–48 hours, then roll out to the
full fleet. Confirm completion by monitoring the fw_version field in each device’s MQTT payload.
device_id, not by connectivity type. Fleet management
operations — health monitoring, OTA updates — work identically across both variants.Tell us your site type, capture frequency, connectivity constraints, and whether solar is required — we’ll recommend the right NE301 variant and power configuration.
