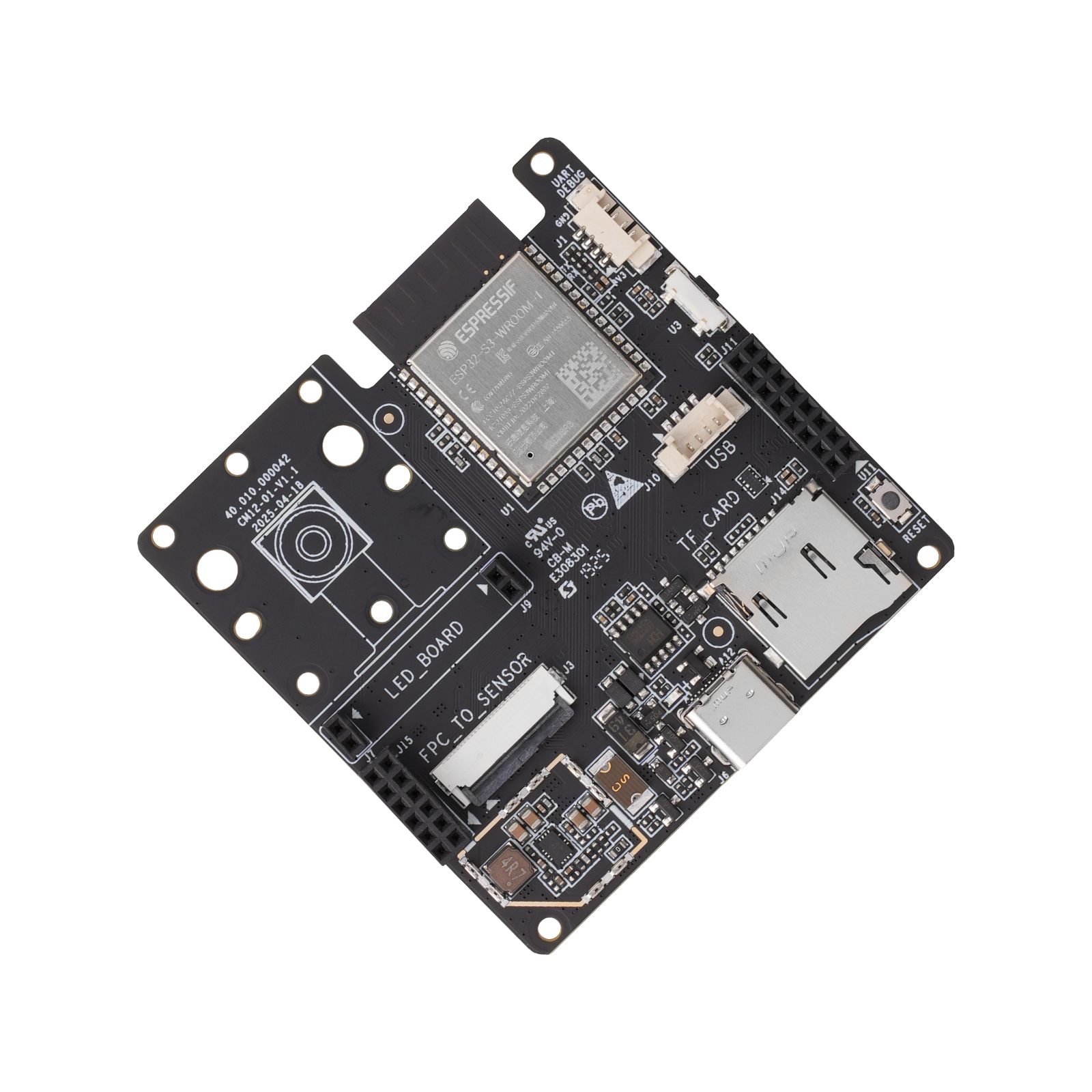

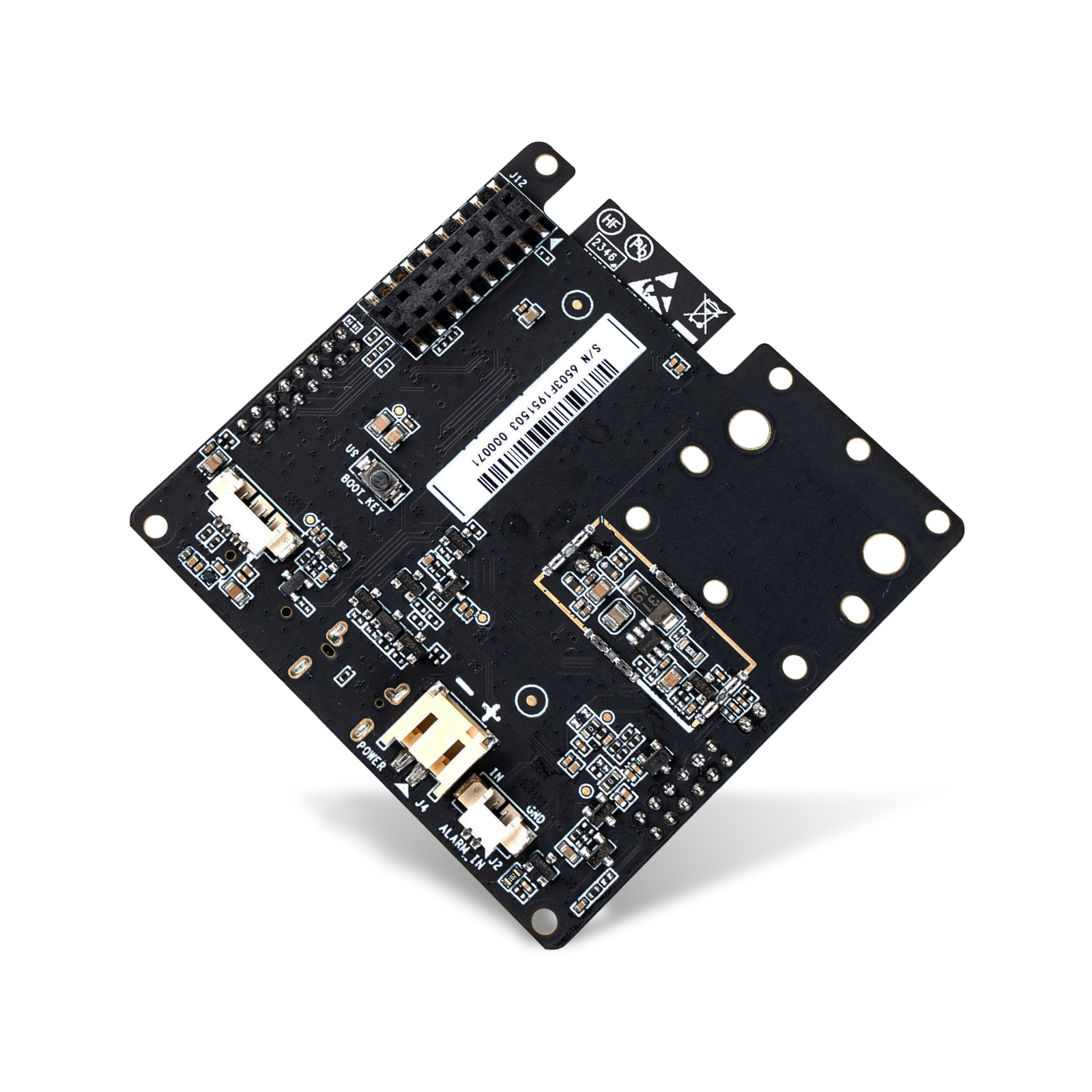

NeoEyes ESP32-S3 Development Board

Overview

Build Smarter Vision Applications—Faster.

The CamThink NE100-CM01 is a highly integrated development board tailored for the NeoEyes NE101 Vision AI Camera. Built on the ESP32-S3 ultra-low-power platform, it supports event-based imaging, modular peripherals, and customizable I/O, empowering developers to rapidly prototype AIoT camera solutions across agriculture, security, environment, and edge vision use cases.

Key Features

• ESP32-S3 MCU
  Dual-core processor with 8MB RAM, 16MB Flash, and vector instructions for image processing and ML tasks.

• Flexible Camera Support

  • Compatible with OV5640 module (CSI interface)

  • Optional USB camera support

  • Available in 60°/120° FOV, swappable lenses for near/far focus

  • Event-triggered image capture

• Multi-Connectivity Ready

  • Onboard Wi-Fi 4

  • Optional Cat.1 LTE or Wi-Fi HaLow for long-range, low-power transmission

  • Bluetooth supported for device pairing

• Ultra-Low Power Operation

  • Supports deep sleep mode

  • Sensor-triggered wake-up ensures energy efficiency

• Modular Hardware Design

  • Interchangeable camera, network, and power modules

  • Open hardware for custom expansion

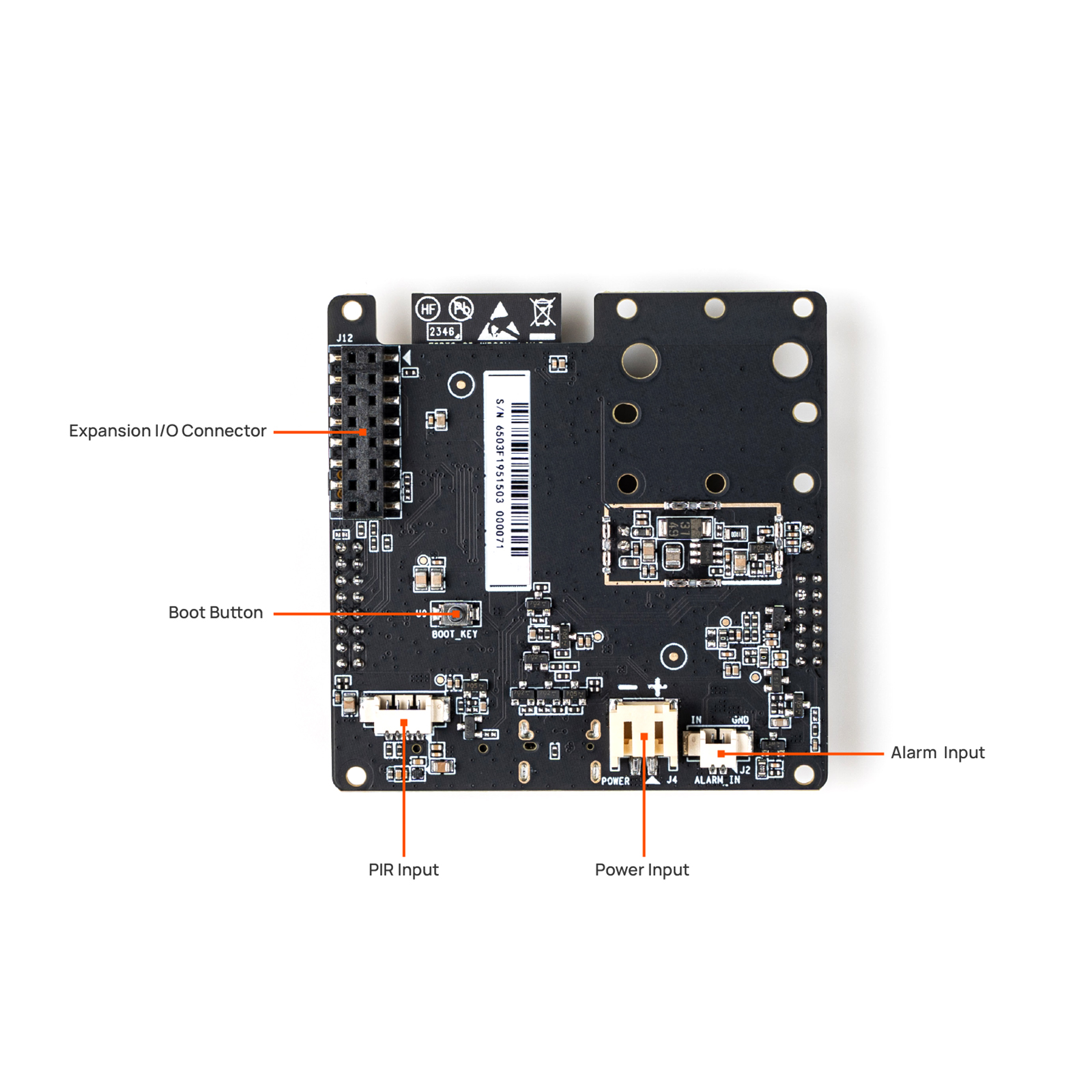

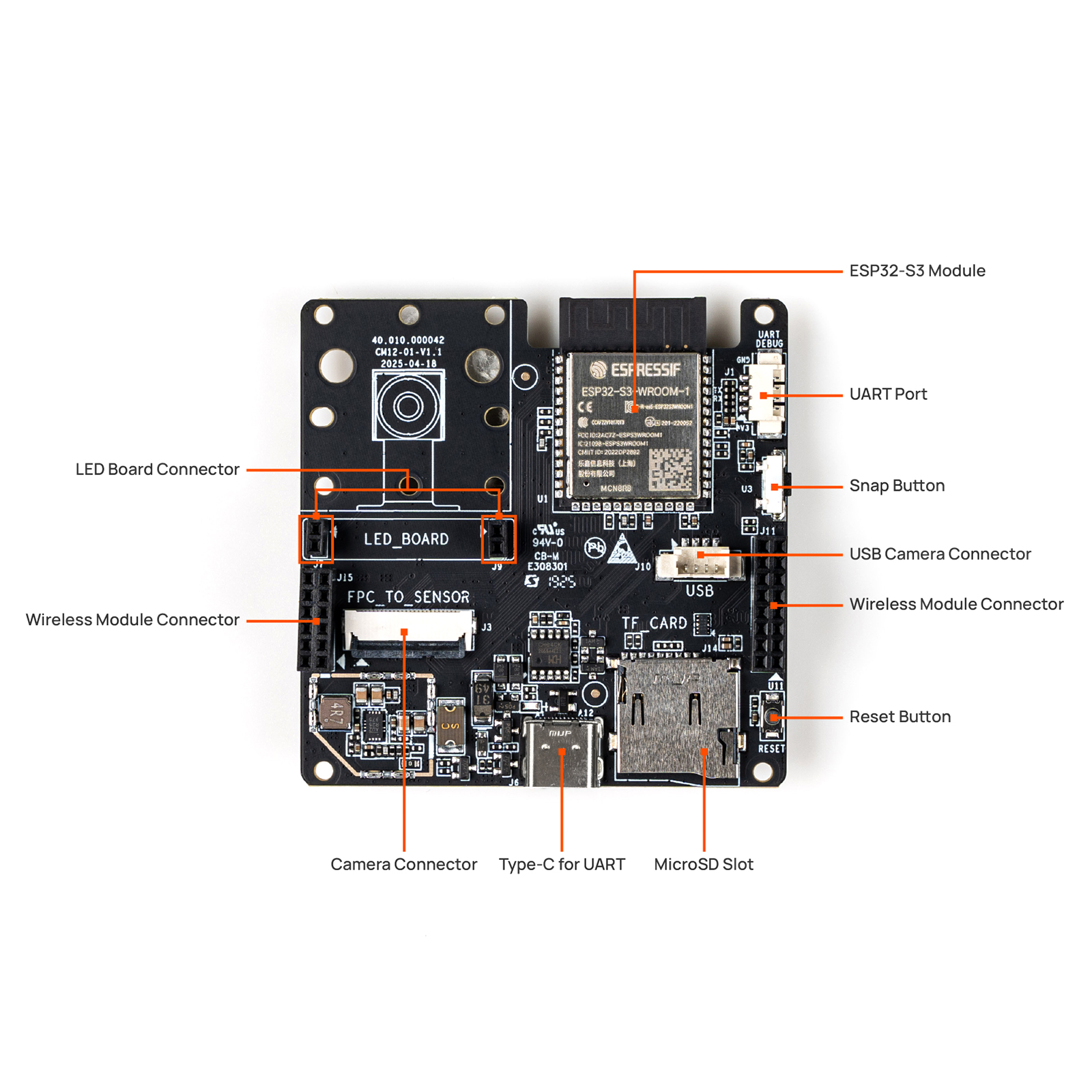

• Developer-Friendly I/O

  • 16-pin GPIO expansion

  • USB Type-C for power and debugging

  • TF card slot for local image storage

  • Alarm input and onboard LED support

Technical Specifications

    Use Case Scenarios

• Smart Agriculture

• Wildlife Monitoring

• Edge Surveillance

• Environmental Sensing

• Industrial IoT Prototyping

     What’s in the Box

• NE101-MB01 Carrier Board x1
