NeoEdge Jetson Nano Orin Edge AI Box

Overview

Designed for Real-World AI. Built for Developers.

The CamThink NeoEdge NG4500 series is a high-performance industrial-grade Edge AI computing platform powered by NVIDIA® Jetson Orin™ Nano/NX modules. Supporting up to 157 TOPS (INT8, SUPER mode), it delivers robust performance for LLMs, VLMs, ViTs, and other compute-intensive applications.

From AI vision systems and robotics to smart manufacturing and edge gateways, NG4500 empowers developers to deploy generative AI at the edge with stability, speed, and flexibility.

Key Features

Feature	Description
AI Performance	Up to 157 TOPS (SUPER mode), supports LLMs/VLMs/MM LLMs
Jetson Orin Support	Compatible with Orin Nano (4GB/8GB) and Orin NX (8GB/16GB)
Rich I/O Interfaces	2×Gigabit Ethernet, 4×USB 3.1, 1×USB-C 3.2, RS232/485, CAN, DI/DO
Storage Expansion	Dual M.2 Key M slots (PCIe x4 and PCIe x1), up to 1TB NVMe SSD
Connectivity	M.2 Key B: 4G/5G, M.2 Key E: Wi-Fi/Bluetooth
Video Input/Output	4K HDMI + 2×MIPI camera interfaces
Audio Interface	Mic-in + Audio out (3.5mm jack)
Industrial Power Design	12V–36V DC input, peak power 120W
Fanless Passive Cooling	Quiet, durable, and reliable in harsh conditions
Wide Temp Operation	-25°C to +60°C operating range
Mounting Options	Desktop, Wall Mount, DIN Rail
Certifications	CE / FCC / RoHS

Performance Levels

Model	Jetson Module	Standard TOPS	SUPER TOPS (INT8)	DRAM	GPU Cores / Tensor Cores
NG4510	Orin Nano 4GB	20 TOPS	34 TOPS	4GB	512 / 16
NG4511	Orin Nano 8GB	40 TOPS	67 TOPS	8GB	512 / 16
NG4520	Orin NX 8GB	70 TOPS	117 TOPS	8GB	1024 / 32
NG4521	Orin NX 16GB	100 TOPS	157 TOPS	16GB	1024 / 32

All models support JetPack 6.0 SDK, CUDA, TensorRT, DeepStream, and mainstream AI frameworks like PyTorch, ONNX, TensorFlow, VLLM, Ollama, llama.cpp, etc.

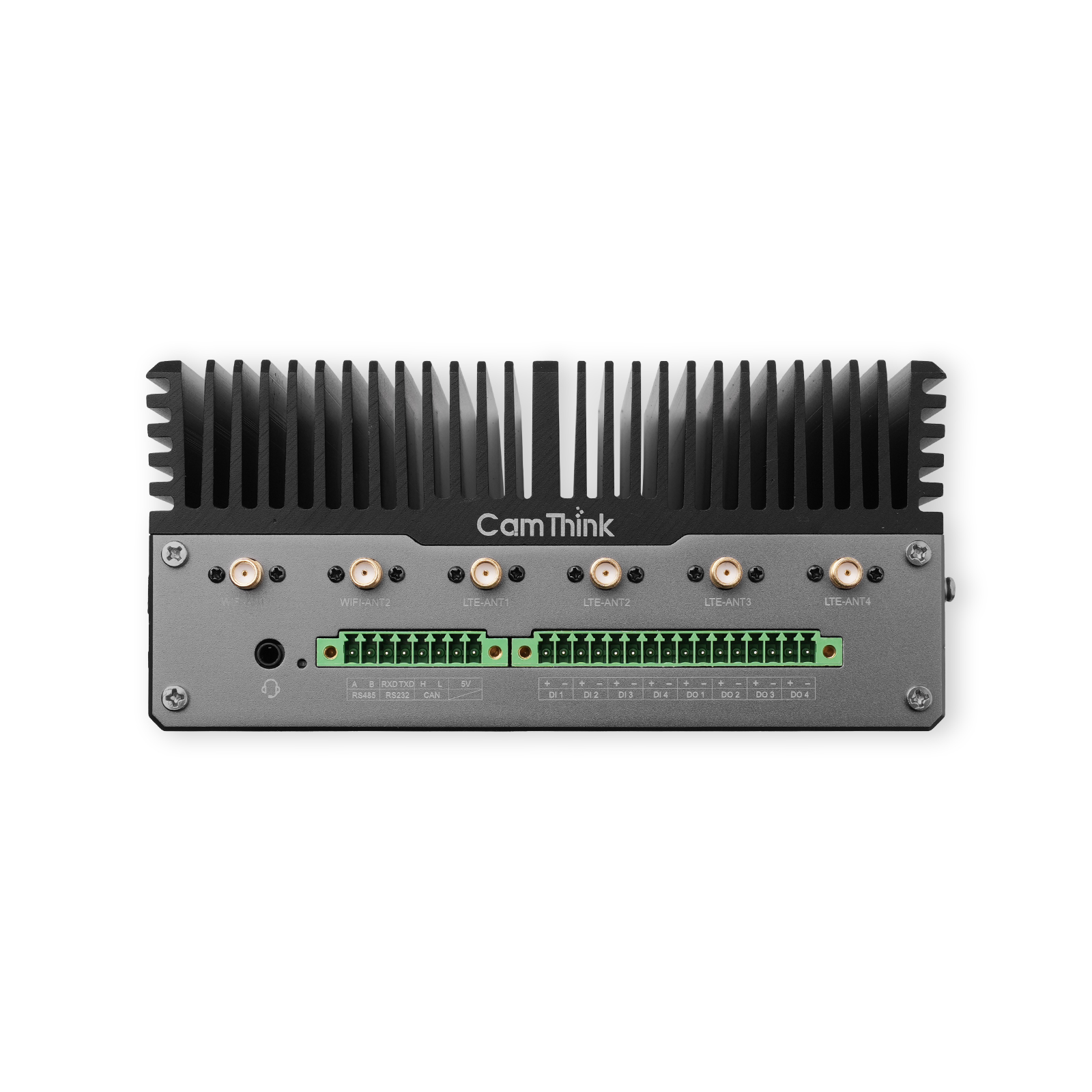

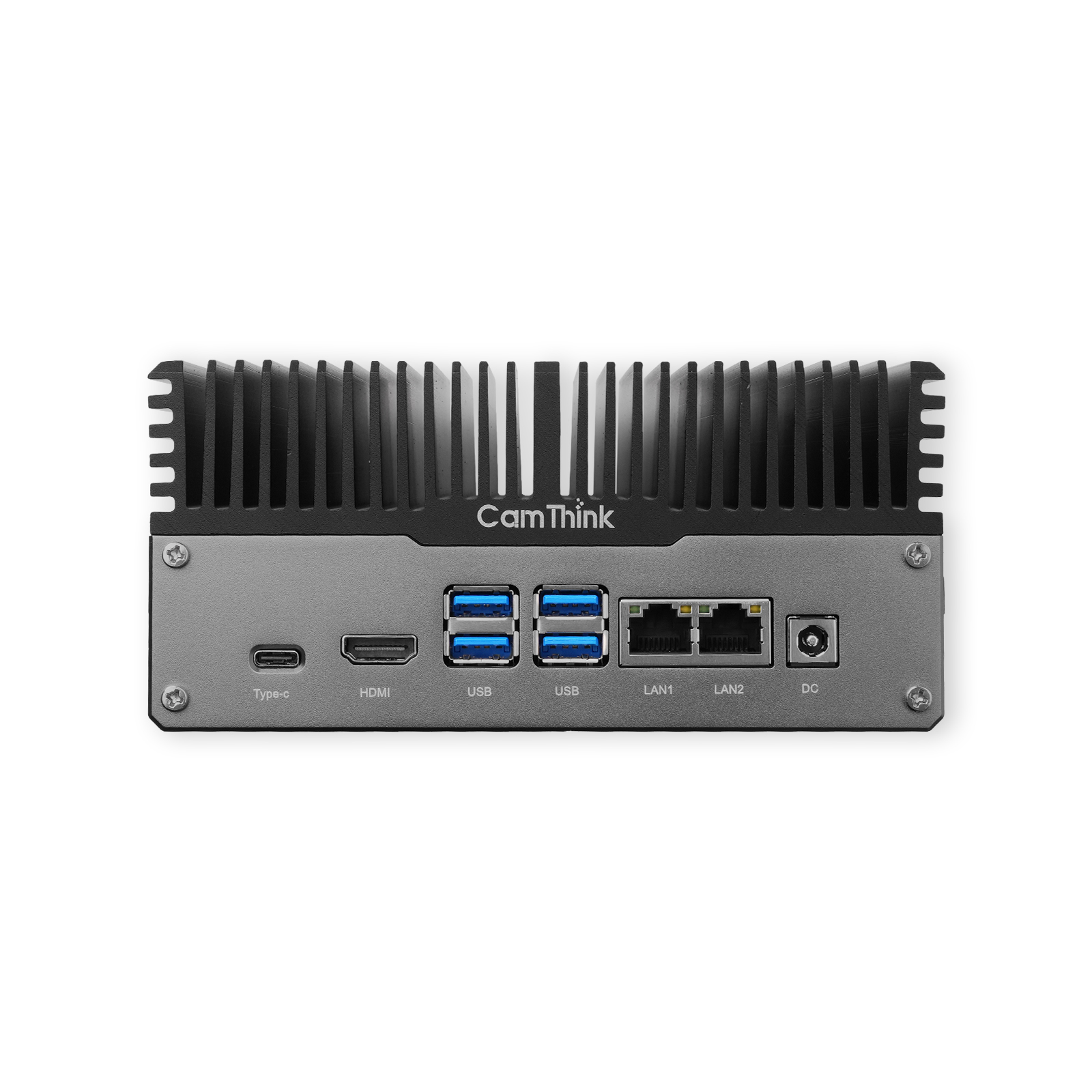

      Connectivity & Interfaces

• Ethernet: 2× RJ45 (Gigabit LAN)

• USB: 4× USB 3.1 Type-A, 1× USB 3.2 Type-C

• Serial: RS232, RS485, CAN

• DI/DO: 4× Digital Inputs, 4× Digital Outputs

• Storage: 2× M.2 Key M (1× PCIe x4 SSD, 1× PCIe x1)

• Expansion:

  • M.2 Key B (4G/5G cellular modules)

  • M.2 Key E (Wi-Fi 6/Bluetooth 5.0)

• Display: HDMI 4K Output

• Camera: 2× MIPI CSI interfaces

• Audio: Mic in + Audio out (3.5mm jack)

• Antenna Ports: 4–6 SMA (Wi-Fi/4G/5G)

• SIM Card Slot: Nano SIM supported

Rugged Design for Edge Environments

Spec	Description
Operating Temperature	-25°C to +60°C
Storage Temperature	-40°C to +85°C
Humidity	0% – 90% RH (non-condensing)
Cooling	Fanless, passive aluminum heatsink
Power Supply	12V–36V DC input, peak 120W

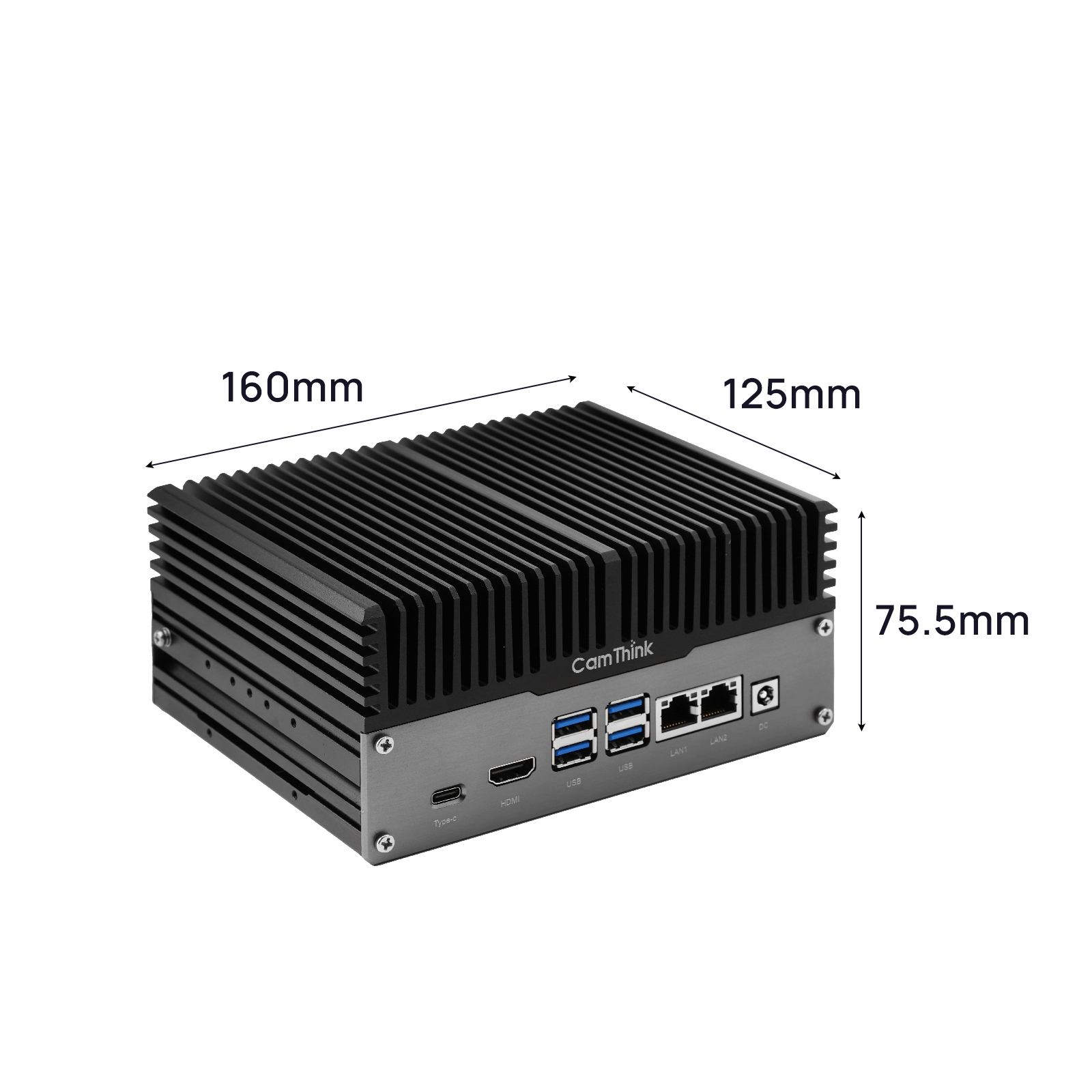

Dimensions	160mm × 125mm × 75mm
Weight	1.9 kg
Mounting Options	Desk, Wall, DIN-rail
Certifications	CE / FCC / RoHS
Warranty	2 years

      What‘s in the Package

• 1× CamThink NG4500 Edge AI Box (pre-configured)

• 1× Power Adapter (12V)

• 4× External Antennas (Wi-Fi / 4G / 5G)

• 1× Power Cord EU

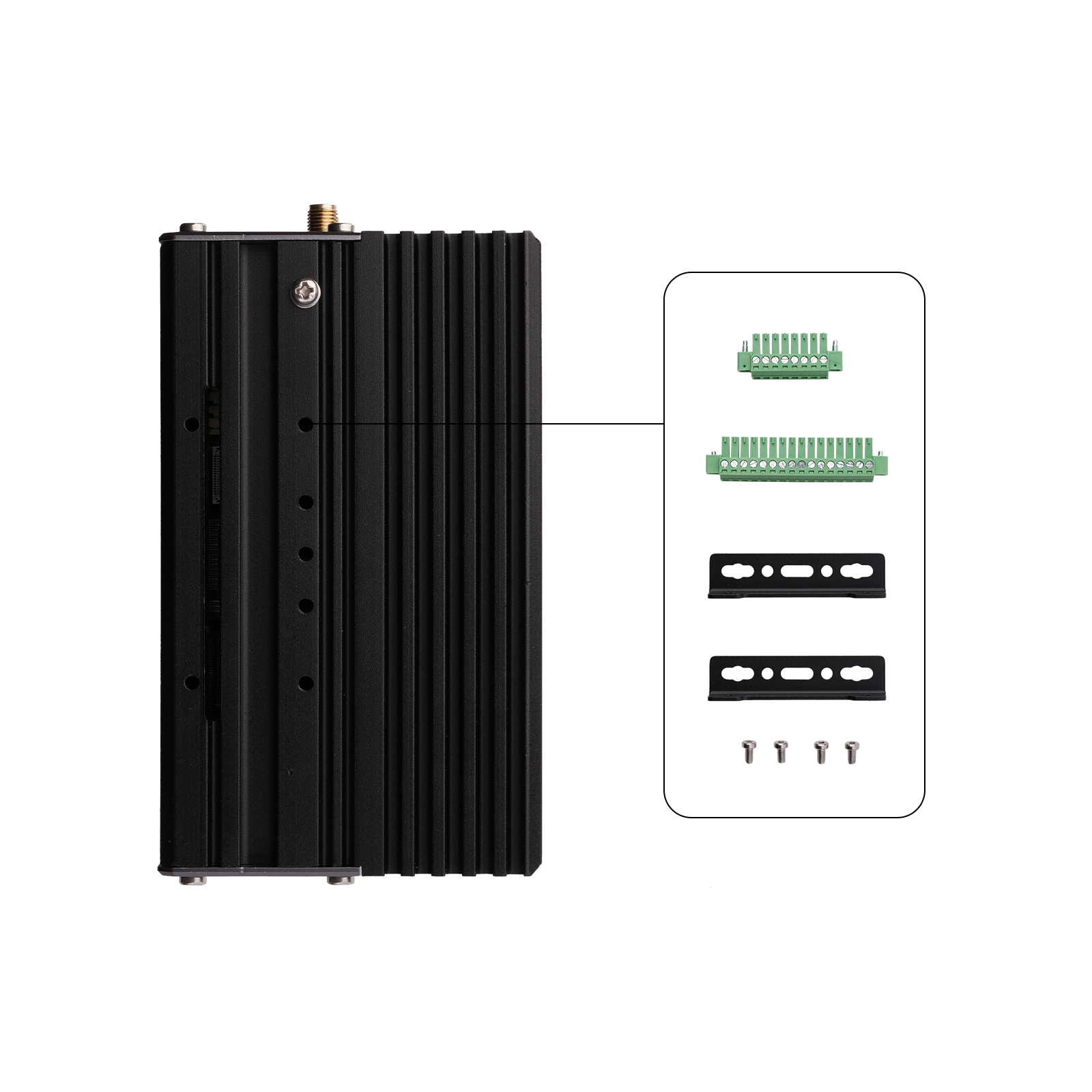

• 1× Wall / DIN Mount Kit

• Quick Start Guide + Software Preload
