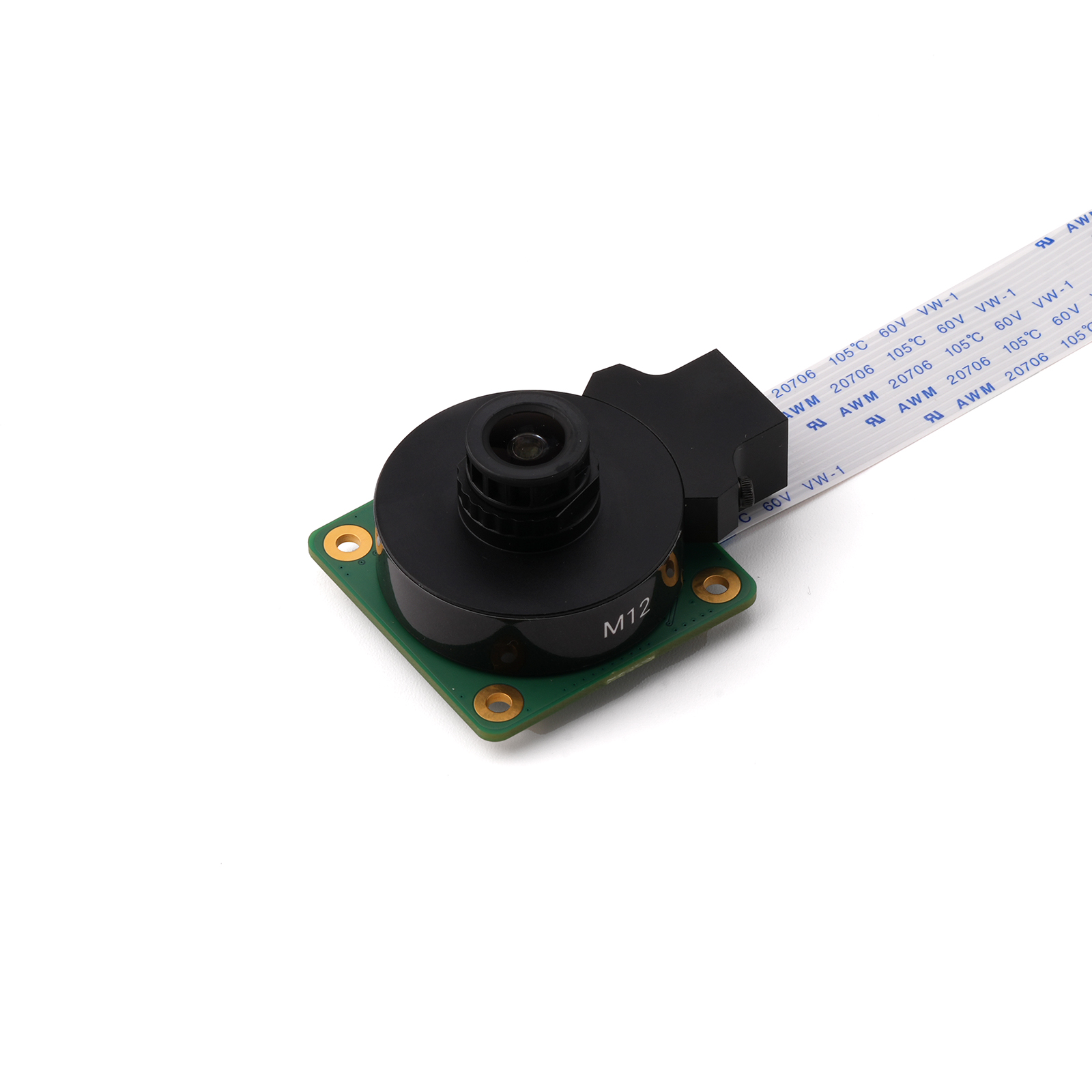

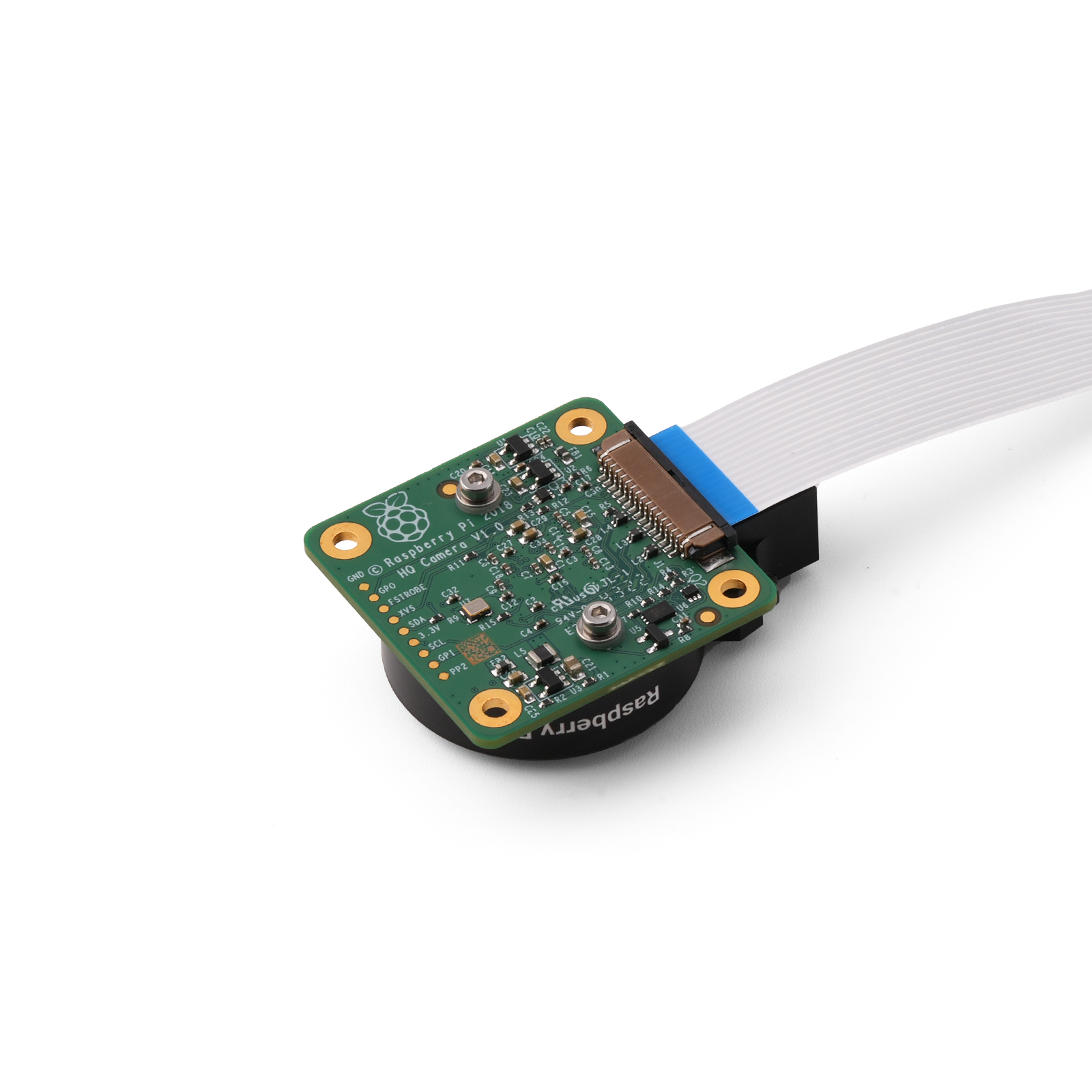

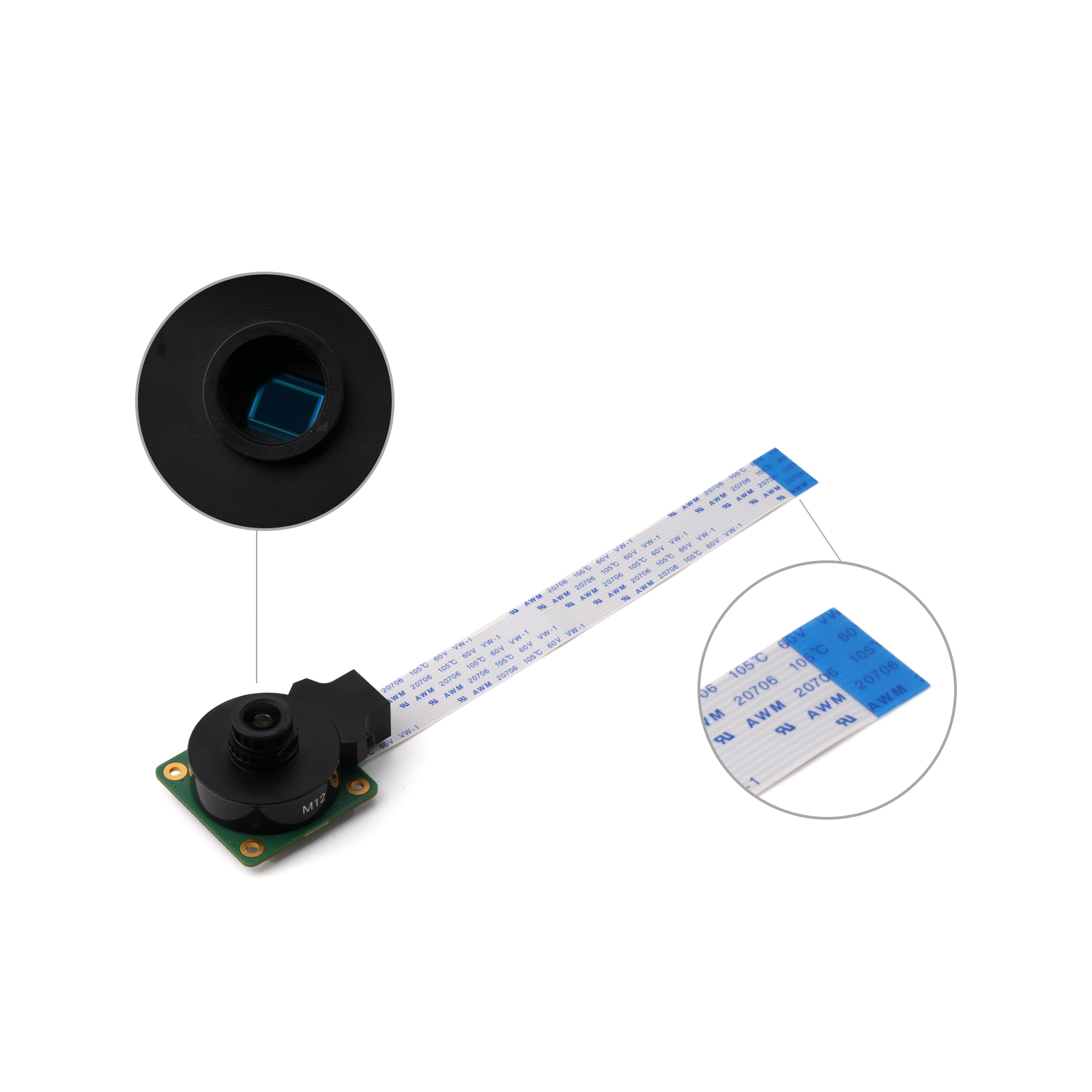

Raspberry Pi Camera Module HQ Sony IMX477 12MP
$118.00
High-quality 12MP camera module for Raspberry Pi, featuring Sony IMX477 sensor, C/CS lens support, and MIPI CSI-2 interface.
Ideal for smart imaging, machine vision, and developer projects.
Read More
SKU: 73.002.000002
Category: Modules & Dev Kits
Pay with Ease
Fast International Shipping
30-Day Money-Back Guarantee
Hassle-free Warranty
Lifetime Customer Support
Key Features
-
Sony IMX477 12.3MP BSI Sensor – Excellent detail, sharpness, and dynamic range
-
Lens Flexibility – Compatible with C-mount and CS-mount lenses
-
Manual Focus & Aperture – For full control in pro vision applications
-
Solid Metal Build – Integrated tripod screw and aluminum lens housing
-
Raspberry Pi Ready – Supports Raspberry Pi 5 / 4 / 3B+ / Zero via CSI
Specifications
| Parameter | Description |
|---|---|
| Sensor | Sony IMX477 (12.3MP CMOS, BSI) |
| Resolution | 4056 × 3040 pixels |
| Sensor Size | 1/2.3″ |
| Pixel Size | 1.55μm × 1.55μm |
| Lens Mount | C/CS-mount (metal adapter ring included) |
| Shutter Type | Rolling shutter |
| Interface | MIPI CSI-2 (2-lane, 22-pin) |
| Output Format | RAW10, YUV |
| Frame Rate | 1080p30, 720p60, VGA90 |
| Dimensions | 38 × 38 × 18.4 mm |
| Mounting Thread | Standard 1/4″-20 tripod screw |
| Operating Temp | -20°C to 60°C |
What’s in the Package
-
1 × Raspberry Pi HQ Camera Module
-
1 × 22-pin MIPI CSI Ribbon Cable (200mm)
-
1 × C to CS mount adapter ring
-
Lenses not included – sold separately
Compatible Use Cases
-
AI + Computer Vision Development
-
Smart Monitoring & Robotics
-
Scientific Imaging & Microscopy
-
OCR / License Plate Recognition
-
Low-Light Embedded Systems
-
Maker Projects & STEM Education
| Weight | 0.1 kg |
|---|---|
| Dimensions | 12 × 8 × 5 cm |
