Multi-Sensor Expansion Development Kit for NE301

$88.00

Expand NeoEyes NE301 into a multi-sensor IoT prototyping platform. This development kit combines a dedicated sensor expansion board, 9 sensor functions, display modules, audio accessories, cables, and open C drivers for fast evaluation of sensing, visualization, and edge AI applications.

  • 9 sensor functions in one kit: temperature & humidity, ambient light, 6-axis IMU, short-range ToF, 20m d-ToF, PIR motion, 24GHz presence radar, infrared thermal imaging, and audio I/O.
  • Ready for fast NE301 prototyping: connect sensors through I2C, UART, digital I/O, SPI display, and audio interfaces.
  • Real-time visual output: the 1.54″ IPS display is pre-adapted for sensor data overlay and MLX90642 pseudo-color thermal rendering.
  • Open C drivers and CLI tools: start sensor acquisition with simple commands such as sexp start or sexp start ir.
  • Built for developers and integrators: ideal for IoT evaluation, sensor fusion, smart building, robotics, predictive maintenance, and environmental monitoring.

In stock

12% OFF
26HOLIDAY12

Applicable on selected products

SKU: 76.002.000003 Category: Tag:

Pay with Ease

Apple Pay
  • Customization Service
  • OEM / ODM Support
  • Bulk Order Pricing
  • Worldwide Express Delivery
  • Warranty Coverage & Lifetime Support

Contact us at sales@camthink.ai

    Multi-Sensor Evaluation for NE301

    The NE301 Sensor Expansion Kit brings environmental sensing, motion and presence detection, distance measurement, thermal imaging and audio hardware into one development package. Use it with an NE301 mainboard to compare sensor inputs and build application prototypes before selecting hardware for your final design.

    Firmware upgrade required: You must upgrade your NE301 firmware yourself before using this kit. Use the dedicated SensorExt firmware ne301_Main_WiFi_SensorExt_20260918 from the v4.3.1 release. An ST-LINK programmer is included with the kit to help you complete the upgrade.

    The SensorExt firmware uses SPI6 for the sensor board and does not support HaLow networking. Follow the release-specific upgrade instructions for your current device version; older firmware may require a staged upgrade.

    Check Your Development Setup

    • Host hardware: An NE301 mainboard is required and is not included. This is an accessory evaluation kit, not a complete camera.
    • Enclosure: The sensor expansion assembly does not fit the standard NE301 outdoor enclosure. Outdoor projects require a suitable protective housing and validation of sensor openings and weather sealing.
    • Assembly: The supplied radar and display pin headers require customer soldering.
    • NE101: The expansion board has hardware compatibility, but NE101 sensor firmware is still under development. The NE301 quick-start commands do not run directly on NE101.

    Evaluate Sensors and View Results

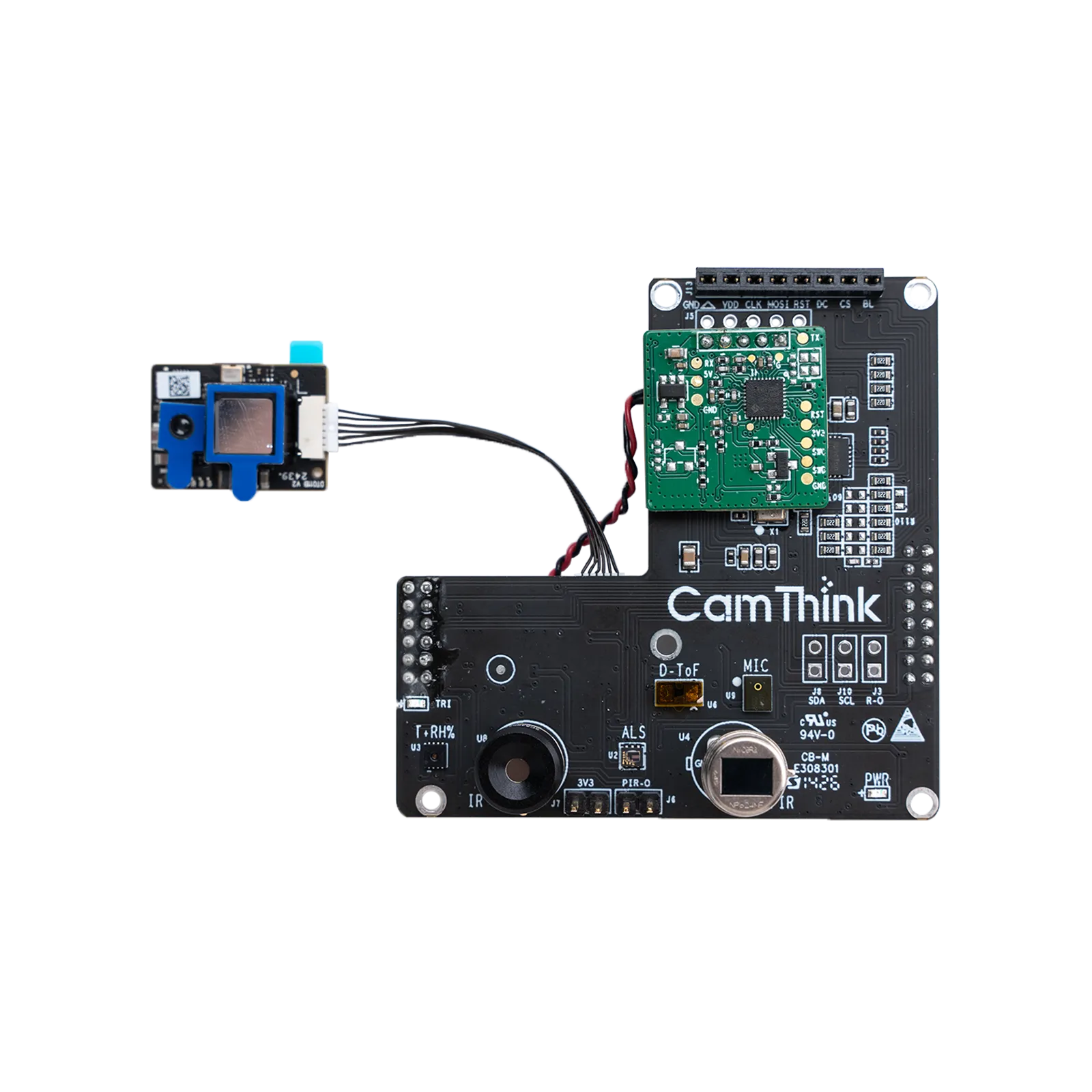

    Environmental, Motion and Distance Sensing

    Read temperature, humidity, visible and infrared light, acceleration, angular velocity and distance using the supplied driver examples. Combine these inputs in your own proximity, environmental monitoring or equipment monitoring prototype. Application logic and validation remain part of your development work.

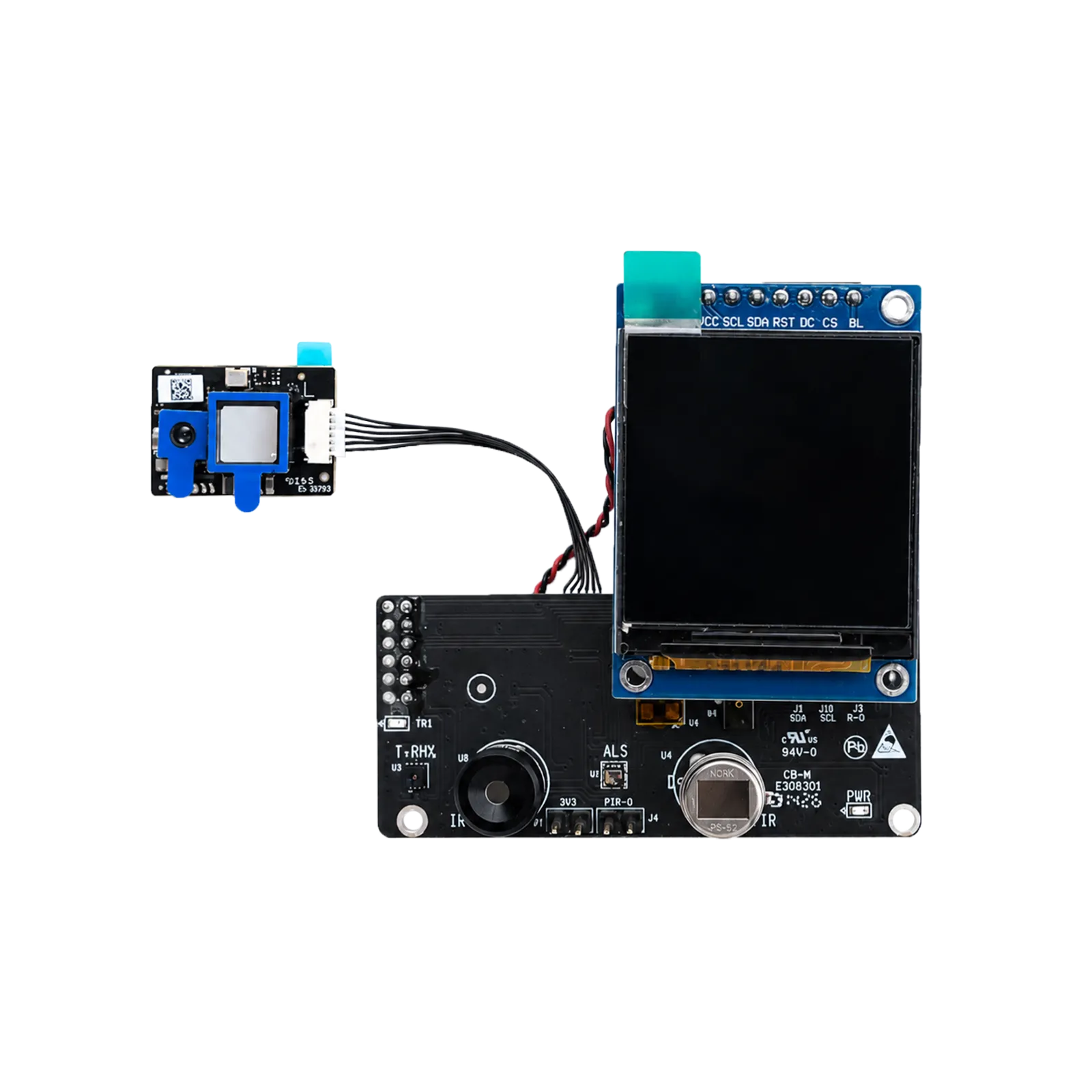

    Thermal Imaging on the Included TFT

    The MLX90642 provides a 32 × 24 thermal array. The included 1.54-inch, 240 × 240 IPS TFT has a reference driver for sensor text overlays and pseudo-color thermal rendering. After assembly and the required firmware upgrade, use sexp start for sensor acquisition or sexp start ir for thermal display evaluation.

    Open Drivers with Clear Integration Boundaries

    C driver examples are available in Custom/Hal/SensorExt/ in the NE301 firmware repository. Add your own acquisition and application logic using the supported interfaces. The RKB1161LX1 radar driver is under development; the 1.14-inch TFT and 0.96-inch OLED require developer adaptation. Audio and TFT use require the appropriate board hardware configuration.

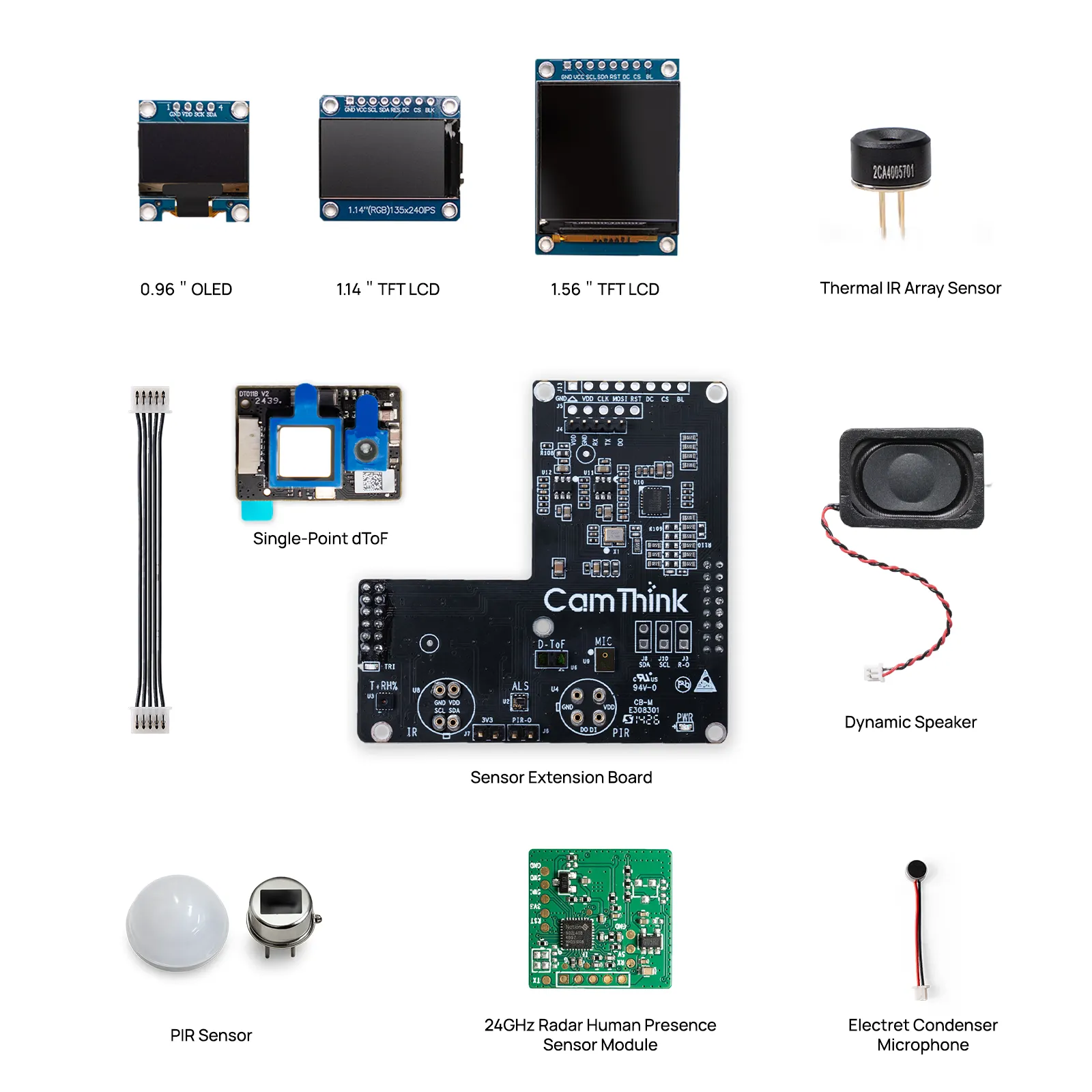

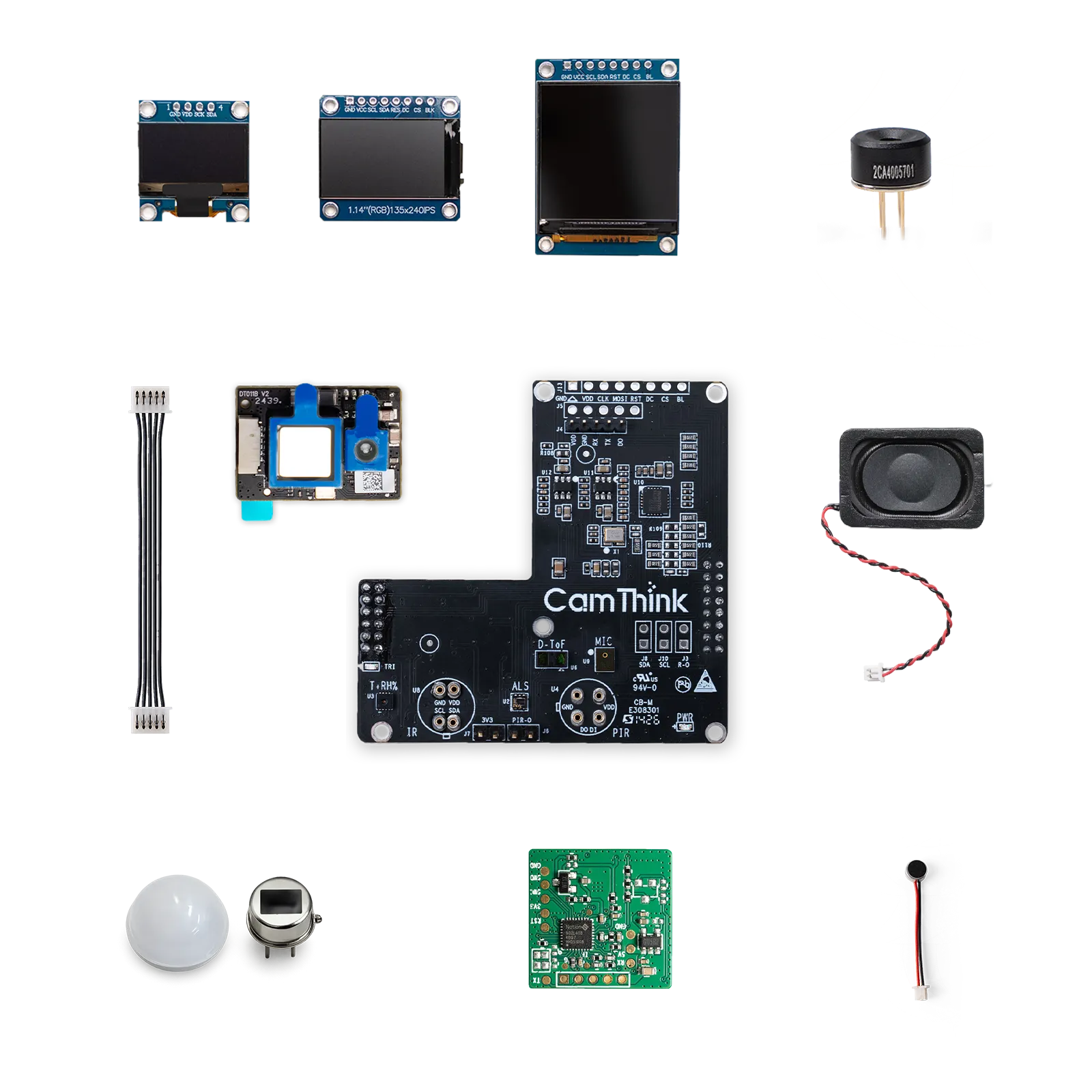

    What’s Included

    Item Qty Purpose
    Sensor expansion board 1 Connects sensors and peripherals to NE301.
    1.54-inch IPS TFT 1 Displays sensor readings and thermal images.
    1.14-inch IPS TFT 1 Compact color display; driver adaptation required.
    0.96-inch OLED 1 Text and status display; driver adaptation required.
    DTS6012M d-ToF sensor 1 Measures distance to targets.
    MLX90642 thermal array 1 Captures a 32 × 24 temperature map.
    NP624M-F PIR sensor with lens 1 Detects human movement.
    RKB1161LX1 24 GHz radar 1 Senses presence and micro-motion; driver under development.
    External microphone 1 Captures ambient sound.
    Mini speaker, 8 Ω, 1.5 W 1 Plays audio and alert tones.
    4-pin serial cable 2 Connects serial debugging and log interfaces.
    Dupont wires, male-to-male and male-to-female 20 Connects external modules for prototyping.
    ToF connection cable 1 Connects the external distance sensor.
    Radar pin header 1 Connects the radar module; soldering required.
    Display pin header 1 Connects the display module; soldering required.
    ST-LINK programmer 1 Flashes the required NE301 firmware; included.

    Required Host — Sold Separately

    NE301 STM32N6 Vision Development Board provides the host platform for sensor evaluation. An additional sensor expansion board or ST-LINK programmer is not needed for this kit.

    Customer-Provided Requirements

    Prepare a computer for firmware flashing and serial debugging, a USB-C cable and suitable power, and soldering tools for the supplied headers. Check the flashing instructions for the connection cable required by your upgrade method.

    Applications

    • IoT developers
    • Embedded AI developers
    • Makers and educators
    • System integrators
    • Sensor fusion prototyping
    • Smart building and industrial monitoring evaluation
    • NE301 application development

    Order Notice

    NE301 Sensor Expansion Kit: Firmware Upgrade Required

    Firmware upgrade required: You must upgrade your NE301 firmware yourself before using this kit. Use the dedicated SensorExt firmware ne301_Main_WiFi_SensorExt_20260918 from the v4.3.1 release. An ST-LINK programmer is included with the kit to help you complete the upgrade.

    SensorExt firmware supports onboard Wi-Fi, but does not support HaLow networking. Read the release-specific upgrade instructions before upgrading.

    NE301 Sensor Expansion Kit Specifications

    Item Specification
    Product NE301 Sensor Expansion Kit; accessory hardware evaluation kit
    SKU 76.002.000003
    Host NE301 mainboard required; not included
    Required firmware ne301_Main_WiFi_SensorExt_20260918; customer must upgrade device firmware
    Programmer ST-LINK included with the kit
    Wireless limitation SensorExt firmware supports onboard Wi-Fi; no HaLow support
    Enclosure Expansion assembly does not fit the standard NE301 outdoor enclosure
    NE101 support Hardware compatibility; sensor firmware under development; requires adaptation

    Sensors and Audio

    Sensor / module Capability and integration
    SHT3x Temperature and humidity; I2C 0x44; driver example available
    LTR-31x Visible and IR ambient light; 16-bit; I2C 0x22; driver example available
    LSM6DSR 6-axis accelerometer and gyroscope; I2C 0x6A; driver example available
    VL53L1X Short-range ToF; up to 1.3 m in short mode / 4 m in long mode; I2C 0x29
    DTS6012M Long-range d-ToF; nominal 18 m, 12 m at 160 klux; FOV <2°; I2C 0x51
    MLX90642 32 × 24 thermal array; included wide-angle module: 110° × 75°; I2C 0x66; thermal demo available
    NP624M-F PIR motion detection; digital I/O
    RKB1161LX1 24 GHz presence radar; UART; driver under development

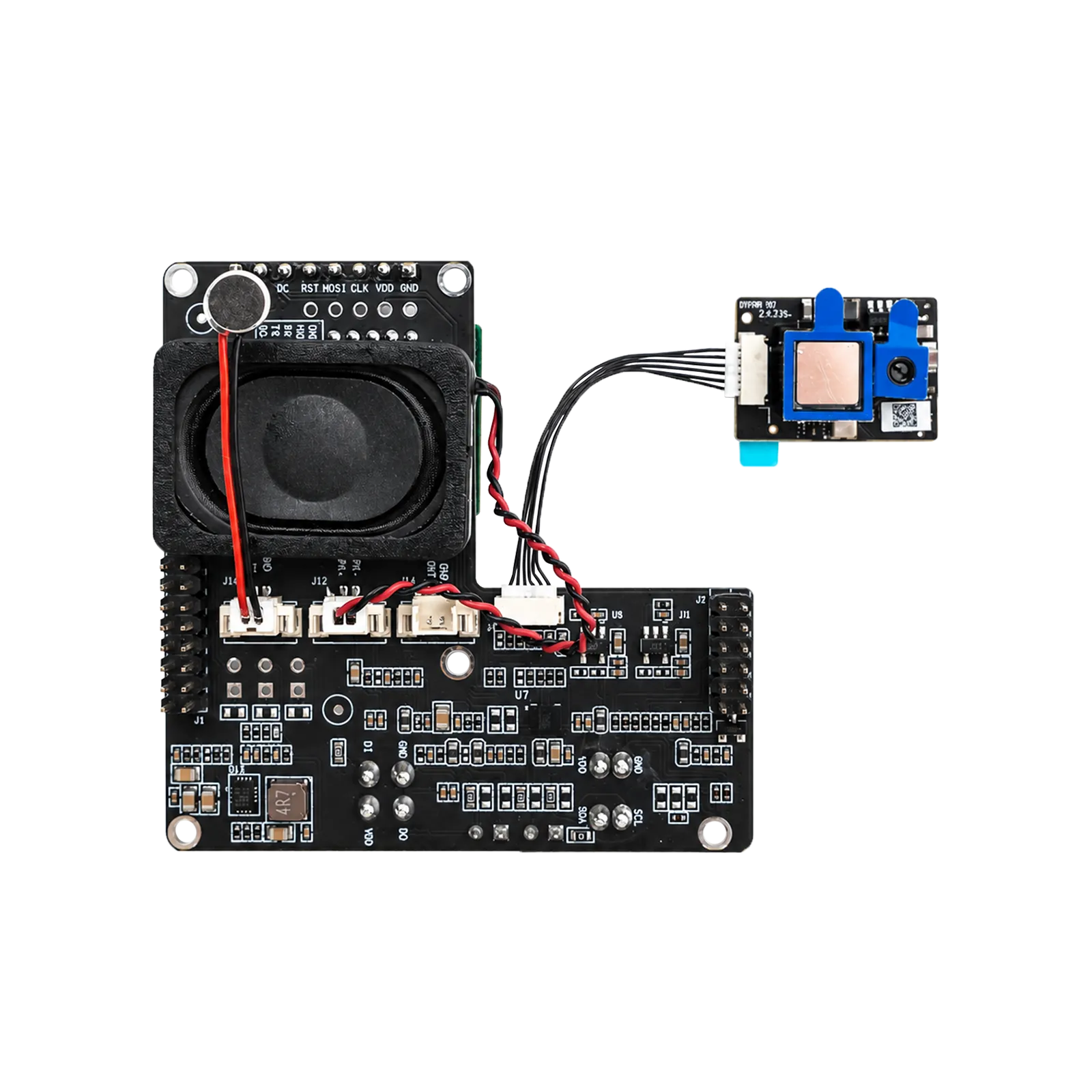

    Audio hardware External microphone and 8 Ω, 1.5 W speaker; board audio configuration required

    Distance limits depend on the sensor mode and operating conditions; nominal range is not a guaranteed range in every installation.

    Included Displays

    Display Interface, resolution and support
    1.54-inch IPS TFT SPI; 240 × 240; reference demo driver for sensor overlay and thermal rendering
    1.14-inch IPS TFT SPI; 135 × 240; developer adaptation required
    0.96-inch OLED I2C, 4-pin; 128 × 64; developer adaptation required

    Radar and display pin headers require customer soldering. The kit includes an ST-LINK programmer; the customer must install the dedicated SensorExt firmware before use.
